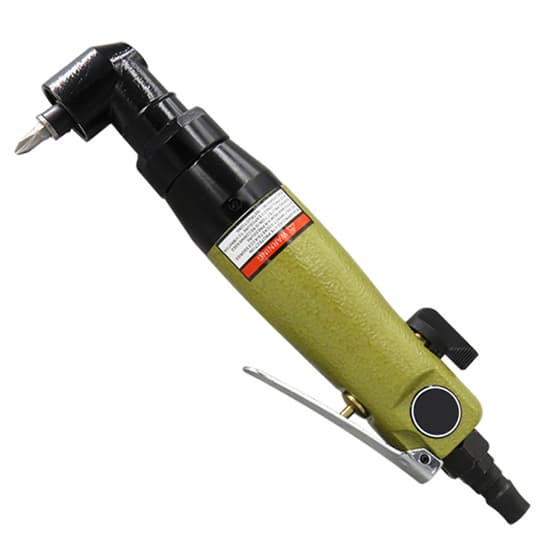

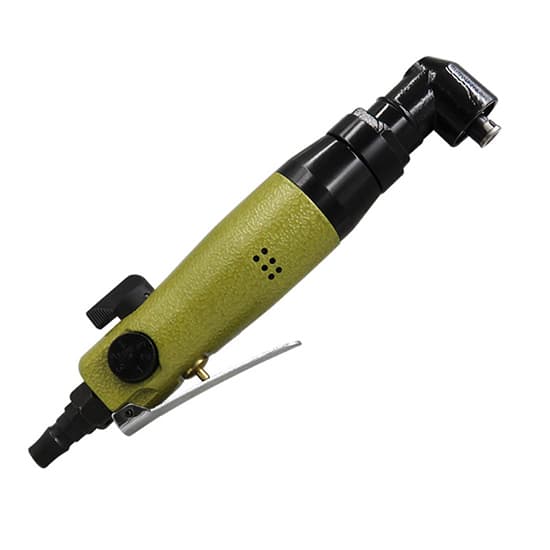

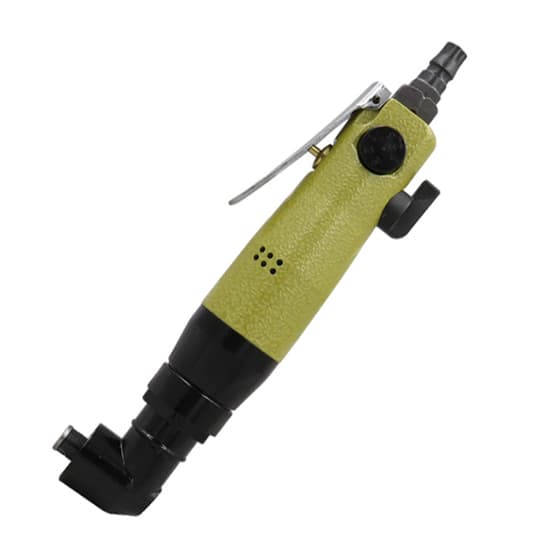

30Nm Right Angle Air Screwdriver, 1/4″, 8000rpm
Original price was: $134.62.$40.99Current price is: $40.99.
Size chart
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
35
People watching this product now!
Description
30Nm torque, 8000rpm no load speed pneumatic screwdriver air tool at wholesale price, best for tightening and loosening screws and nuts. 1/4 inch air inlet, 90 degree right angle air screwdriver widely used in furniture assembly, home decoration, electromechanical assembly, door and window production, etc.
Specification
| Model | T-KP-805L |
| Type | 90 degree right angle air screwdriver |
| Max Torque | 30Nm |
| No Load Speed | 8000rpm |
| Air Inlet | 1/4″ |
| Collet Size | 1/4″ |
| Capacity Bolt | 4-6mm |
| Air Hose Inner | 6.5mm |
| Working Pressure | 90 psi |
| Average Air Consumption | 0.25m3/min |
| Overall Length | 245mm |
| Weight | 1.3kg |
| Packing Included | 1 * Air Screwdriver 2 * Mini Screwdriver Bits 1 * Hook as picture show |
Details
7 tips should know when using 30Nm right angle air screwdriver
- Before using 30Nm pneumatic screwdriver, determine the rotation direction, torque, and speed, and do not adjust during the rotation.
- Do not touch the screwdriver bit with hard objects during use.
- The air screwdriver should be handled gently during use, and avoid collision.
- Be careful when replacing the screwdriver bits and do not damage other mechanical parts.
- When using, do not overload, do not idle at high speed to prevent premature wear of the screwdriver.
- Lubricating oil must be injected from the inner hole of the pipe 3 to 4 times per shift. No. 20 oil can be used in summer and No. 10 oil in winter.
- Regular inspection and maintenance to keep the surface of the pneumatic screwdriver clean.
