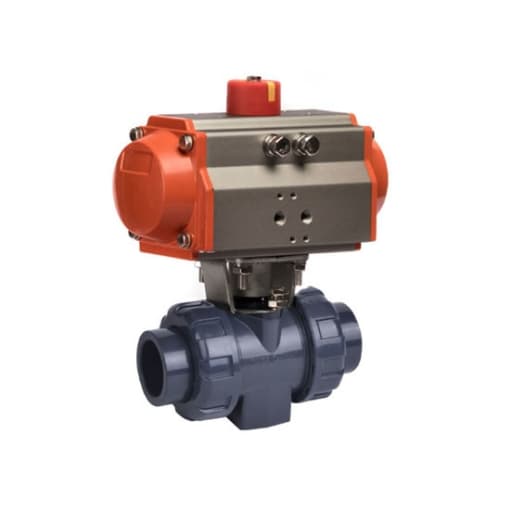

Name: 4" Pneumatic Actuated PVC Ball Valve, 2 Way
Brand: Tool
SKU: 1256
Availability: InStock

4″ Pneumatic Actuated PVC Ball Valve, 2 Way

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

21 People watching this product now!

Note: This ball valve cannot be used for drinking water.

Favorable price industrial 4 in. 2 way union air actuated PVC ball valve with pneumatic actuator for sale. Compact full port pneumatic plastic ball valve has such advantages as small fluid resistance, simple structure, small in size and light in weight. Our full port ball valve is made from high performance PVC material, allowing it to service different medium from low to high temperature. It is widely used for water, oxygen, gas, nitrogen gas, gasoline and other air and fluid control.

Specification

Ball Valve	Model	T-Q691X-10U-DN100
	Ball Valve Type	2 Way PVC True Union Type
	Port Size	4 inch (DN100, 100mm)
	Environment Temperature	-10℃ to 60℃
	Medium Temperature	-10℃ to 180℃
	Medium Pressure	1.6MPa
	Seat Material	Plastic (PTFE)
	Body Material	PVC
Pneumatic Actuator	Model	T-AT100D
	Bore Size	100mm
	Air Supply Port	1/4 inch
	Power Source	Compressed Air
	Actuator Type	Double Acting
	Air Pressure	0.3 ~ 0.8MPa
	Actuator Body Material	Aluminum Alloy

Pneumatic Actuator Dimension

Q: Φ70/Φ102mm
A: 268mm
B: 120mm
C: 55mm
D: 65mm
E: 157mm
F: 125mm
G: 30mm
H: 80mm
I: PF
J: M6
K: 1/4″
O: 20mm
P: 40.5mm
S: 4mm
T: 4mm
U: 12mm
V: 24mm
W: 16mm
X: 32mm

Body Dimension

Tips: What are the application of 4 inch pneumatic PVC ball valve?

This 4-inch pneumatic 2-way PVC ball valve is widely used in chemical, wastewater treatment, irrigation systems and food processing industries. Due to the excellent corrosion resistance of the PVC material, the ball valve is ideal for conveying acidic and alkaline liquids and chemical media. In addition, the pneumatic actuator ensures that the valve can be opened and closed quickly and automatically, making it suitable for environments that require high-frequency operation or automated control.
