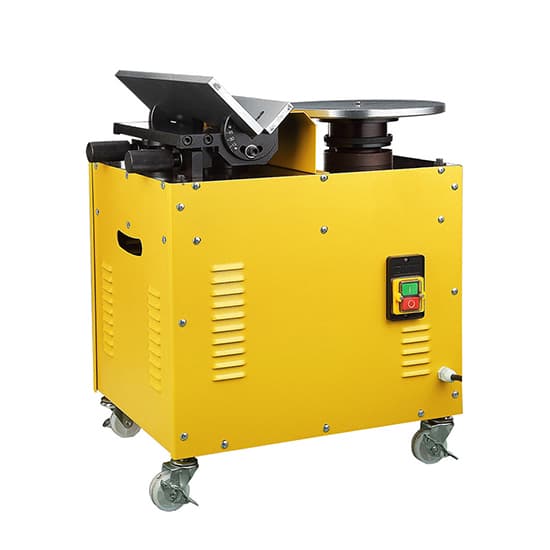

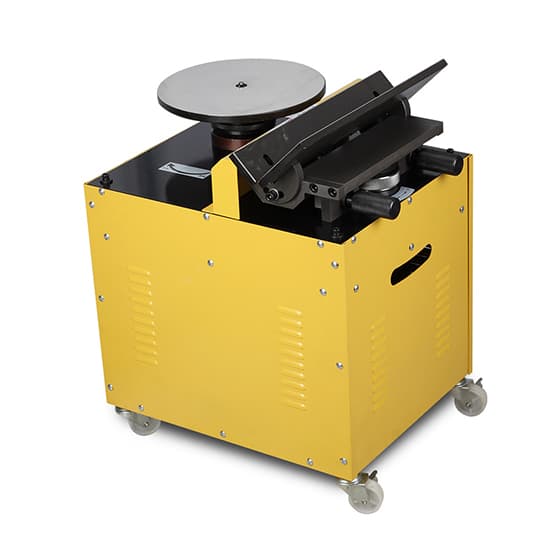

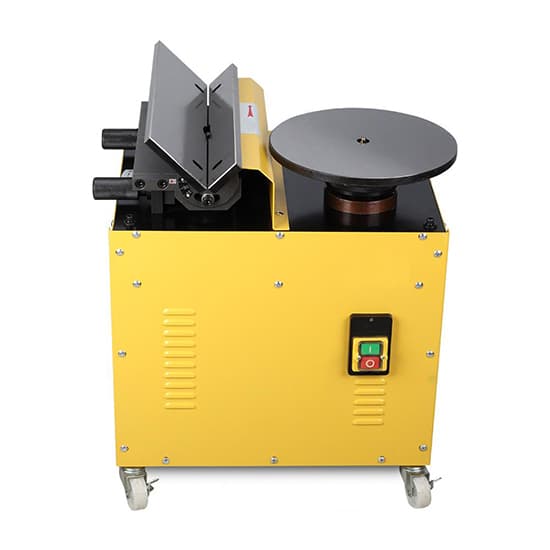

45° Deburring/Chamfering Machine, Straight/Curve
Original price was: $2,304.77.$230.99Current price is: $230.99.
Size chart
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
53
People watching this product now!
Description
The deburring/chamfering machine can chamfer and deburr straight edges and curves (outer circle, inner hole, waist hole) of products. It can replace the CNC machining center to process parts that cannot be processed by ordinary chamfering tools.
Specification
| Model | T-CFM-R800B | |
| Chamfering Range | Straight | Curve |
| 0~3mm | 0~2.5mm | |
| Chamfering Angle | Straight | Curve |
| 15°~45° | 15°~45° | |
| Speed | Straight | Curve |
| 8500rpm | 12000rpm | |
| Rated Voltage | 380V | |
| Motor Power | 750W | |
| Dimension | 53*44*69CM | |
| Warranty | 1 year | |
| Weight | 68 kg | |
Features
- Deburring/chamfering machine can be used with different types of milling cutters, to chamfer metal parts of different materials. Blade replacement uses a special wrench, simple and convenient to operate.
- Chamfer size of straight part can be adjusted steplessly within the range of 0~3mm, and angle can be adjusted from 15° to 45°.
- Applicable materials for the deburring/chamfering machine are carbon steel, stainless steel, aluminum alloy, powder metallurgy, etc.
Chamfering Effect
Structure Diagram of Straight/Curve Deburring/Chamfering Machine
Applicable Materials
Accessories
Tips: Precautions for using straight/curve chamfering machine.
- During operation, it is strictly forbidden to disassemble or adjust the deburring/chamfering machine, let alone touch the rotating tool axis with your hands.
- The straight/curve chamfering machine uses 380V power supply with grounding protection device. When repairing and maintaining electrical components and circuits, must cut off power and operate it by professionals.
- It is strictly forbidden for the workpiece to collide with workbench, and do not start under load. In chamfering process, workpiece should rotate smoothly and uniformly in strict accordance with the specified moving direction. The size of workpiece should ensure that it can be controlled by hand and not fall into workbench notch.
