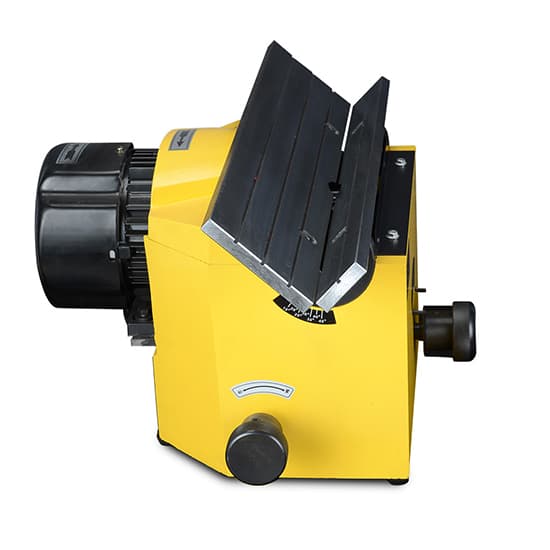

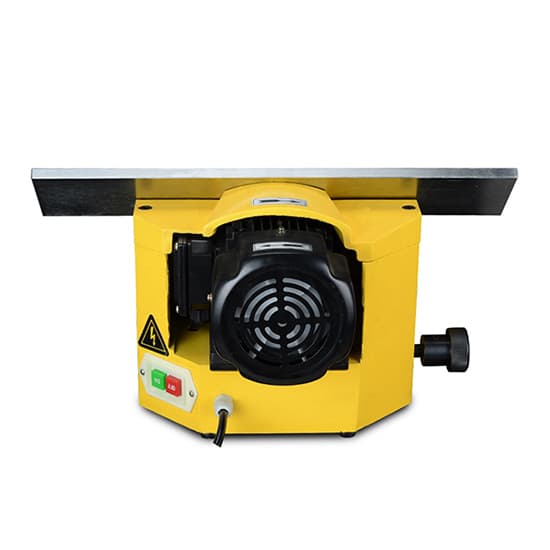

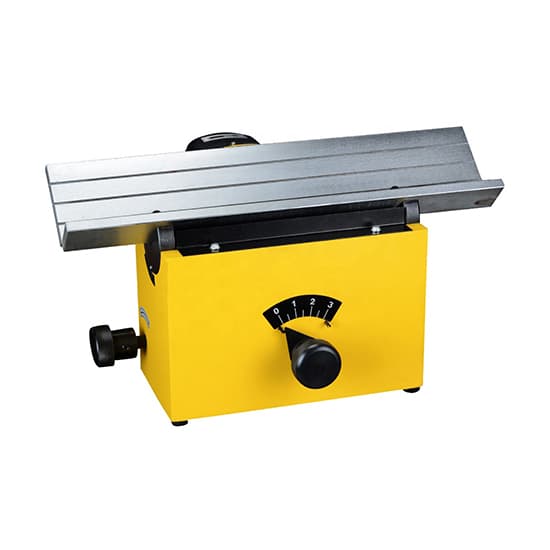

The deburring/chamfering machine uses side milling cutter for cutting, and the cemented carbide (tungsten steel) square blade is easy to replace. It is also possible to use old blades used by milling machines. Maximum chamfering angle is 45°.

Specification

Model	T-CFM-R300	T-CFM-R300D
Chamfering Range	0~3 mm	R1-R4/C3
Chamfering Angle	15°~45°	15°~45°
Rated Voltage	380V	380V
Motor Power	550W	550W
Speed	2800rpm	3000~6000rpm
Dimension	53.538.530cm	403022cm
Warranty	1 year	1 year
Weight	38 kg	27 kg

Features

Deburring/chamfering machine is suitable for batch processing of unheated workpieces, such as various molds and mechanical parts. Precise chamfering and good surface roughness.
No clamping, simple operation, regular chamfering, economical and reliable, and greatly improve efficiency.

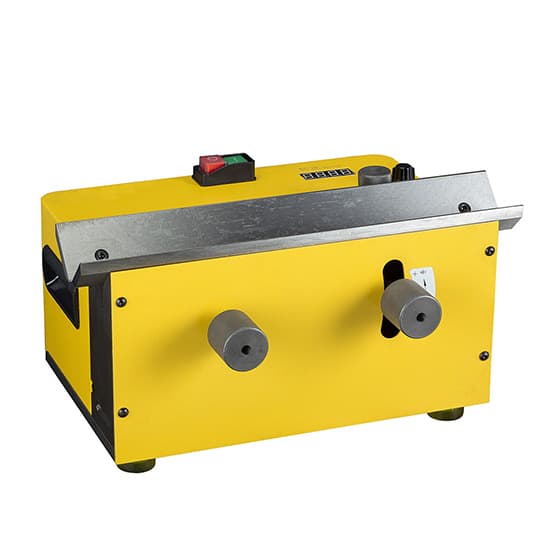

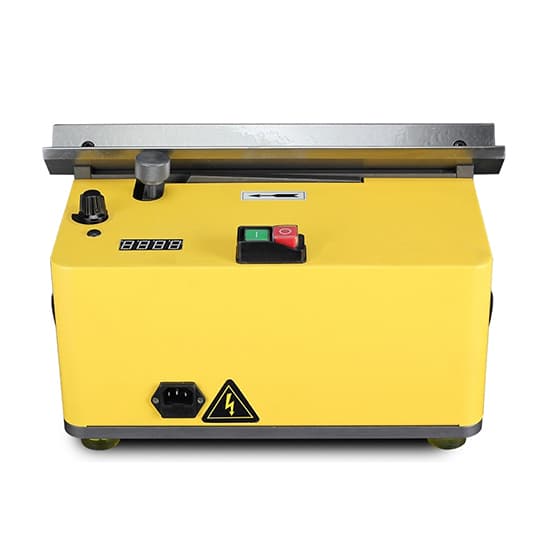

The deburring/chamfering machine model T-CFM-R300D can chamfer the R angle and C angle.

Chamfering Effect Diagram

Structure Diagram of Deburring/Chamfering Machine with Mill Cutter

ATO-CFM-R300

ATO-CFM-R300D

Accessories

Tips: What is a chamfering machine?

Chamfering machine is a small precision machine tool specially used for chamfering. It can also used in deburring for the products processed by milling and planing. Chamfering machines are commonly used in mold manufacturing, hardware machinery, machine tool manufacturing, hydraulic parts, valve manufacturing, textile machinery and other industries.

Chamfering machine solves the problems of irregular angle, rough slope, and loud noise in the operation process of flame cutting, grinder grinding, etc. It has the advantages of simple operation, standard angle and smooth surface. Chamfering machine is currently the best choice for chamfering and cutting metal workpiece.
