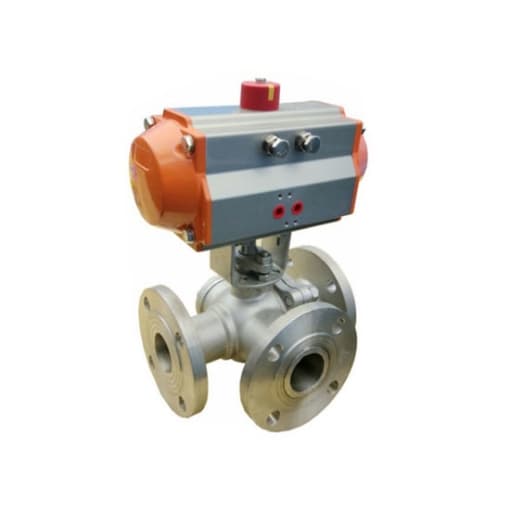

Name: 5" Pneumatic Actuated Flanged Ball Valve, 3 Way
Brand: Tool
SKU: 1257
Availability: InStock

5″ Pneumatic Actuated Flanged Ball Valve, 3 Way

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

73 People watching this product now!

Note: This ball valve cannot be used for drinking water.

3 Way flanged type ball valve with pneumatic actuator requires compressed air to work, which has such advantages as small fluid resistance, simple structure, high performance and reliable sealing. It has been widely used in petroleum, chemical industry, power generation, paper making, atomic energy, aviation, rocket and other sectors, as well as daily life.

Specification

Ball Valve	Model	T-Q644F-16P-DN125	T-Q644F-16P-DN125
	Ball Valve Type (Optional)	3 Way Flanged Type, L Port	3 Way Flanged Type, T Port
	Port Size	5 inch (DN125, 125mm)
	Environment Temperature	-10℃ to 60℃
	Medium Temperature	-10℃ to 180℃
	Medium Pressure	1.6MPa
	Seat Material	Plastic (PTFE)
	Body Material	Stainless Steel (SS 304)
Pneumatic Actuator	Model	ATO-AT160D	ATO-AT160D
	Bore Size	160mm	160mm
	Air Supply Port	1/4 inch	1/4 inch
	Power Source	Compressed Air
	Actuator Type	Double Acting
	Air Pressure	0.3 ~ 0.8MPa
	Actuator Body Material	Aluminum Alloy

Pneumatic Actuator Dimension

Q: Φ102/Φ125mm
A: 450mm
B: 193mm
C: 89mm
D: 104mm
E: 226mm
F: 197mm
G: 30mm
H: 80mm
I: PF
J: M6
K: 1/4″
O: 30mm
P: 80mm
S: 4mm
T: 4mm
U: 12mm
V: 24mm
W: 16mm
X: 32mm

Body Dimension

Three Way Ball Valve Flow Patterns

T Port:

L Port:

Tips: How to Use Pneumatic Flanged Ball Valve?

1. Remove the protective cover on both sides of the flange end and clean the ball valve when it is fully open.
2. Before installation, the pneumatic actuator and ball valve should be tested according to the specified requirement. It can be installed after the test passing.
3. Flush and remove all the remaining impurities from the pipe before you connect with it. Those impurities will damage the valve seat and ball.
4. During installation, please don’t use the pneumatic actuator as the lifting point to avoid the actuator and accessories damage.
5. The air actuated ball valve should be installed in the horizontal or vertical direction of the pipeline.
6. The pipeline should not sag or bear external forces. Pipe supports or supports can be used to eliminate the deviation of the pipeline.
7. After connecting with the pipe, cross lock the flange connection bolt with the specified torque.
