Name: 5 Ton Automotive Floor Jack, Low Profile
Brand: Tool
SKU: 998
Availability: InStock

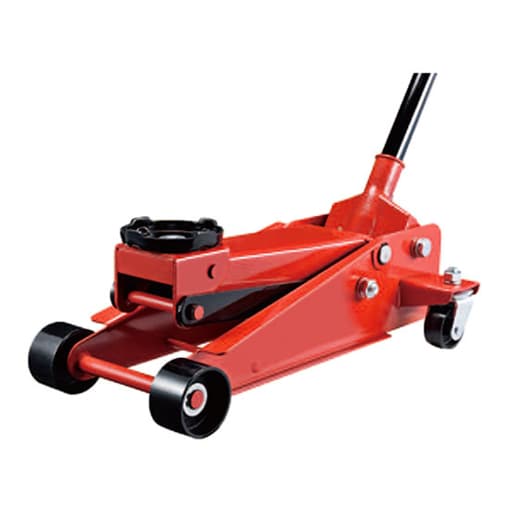

5 Ton Automotive Floor Jack, Low Profile

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

19 People watching this product now!

5 ton automotive floor jack, low profile structure, hydraulic principle, 418mm lift height, CE/ GS/ TUV certification.

Specification:

Model	T-FLJ-YP1205
Weight	45kg
Packing included	1 * floor jack 1 * safety bar 1 * tool box
Certification	CE, GS, TUV
Maximum capacity (car weight)	5 ton
Minimum height	102mm
Maximum height	520mm
Lift height	418mm

Tips: Floor jack troubleshooting

There is vibration or the lifting speed is slow when the floor jack is lifting.
The handle automatically rises or falls when the jack is supporting the car.
The jack head slowly drops when the floor jack is supporting the car.

Solution of double pump floor jack:
Pull out the double pump piston spring, unscrew the piston bolt, and take out the bottom retaining ring, take out two sealing steel balls. Check whether the steel balls are in good condition. If they are damaged, replace two 5.5mm steel balls. Put new steel balls in, and use flat steel column is aligned with the steel ball and knocked with 15kg force to make the steel ball and the oil passage completely sealed, and then installs the piston.
