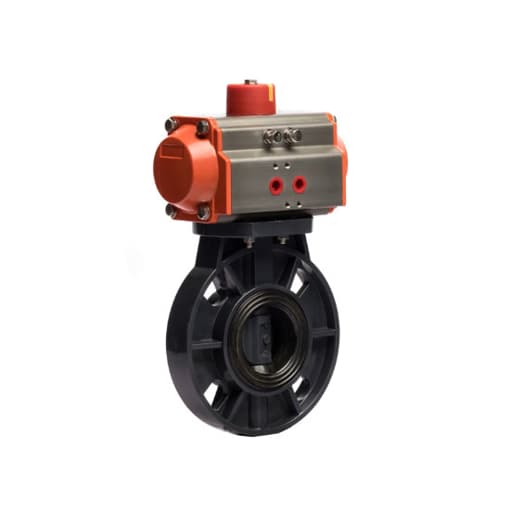

Name: 6" (DN150) Pneumatic PVC Butterfly Valve
Brand: Tool
SKU: 1265
Availability: InStock

6″ (DN150) Pneumatic PVC Butterfly Valve

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

43 People watching this product now!

Note: This butterfly valve cannot be used for drinking water.

6 inch PVC butterfly valve with pneumatic actuator for sale, comes with 150 flanged type port and UPVC disc. Our high performance air actuated butterfly valve can work at high temperature below 100 ℃, which is a reliable air tool for flow control.

Specification

Butterfly Valve	Model	T-PBV-150
	Media	Water, Air, Gas, Oil, Liquid, etc.
	Butterfly Valve Type	PVC Type
	Port Size	6 inch (DN150, 150mm)
	Body Material	Cast Iron
	Disc Material	Stainless Steel (SS)
	Seat Material	EPDM
	Working Temperature	-10 ℃ to 120 ℃
Pneumatic Actuator	Model	T-AT100D
	Actuator Type	Double Acting
	Bore Size	100mm
	Air Pressure	0.25 – 0.8MPa, PN16
	Pressure Difference	0 – 1.0MPa
	Air Supply Port	1/4 inch
	Actuator Material	Aluminum Alloy

Pneumatic Actuator Dimension

Q: Φ70/Φ102mm
A: 268mm
B: 120mm
C: 55mm
D: 65mm
E: 157mm
F: 125mm
G: 30mm
H: 80mm
I: PF
J: M6
K: 1/4″
O: 20mm
P: 40.5mm
S: 4mm
T: 4mm
U: 12mm
V: 24mm
W: 16mm
X: 32mm

Body Dimension

JIS		ANSI		DIN		D	D2	D3	H2	H3	W1	W2	d1	D4	S	H	L
D1	n-φe	D1	n-φe	D1	n-φe
240	8-23	241.5	8-23	240	8-18	287	152	169	177	19	70	54	10.5	102	22	360	268

Tips: Why Choose Pneumatic PVC Butterfly Valve at Tool.com?

1. Pneumatic PVC butterfly valve has such advantages as simple structure, small volume, light weight, low material consumption, small installation size, and 90° reciprocating rotation small driving torque. It used to cut off, turn on and adjust the medium in the pipeline, which has good flow control and sealing performance.
2. Our air actuated butterfly valve can transport not only air, water and oil, but also the mud, leaving minimal fluid at the pipe opening. It can achieve good sealing and good adjustment performance under the low pressure.
3. The butterfly disc is designed for flow line, so that the fluid resistance loss is small. The pneumatic butterfly valve can be said to be an energy-saving product.
4. The stem of the pneumatic butterfly valve is the through rod structure that has a good comprehensive mechanical properties, corrosion resistance and abrasion resistance. When the pneumatic butterfly valve is opened and closed, the stem only rotates and does not move up and down, so the seal is reliable.
5. Pneumatic butterfly valve connection mode has flanged type connection, wafer type connection and lug type connection. And the body material has PVC, stainless steel and cast iron. Our air butterfly valve driven by a pneumatic actuator, which can realize remote control and automatic operation.
