Name: 60W/100W Dual Temperature Hot Melt Glue Gun
Brand: Tool
SKU: 324
Availability: InStock

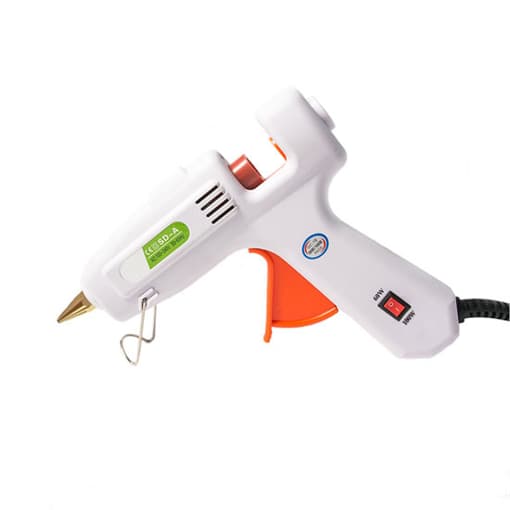

60W/100W Dual Temperature Hot Melt Glue Gun

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

77 People watching this product now!

The dual temperature hot melt glue gun for 11mm sticks is a fastening tool with precise cutting effect and unique filter design, which is easy to be cleaned. It is widely used in the field of hot melt adhesive products, such as electronics factory, food factory, packaging factory, etc.

Specification

Model	T-HMGG-160
Color	Blue/White
Size	19*16cm
Net Weight	350g
Nozzle Caliber	2.5mm
Nozzle Material	Copper
Length of Nozzle	2.5cm
Length of Wire	98cm
Glue Sticks Diameter	11mm
Rated Power	60W/100W
Voltage	100-240V
Spit Frequency	60 times/min
Warm-up Time	3-5min

Features

1. The dual temperature hot melt glun gun has high quality PTC thermal sensor, constant temperature, high efficiency and energy saving.
2. Imported fluorine rubber is not easy to pour and leak.
3. Built-in fuse, insulated and insulated housing, more comfortable to use.
4. Ergonomic design trigger, comfortable grip, more convenient operation.
5. 60/100W dual temperature hot melt glue gun is light and compact, high heating efficiency, which is practical and convenient.
6. Built-in insurance pipe and wrapped in a heat shrinkable pipe, when the hot glue gun occurs accidental short-circuit, the insurance pipe will be disconnected naturally without combustion.

Applications

Tips: How to Select a Hot Glue Stick?
1. The color of a hot glue stick. If there is a no special requirement for color, it is recommended using a yellow hot melt stick because the yellow hot melt stick is better than white commonly.
2. Surface treatment of adhesive objects. If there are dust and oil contamination on the surface of adhesive objects, it will influence the adhesive effect of hot glue sticks even though. It is better to clean the surface of objects when you bond then.
3. Working time. Generally, the working time of a hot glue stick is 15 seconds, but different assembly lines have different requires, for example, book binding and speaker manufacturing require about 5 seconds for a hot melt adhesive.
4. Temperature resistance. Hot glue sticks are sensitive to temperature. When the temperature reaches a certain level, the hot glue stick begins to soften. Below a certain temperature, the hot glue stick becomes brittle. Therefore, the temperature change of the environment where the product is selected must be fully considered when selecting the hot glue sticks.
5. Viscosity. The stickiness of a hot glue stick is divided into early viscosity and late viscosity. Only when the early viscosity is consistent with the late viscosity can the hot melt adhesive and the objects remain stable. The hot glue stick plays a different adhesive because the materials of adhesive products are different. Therefore, you should choose a suitable hot glue stick according to different materials.
