Name: Clamp-On Bench Vise, 2-1/2 inch/3 inch
Brand: Tool
SKU: 277
Availability: InStock

Clamp-On Bench Vise, 2-1/2 inch/3 inch

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

49 People watching this product now!

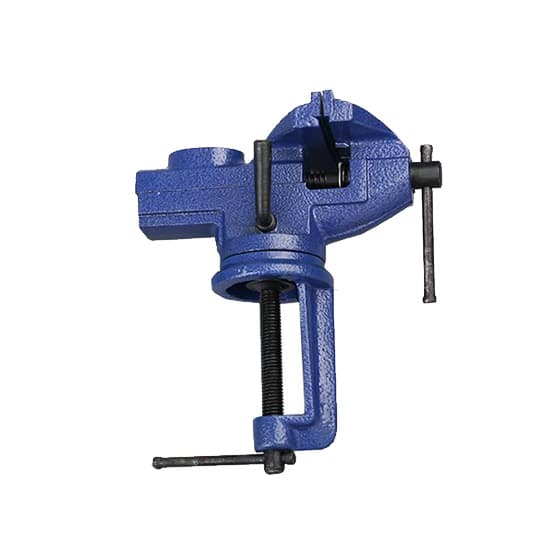

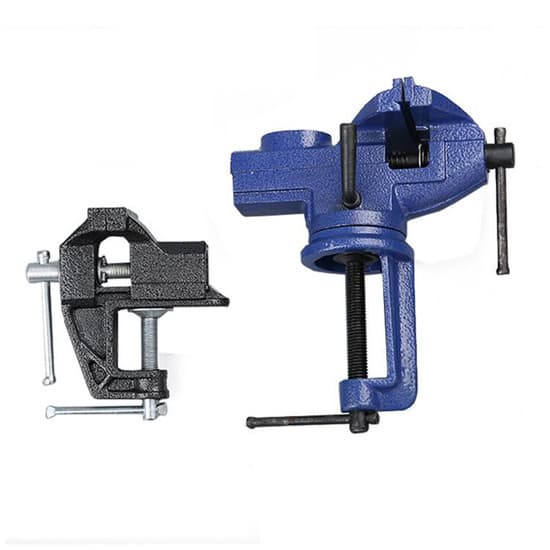

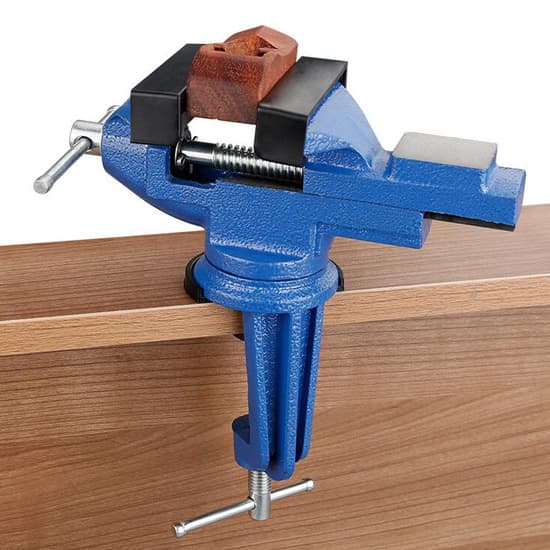

Light and portable clamp-on vises includes many sizes, 50mm jaw width with 62mm (2-1/2 inch) jaw opening, and 60mm/70mm/80mm jaw width with 75mm (3 inch) jaw opening, and can clamp on the table up to 68mm thick. Clamp-on bench vises are made from quality cast iron, high-strength and corrosion resistant, and rotates 360 degree on its base, ideal for holding small parts in the woodworking, DIY or Hobby, etc.

Specification

Model	T-THQ-50	T-THQ-60	T-THQ-70	T-THQ-80
Material	Cast Iron
Color	Blue / black (random delivery)
Jaw Opening	62mm (2-1/2″)	75mm (3″)	75mm (3″)	75mm (3″)
Jaw Width	50mm	60mm	70mm	80mm
Clamp Opening	68mm	68mm	68mm	68mm
Anvil	28*38mm	32*40mm	32*40mm	32*40mm
Weight	1.56kg	1.66kg	1.7kg	1.73kg

Note: The sizes are approximate.

Dimension Drawing

Tips: Clamp on bench vise introduction

Clamp-on bench vise is very common type of bench vise, used for wood, plastic and light metal processing. As a kind of light-duty bench vise, the structure of clamp on bench vise is basically similar to that of a fixed-base bench vise, except that its jaw is small and a screw clamping device is provided under the fixed jaw. This kind of bench vise is characterized by easy installation, easy to move and carry, and it is mostly used in occasions with high working fluidity and small workpieces. The clamp-on bench vice usually have smooth jaws, but some have serrated jaws for better grip work piece. There are also some special clamp-on bench vice with a rotating design.
