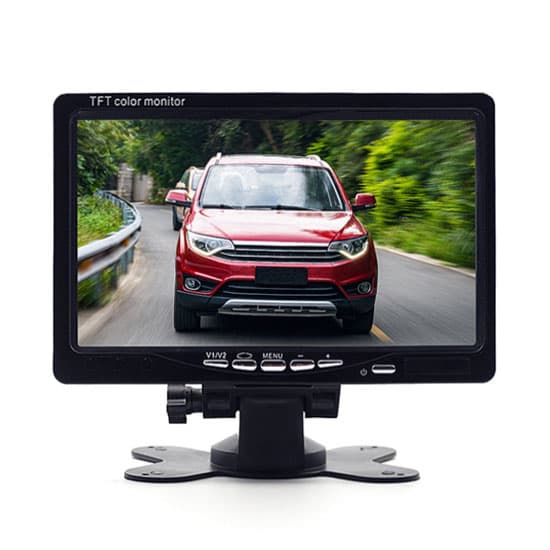

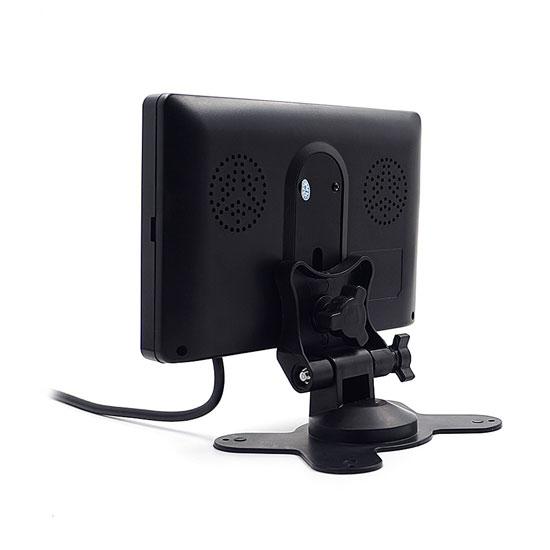

7 inch dash cam monitor is special designed for the vehicles that haven’t a reversing display but need install dash cam. It equips a headrest bracket, a vertical bracket and a remote control. The installation method is more flexible.

Specification:

Model	T-TS7018-C
Gross weight	0.8kg
Box size	21515085mm
Display	7 inch TFT color digital monitor
Display size	172*112mm
Display mode	16:9
Resolution	RGB 800*480P
Brightness	300cd/m²
Working voltage	12~24VDC
Rated power	7W
TV standard	NTSC/PAL
Input	2 channel RCA inputs
Operating mode	Keys operation and remote control
Color	Black
Applicable vehicle	Bus, truck, excavator
Certification	CE
Warranty	12 months

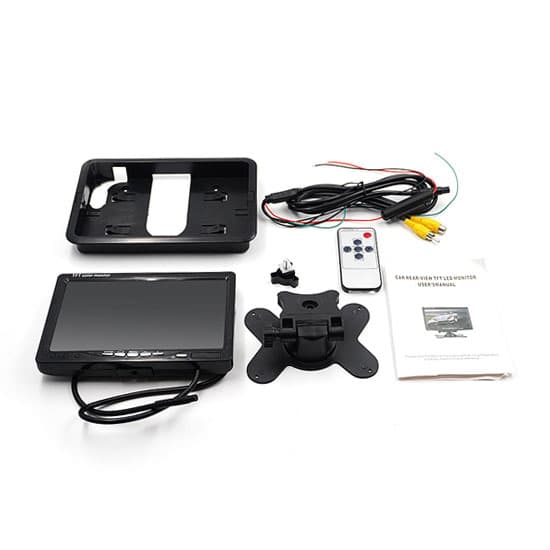

Packing included	1 * 7″ TFT color monitor 1 * remote control 1 * headrest bracket 1 * vertical bracket 1 * video input cable 1 * user manual 1 * color box

Tips: How to install 360 dash cam with external monitor?

First confirm the installation location of each camera and wiring.
Confirm the location of the host, and try to face the host panel to a location convenient for remote control.
Confirm the placement of the monitor:
The dash cam monitor can be placed in the blank of the center console panel.
It can be placed on the instrument desk with a vertical bracket.
Monitor can be stick at the rearview mirror of the vehicle.
First, lay out the video extension cable. It can be placed and tied together with the original car cable.
Arrange the dash cam monitor. Remove the monitor bracket first, fix the bottom bracket, and then install the monitor on the bracket.
Connect the power cables of the vehicle video recorder and the vehicle monitor. Use an automotive voltage tester to confirm whether the voltages of the power cables are correct. Plug the power cable of the monitor and the host, and turn on the power.
Wait for the booting completed and enter the 4-in-1 monitoring interface. After plugging in each camera power cable, adjust the position and angle of the camera, and then fix all the cameras.
Finally, complete all display parameter settings and operation debugging according to the user manual.
