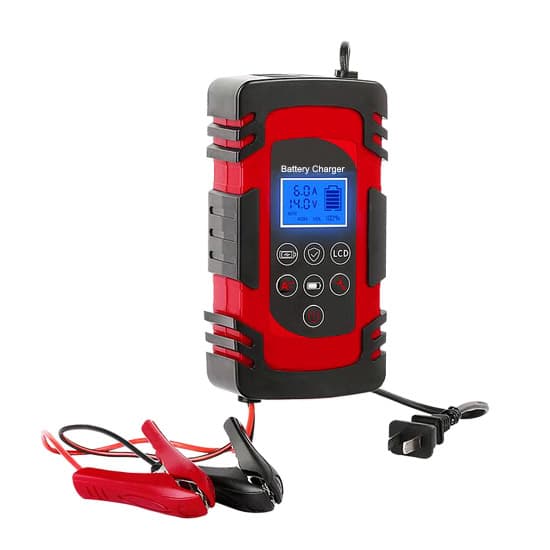

8 amp automotive battery charger adopts smart temperature controlled fan, fully wrapped crocodile clips, pure copper tin-plated core wire and pure copper high-frequency transformer. It can recharge and maintain 12 volt/24 volt lead-acid batteries idled for a long time or with poor starting ability, and extend battery life.

Specification:

Model	T-DC-80
Shipping weight	0.5kg
Size (LWH)	1708860mm
Display	LCD display with backlight shows battery current/ voltage/ level, battery type and recognition mode.
Applicable battery	4Ah~100Ah 12VDC/24VDC lead-acid batteries, including AGM, GEL, dry-charged battery, maintenance-free battery. Note: Lithium battery is forbidden.
Input voltage	AC 110V~220V ± 20V
Input frequency	50Hz/60Hz
Output voltage	DC 14.8V/29.6V ± 0.3V
Output current	4A-6A-8A (12V), 4A (24V) Note: Current can be manually selected or automatically charged at the default current value.
Peak power	100W
Transformer coil material	Pure copper
Efficiency	85%

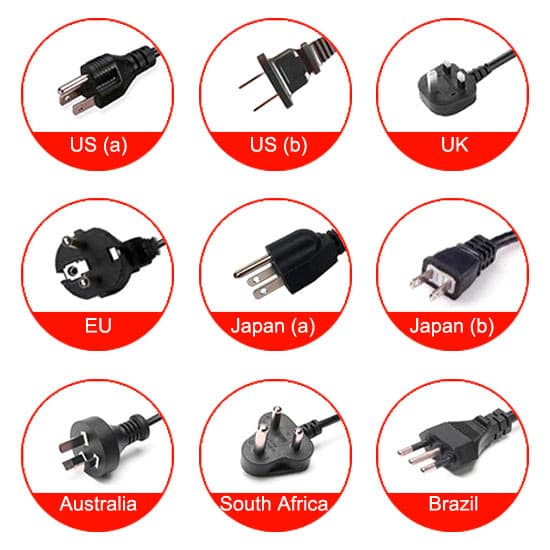

Types of power plug *	US, EU, UK, Germany, Australia, Japan, South Africa, Brazil, or other customized plugs.
Input cable length	100cm
Output cable length	60cm
Charging function	Constant current mode, constant voltage mode and floating charge mode
Protection function	Overcharge protection, low voltage protection, overvoltage protection, reverse connection protection, short circuit protection, high-temperature protection.
Maintainer function	Apply to the batteries idled for a long time, batteries with poor starting ability and old batteries. Note: It can’t repair short-circuit batteries and open-circuit batteries. It also can’t repair a battery back to 100% new.
Certification	CE, RoHS, FCC

Charging time table:

Current	Recommended battery capacity	Charging time
4A	4Ah~40Ah	2h~15h
6A	9Ah~60Ah	2h~15h
8A	12Ah~100Ah	2h~15h

Note: The above data is for reference only, the actual charging time depends on the battery capacity and the selected charging current value.

Tips: Charging operation steps

Connect the positive and negative poles, plug in the power supply, wait for about 3 seconds, the LCD screen will brighten and enter the standby mode.
According to the battery capacity, select the required charging current and press the ON/OFF key to start charging.
Long press for 5 seconds, see the snowflake mark, turn on smart repair function, and activate the battery.
