Name: 8 Line Rotary Green Laser Level
Brand: Tool
SKU: 1478
Availability: InStock

8 Line Rotary Green Laser Level

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

16 People watching this product now!

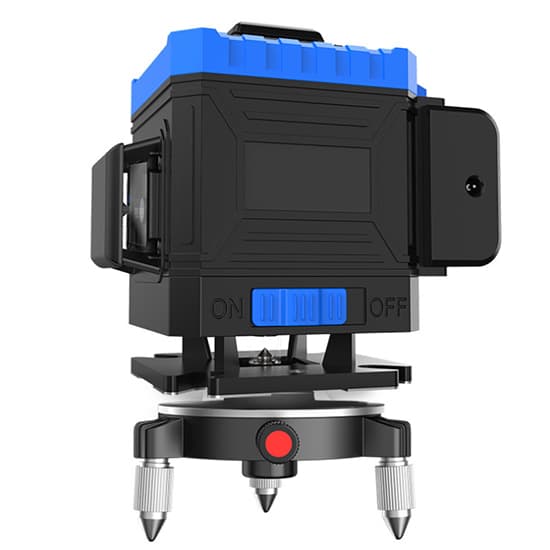

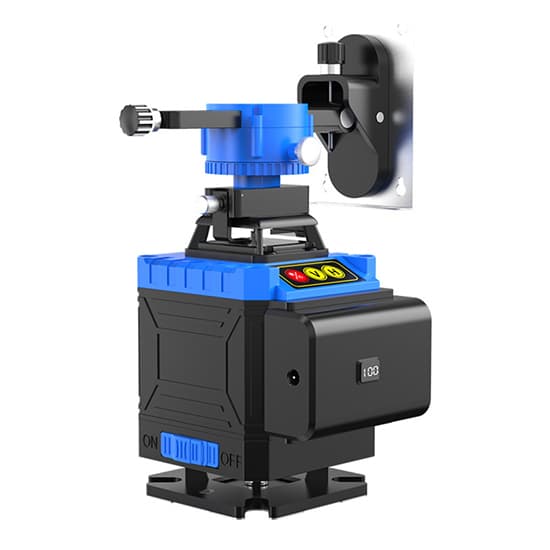

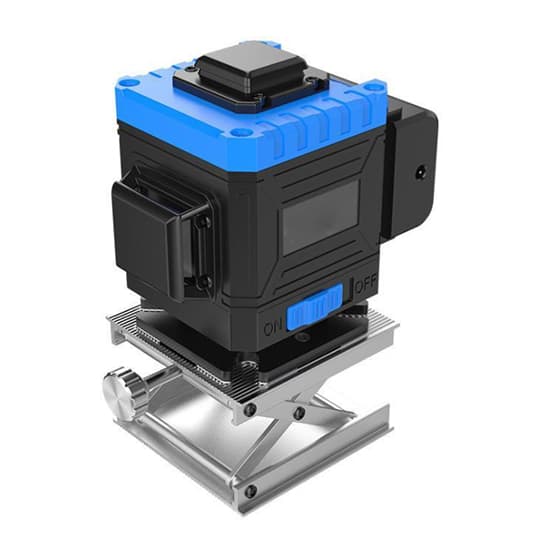

8 lines green laser level for sale, 4 360-degree vertical line and 4 360-degree horizontal line cover the floor, wall, ceiling all around the room. The laser level measuring tool can be tilted self-leveling within ± 3 °, mounted on a tripod or attached to most metal surfaces using magnetic brackets, allowing 360° free rotation of the laser level and projection of the laser line at any position or angle.

Specification

Model	T-SL-08
No.of Laser Lines	8
Leveling Type	4 vertical line, 4 horizontal line, 2 crossing line
Laser Wavelength	635nm
Self-Leveling Range	±3° (when angle of inclination ≤3°, laser level auto self-leveling; when angle of inclination ≥3°, buzzer alarm.)
Launch Angle	≥120°
Horizontal Accuracy	5m±1mm
Vertical Accuracy	5m±1mm
Plumb Dot Accuracy	±1mm at 1.5m
Line Width	1.5mm
Line Color	Emerald green
Power Source	Lithium battery / DC charger
Battery Type	2 x 5800mA rechargeable lithium battery (72 hours standby)
IP Rating	IP 54
Operation Temperature	-10℃~50℃
Wall Distance	7mm
Ground Distance	6mm
Function Key	Fingerprint touch buttons
Laser Head	Made in Germany
Material	Alloy body + plastic shell
Working Time	12 hours
Remote Control	Yes
Slash Mode	Yes
Application	Ceiling, home decoration, door and window installation, etc
Weight	3kg
Packing Included	1 x 8 Line Green Laser Level 2 x 5800mA Lithium Battery 1 x Power Adapter 1 x Magnetic Bracket 1 x Adjustable Lifting Platform 1 x Magnetic Pivoting Base 1 x Hand-shell Carrying Case 1 x Remote Control 1 x Conversion Screw 1 x User Manual

Details

Tips: Working principle of laser level

A laser level is a level that uses a laser beam instead of manual reading. The laser beam emitted by the laser is guided into the telescope tube to emit a horizontal laser beam along the collimation axis. Using the monochromaticity and coherence of the laser, a glass or metal sheet with a certain shading pattern can be assembled in front of the telescope objective lens, that is, a zone plate, to cause diffraction interference. After focusing by the telescope, a bright and fine cross-shaped or circular laser spot is obtained within the focusing range of the zone plate, so as to collimate the target more accurately. Equipped with photoelectric receiving targets that can automatically track on the front and rear leveling rulers, leveling can be carried out. In the construction survey and the assembly of large components, a laser level is often used to establish a horizontal plane or horizontal line.
