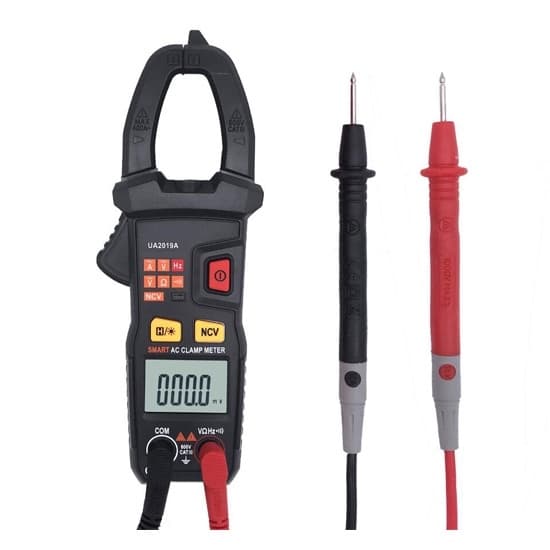

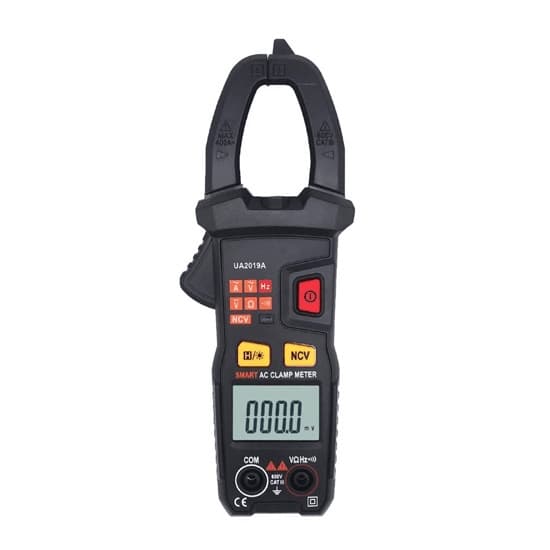

Mini Clamp Meter, Resistance/Frequency/NCV Test
Original price was: $81.99.$24.99Current price is: $24.99.
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
Mini clamp meter weighing just 0.4kg. Powered by 3 AAA batteries (DC 4.5V), this clamp meter tester is equipped with a 25mm jaw opening, making it ideal for various wire measurements. 4-digit LCD display with a maximum count of 5999, ensuring clear and accurate readings.
Specification
| Basics | Model | T-CM-UA2019A | |
| Weight | 0.4kg | ||
| Size (L*W*H) | 184*66*32.5mm | ||
| Display | 4 digit LCD display | ||
| Maximum display value | 5999 | ||
| Power supply | DC 4.5V, 3 AAA batteries | ||
| Maximum jaw opening size | 25mm | ||
| Woring environment | Temperature: 5℃~35℃ (41℉~95℉), relative humidity:＜75% | ||
| Storage temperature | -10℃~+50℃ (14℉~122℉) | ||
| Accessories | A pair of test probes, a user manual, 3 AAA batteries | ||
| Functions | Item | Range | Accuracy |
| AC current | 400A | ±(2.5%+8 digits) | |
| DC voltage | 600V | ±(1.0%+5 digits) | |
| AC voltage | 600V | ±(1.2%+5 digits) | |
| Resistance | 10MΩ | ±(1.2%+3 digits) | |
| Frequency | 1000kHz | ±(0.3%+5 digits) | |
| Special functions | NCV | Non-contact voltage test, with buzzer and indicator | |
| Diode test | Display forward voltage value of diode | ||
| On-off buzzer | Continuity test buzzer | ||
| Data hold | Hold the reading when taking a measurement | ||
| Automatic power off | Automatic power off when 15 minutes no operation | ||
| Overload protection | Overload protection for 100% range | ||
| Range selection | Automatic measuring after press the function key | ||
| Back light | Back light for LCD display | ||
| Inspection light | Inspection light for clamp operation | ||
Features
- Overload and Low Battery Indicators: Clear warnings for overload and low battery to ensure safe and uninterrupted use.
- High-Definition LCD Display: Bright and clear screen with a backlight for easy readability, even in low-light conditions.
- Multi-Function Measurements: Supports DC/AC voltage, AC current, resistance, and frequency measurements, making it versatile for various tasks.
- NCV Testing: Non-contact voltage detection with visual and audible alerts that intensify as voltage increases.
- Data Hold Function: Keeps the last measured value on the display for convenient recording and comparison.
- Continuity Buzzer: Provides an audible signal for quick and reliable continuity testing.
- Convenient Jaw Design: 25mm jaw opening allows easy clamping and measurement of wires.
- User-Friendly Test Lead Insertion: Designed for easy and convenient insertion of test leads, enhancing user efficiency.
Structure
Dimension
Tips: How does the Non-Contact Voltage (NCV) feature work?
The Non-Contact Voltage (NCV) feature in the mini clamp meter allows for safe and efficient detection of electrical voltage without direct contact. This feature works by sensing the electromagnetic field generated by live electrical wires. When the meter is brought near a wire or component carrying voltage, its built-in sensor detects the electromagnetic field, triggering a visual indicator and an audible alarm. The closer the meter is to the live wire, the stronger the signal becomes, with the alarm sound intensifying and the indicator light flashing more rapidly. This allows users to easily identify live wires and potential electrical hazards, ensuring safety during electrical inspections and troubleshooting without the need to touch the wires directly.
