23 People watching this product now!

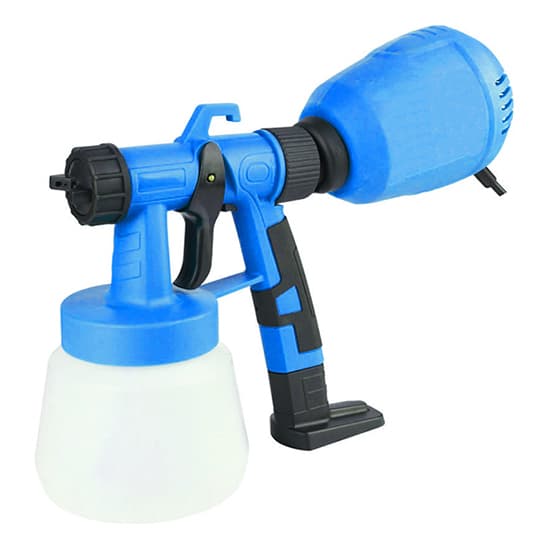

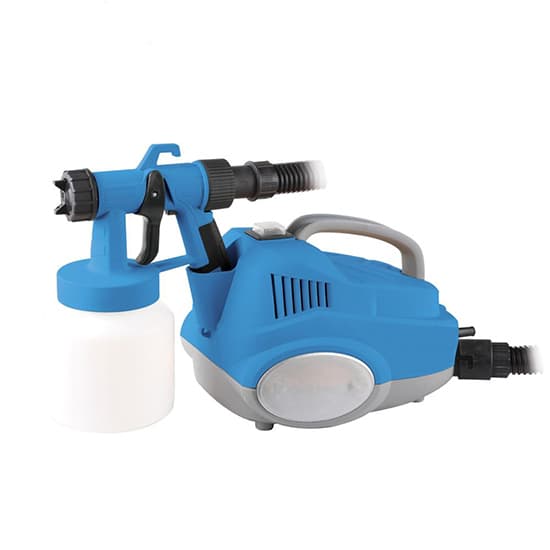

The electric paint sprayer has 800mL capacity, it is an electric spray gun for spraying oil paint, water-based paint, latex paint, wood paint, varnish, etc. It is a HVLP paint sprayer with affordable price and high efficiency.

Specification

Model	T-EP002	T-EP007
Rated Voltage	230V~240V
Frequency	50/60Hz
Input Power	600W	350W
No-Load Speed	30,000/min
Capacity	800mL
Nozzle Diameter	1.0mm/1.8mm/2.0mm/2.5mm	2.0mm/2.5mm
Air Pressure	0.1kg/cm³	0.1kg/cm³
Air Consumption	1.3m²/min	1.4m²/min
Water Consumption	16 GPH (1,000mL/min)
Accessories	side mucus funnel, pipe, belt
Weight	2kg	1kg

Electric Paint Sprayer Applications and Features

Suitable paintings of the electric paint sprayer are exterior paint, interior paint, top paint, nitro paint, polyurethane paint, polyester paint, metallic paint, varnish, etc.
Electric paint sprayer has 3 adjustable spraying shapes (horizontal, dot, vertical) to meet spraying needs of different areas and positions.
Adjustable flow rate, uniform spraying, efficient and material saving.

Electric Paint Sprayer Dimension Drawing

Model T-EP002 (600W)	Model T-EP007 (350W)

Electric Paint Sprayer Structure & Details

Model T-EP002 (600W)	Model T-EP007 (350W)

Adjustable Spraying Shape Diagram

Round dot shape: suitable for corner position with small area.
Horizontal shape: suitable for vertical position with large area.
Vertical shape: suitable for horizontal position with large area.

Nozzle Replacement Diagram

Tips: Electric paint sprayer cleaning method.

Unscrew the liquid storage tank and empty the excess spray material inside.
Pour a small amount of cleaning fluid into storage tank for cleaning. After washing, cleaning fluid should be disposed of in time to avoid environmental pollution.
Re-pour in new cleaning fluid into electric paint sprayer and spray towards a safe area for 2~5 seconds. Then spray again for 2~5 seconds. Then unscrew the storage tank and pull the trigger to spray out all the remaining liquid in spray gun.
Remove storage tank, nozzle, nut, and distribution tab, and then use a brush to clean them in a suitable washing liquid respectively.

After cleaning electric paint sprayer, spray it with clean water for about 1 minute. Do not use sharp metal objects to clean nozzles and nozzle holes. Never use silicone-containing solvents or lubricants to clean nozzles.
