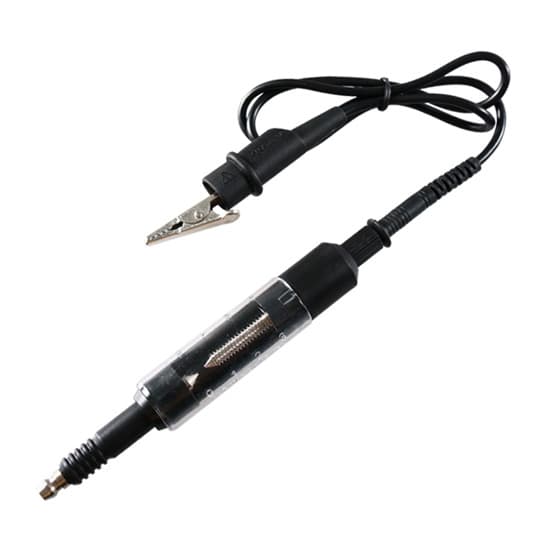

The in-line spark tester can detect and confirm whether the ignition coil or high voltage wire has been aged, cracked or damaged by simulating the combustion conditions of the spark plug in the cylinder.

Specification:

Model	T-985
Weight	106g
Packing size	20011025mm
Tester length	140mm
Power cable length	550mm
Range of adjustable distance	0-3cm
Recommended distance	1cm (engine compression ratio＜9.5:1) 1-2cm (engine compression ratio 9.5:1-10.5:1) 2.5cm (engine compression ratio 10.5:1-11.5:1)
Material	Metal, plastic

Tips: Adjustable spark tester operation steps

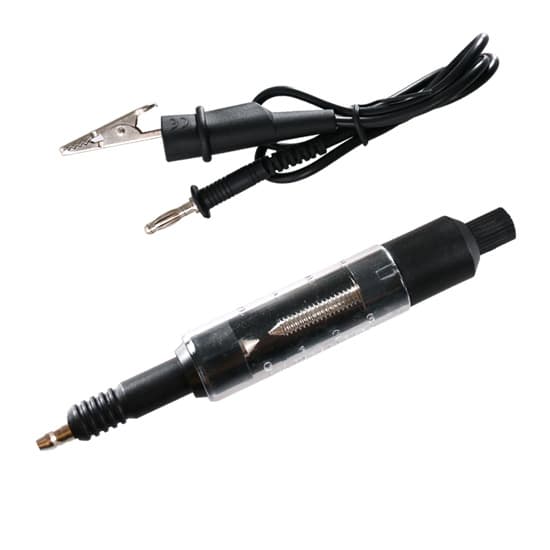

Plug in the power cable of the spark tester. Connect the metal connector to the spark plug, and connect the alligator clip to the ground terminal.
When the spark plug ignites the gasoline in the cylinder chamber, it is in a pressurized combustor. The higher the pressure, the greater the spark over impedance of the spark plug. Therefore, the spark over distance of the tester should be adjusted according to different engine compression ratios. Usually, the spark over distance of common spark plug is 0.8-1.5cm.
Confirm the test result
Judge the quality of the ignition coil should according to the color of the spark and the spark over distance:
- The normal spark is a purple-blue line with a length of 2cm and the line is regular.
- The color of abnormal spark tends to be yellow or red or the spark has an intermittent disruption.
