Name: Air Chipping Hammer, 5" Stroke
Brand: Tool
SKU: 1154
Availability: InStock

Air Chipping Hammer, 5″ Stroke

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

68 People watching this product now!

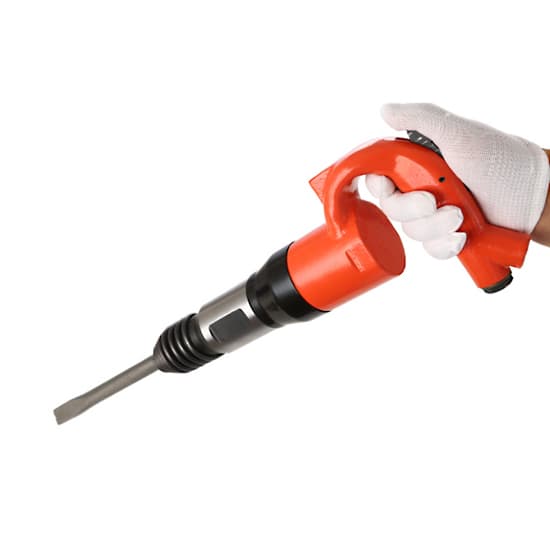

5″ stroke air chipping hammer comes with a durable flat hammer chisel, the open forged handle design reduces impact energy more effectively, reduces user fatigue and improves safety. Whether you’re working in construction or demolition, our pneumatic chipping hammer is great for any job.

Specification

Model	T-C6
Stroke Length	5″ (125mm)
Piston Diameter	1-1/5″ (30mm)
Impact Energy	10 J/min
Impact Frequency	32 Hz/min
Working Pressure	90-115 psi
Power Source	Air-powered
Air Consumption	21 L/s min
Tracheal Inner Diameter	13mm
Noise	102 dB
Net Weight / Gross Weight	7kg / 9kg
Total Length	560mm

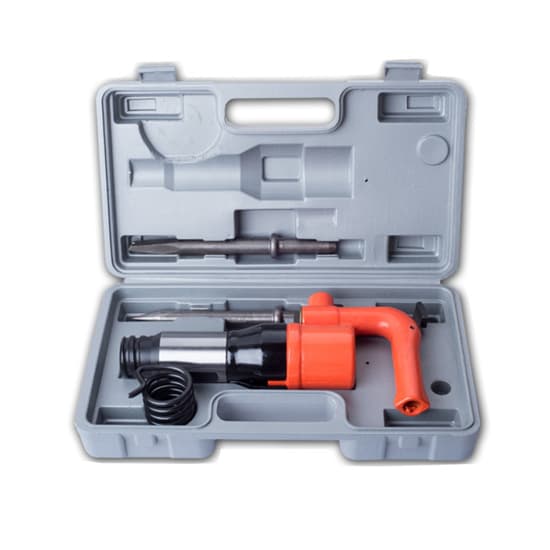

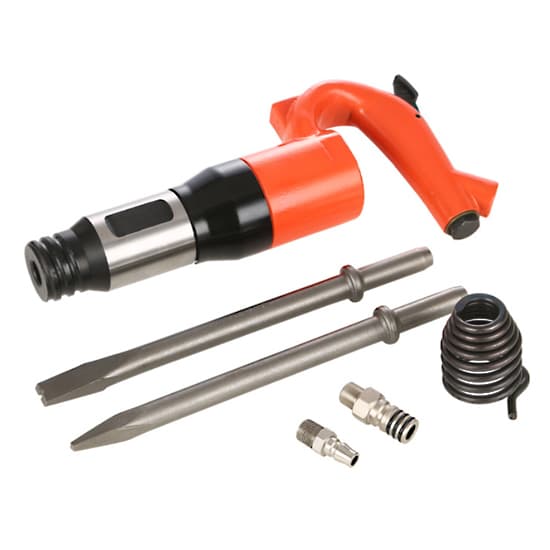

Packing Included	1 * Air Chipping Hammer 1 * Air Hammer Chisel 1 * Coil Spring

Dimension

Tips: 5 inch stroke air chipping hammer advantages and applications

Advantages

Pneumatic chipping hammer with high-quality alloy steel body, anti-fall and anti-pressure, longer service life.
Powerful spring made of alloy material, effectively reducing vibration during work.
Cylinder of the air chipping hammer is lengthened design, has larger gas storage capacity and the stroke length up to 5″.

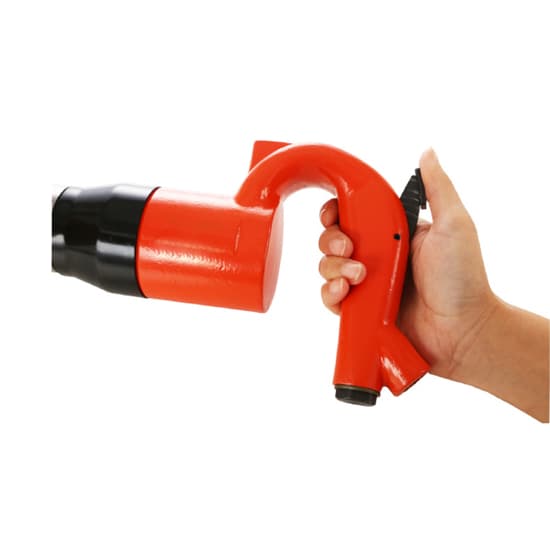

The switch is designed above the handle, which is convenient and quick to use.
The flat hammer chisel is made of chrome vanadium steel, with high hardness and good toughness.

Applications

Air chipping hammer with 5 inch long stroke is mainly used for sand cleaning and deburring of castings, shoveling weld slopes, and removing pouring risers.
Shovel cutting of various metal components in the boiler, shipbuilding, metallurgical industry and other industries, especially various irregular or narrow and inconvenient surfaces.
Welding of bridges in capital construction of traffic engineering.
Various brick and concrete wall openings work.
