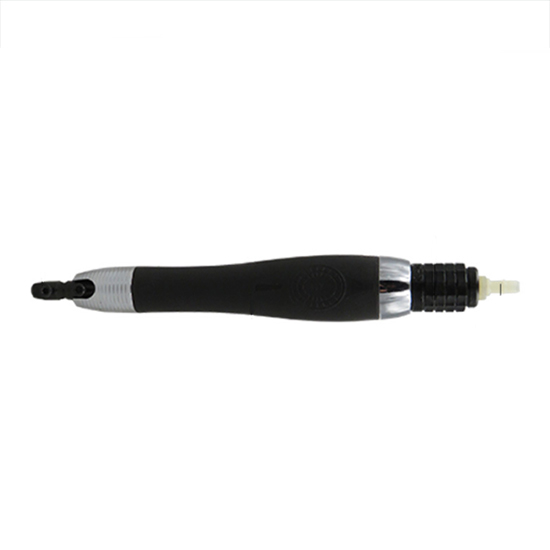

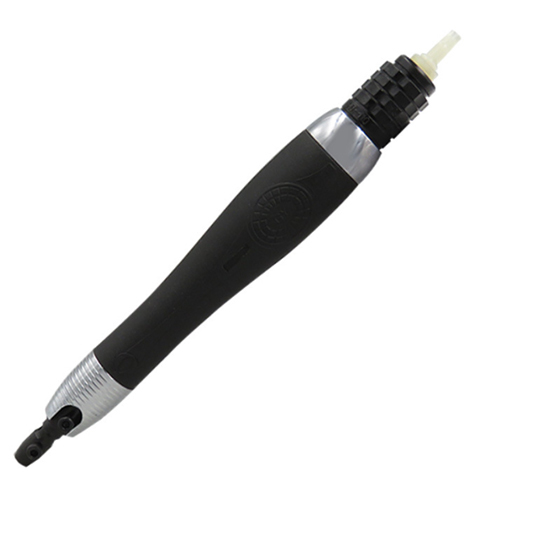

Name: Air File, 0.03" Stroke, 30000bpm
Brand: Tool
SKU: 1231
Availability: InStock

Air File, 0.03″ Stroke, 30000bpm

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

68 People watching this product now!

Buy competitive price 30000bpm pneumatic file. Stroke length is 0.7mm, average air consumption is 5cfm, air hose size is 5mm*1200mm. A great pneumatic tool that will be perfect for your cutting needs in metal rust removal, wood polishing, stone polishing, etc.

Specification

Model	T-KP-756
Stroke length	0.03″ / 0.7mm
Strokes per minute	30000bpm
No load speed	30000rpm
Working pressure	90 psi
File piece diameter	3mm
File piece length	70mm
Air inlet size	1/4 inch (6.35mm)
Average air consumption	5cfm
Air hose size	5mm
Air hose length	1200mm
Tool length	210mm
Net weight	0.22kg
Package weight	0.5kg
Package included	1Air file 1File 2Chucks 1Allen wrench 1*1200mm air hose

Details

Tips: Air file troubleshooting

Diaphragm. For membrane pneumatic actuators, the diaphragm is the most important element. In the normal condition of the air supply system, if the actuator does not work, check whether the diaphragm is broken or not installed properly. When the surface of the metal contact surface has sharp corners, burrs and other defects, the diaphragm will be pierced, but the diaphragm must not leak. In addition, the use of the diaphragm is too long and the material aging will also affect the use.
Pistons. The pistons of pneumatic and hydraulic actuators generate driving force, so the damage and wear of the pistons are absolutely not allowed.
Air (liquid) hose. This is the path through which the input pressure leads to the actuator. Therefore, it is necessary to check whether the air pipe (liquid) is connected firmly to ensure that there is no air leakage.
Push rod. Check whether the push rod is bent, deformed, or dropped off. The push rod and the valve rod must be firmly connected, and the position must be adjusted to ensure sufficient travel.
Spring. Check whether the spring is broken. Improper manufacturing, processing, and heat treatment will cause the spring to break. Some springs may also break under excessive load.
