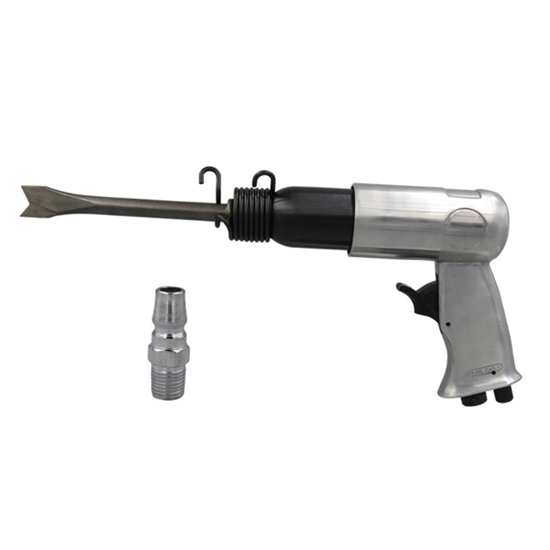

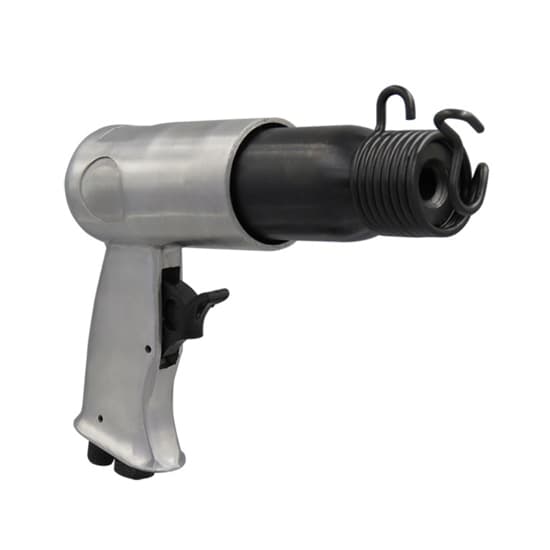

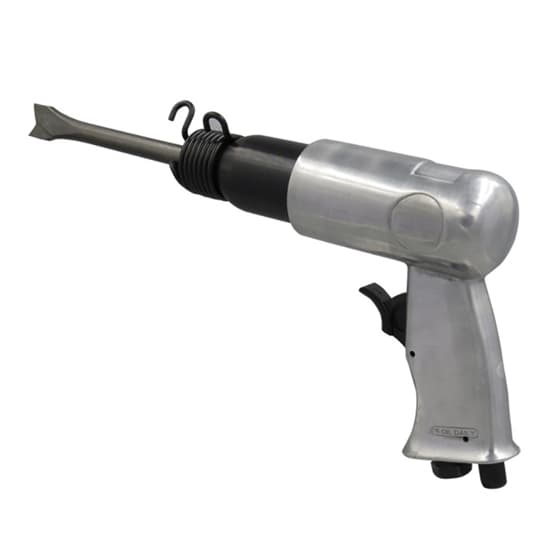

Air Hammer, 3500 bpm, 2-5/8″ Stroke
Original price was: $110.63.$33.99Current price is: $33.99.
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
Portable air-powered hammer at lower price, 3500 bpm, 2-5/8 inch (67mm) stroke, two-finger trigger provides more comfortable and easy control. Reinforced cylinder for more air storage capacity and strong alloy spring with full elasticity, not easy to break deformation.
Specification
| Model | T-KP-761 |
| Speed | 3500 bpm (blows per minute) |
| Stroke | 2-5/8 inch (67mm) |
| Air Inlet | 1/4″ (6.35mm) |
| Working Pressure | 90 psi |
| Average Air Consumption | 8 cfm |
| Power Source | Air-powered |
| Net Weight / Gross Weight | 1.4kg / 1.7kg |
| Overall Dimension | 175*145 mm |

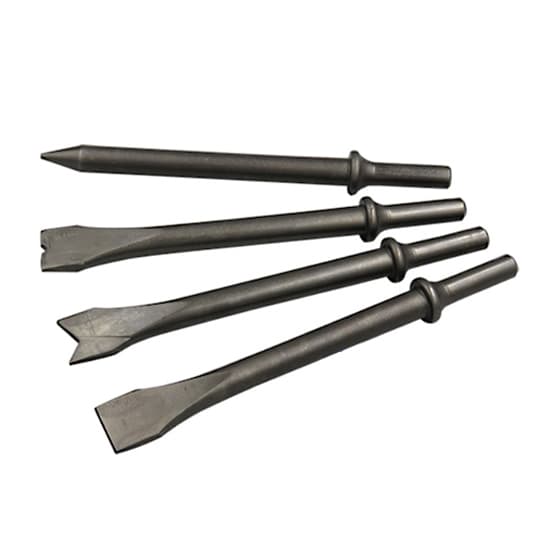

| Packing Included | 1 * Air Hammer 1 * Air Inlet Connector 4 * Air Hammer Chisels |
Details
Tips: Something should know when using 3500 bpm pneumatic air hammer
The air hammer uses compressed air as the power to make the internal hammer reciprocate and strike the bit, so that the bit can chisel metal and building materials. It mainly used in casting, welding and construction, furnace maintenance and other places.
In the process of using our 3500bpm small air hammer, we should pay attention to some matters. When disassembling and reassembling, you must tighten the handle and the cylinder, and then adjust the position of the stop ring so that the stop ring is fully engaged with the handle body teeth, and finally install the fixing ring, so that the power of the air hammer can be kept at work. When installing and disassembling working parts, the air supply valve should be closed to cut off the air supply pipe. When replacing, do not point the pneumatic hammer tool at others.
