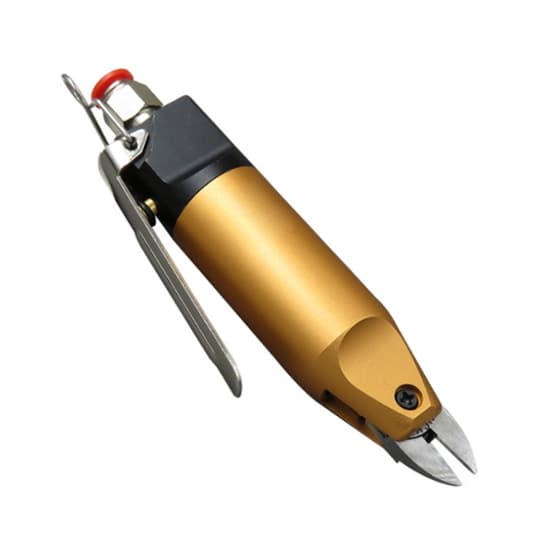

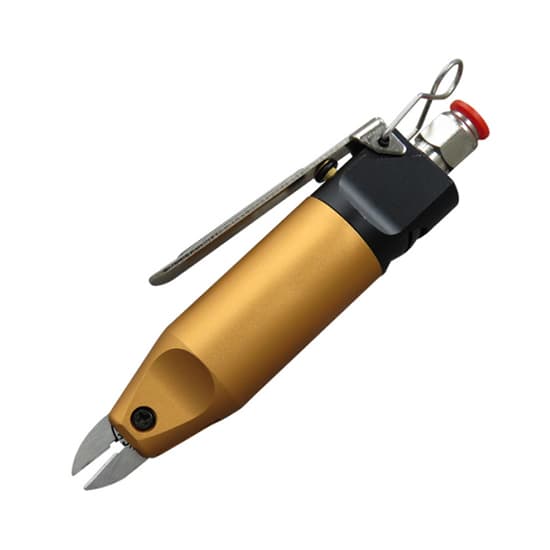

Name: Air Nipper, Cutting 1.0mm Copper Wire
Brand: Tool
SKU: 1155
Availability: InStock

Air Nipper, Cutting 1.0mm Copper Wire

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

17 People watching this product now!

Best pneumatic scissor for sale online, is an air shear tool with small size but strong impact resistance, used for metal cutting in large production lines, electricians, repairs, hardware, and auto repair.

Specification

Model	T-HS5-S2S
Maximum Cutting Capacity	1.0mm Copper Wire 0.5mm Iron Wire
Air Consumption	64cm³/ cycle
Operating Air Pressure	73-87psi
Applied Pressure	390N
Air Inlet Size	5/16 Inch
Recommended Hose Inner Diameter	5mm
Applicable Hose Size	5*8mm
Overall Length	150mm
Net Weight	0.18kg
Package Weight	0.35kg

Details

	A. overall length: 64mm
	B. thickness: 7mm
	E. working length of blade: 13mm
	F. working angle of blade: 0°
	G. V-shaped upper end: 4mm
	H. V-shaped bottom end: 2mm
	I. maximum width of knife arm: 17mm
	J. maximum thickness of knife arm: 4mm
	K. minimum thickness of knife arm: 1mm
	L. front end length of screw hole: 24mm
	width of closed shear: 16mm
	extending length: 17mm

Installation of air nipper blade

Put the blade into the air nipper body.
Align the bolt and put it in.
Tighten the nut.

Tips: 4 tips for using air nipper to cut 1.0 mm copper wire

In order to keep your pneumatic nipper air tool in good working condition for a long time, please maintain air shear according to the following items.

Use air with proper pressure: Please use the working air pressure in the range of 73-87psi. If the working pressure is too low, the working efficiency of the air shear will be significantly reduced or even fail to work normally. If the air pressure is too high, although the working efficiency of the air shear can be improved, it is easy to damage the internal parts and shorten the life of the air shear.
Use filter: The moisture, dust, rust and other foreign objects in the air are the main reasons that cause premature aging of air scissor parts. Therefore, it is necessary to install a filter for the pneumatic scissor. Filter foreign matter in the air to provide clean and dry air for the air cutter. The filter must have enough flow and be cleaned frequently, otherwise it will affect normal operation due to insufficient flow.
Lubrication of air shear: Air shear and other air tool must be properly lubricated regularly to ensure normal and long-term work. Put 3-4 drops of lubricating oil into the air inlet of the air nipper before and after each work.
In addition, after working for a period of time, the air compressor that powers the pneumatic nipper will accumulate a large amount of water, and the water must be discharged regularly to ensure the air is dry.
