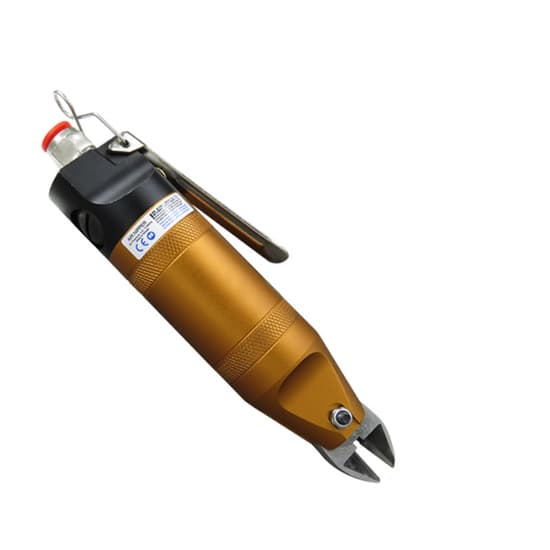

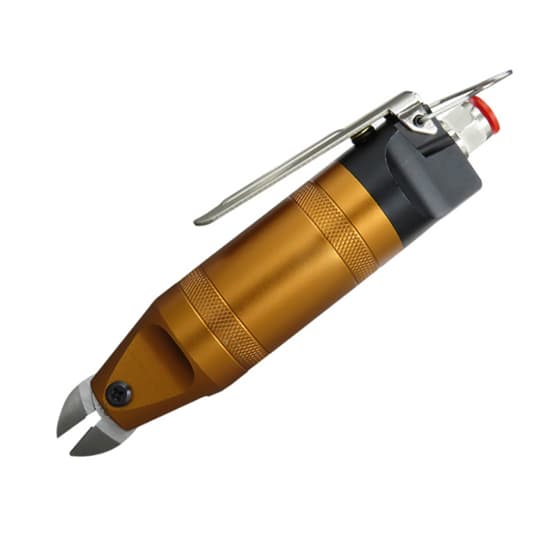

Name: Air Nipper, Cutting 1.6mm Copper Wire
Brand: Tool
SKU: 1156
Availability: InStock

Air Nipper, Cutting 1.6mm Copper Wire

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

29 People watching this product now!

Cheap pneumatic scissor for copper and iron wire cutting. Maximum cutting capacity is 1.6mm. Small in size, light in weight, easy to operate, reliable in performance, is the wear-resistant and durable air cutter. Widely used in electronics, instruments, meters and other industries.

Specification

Model	T-HS10-S4
Maximum Cutting Capacity	1.6mm Copper Wire 1.0mm Iron Wire
Air Consumption	116cm³/ cycle
Operating Air Pressure	59-72psi
Applied Pressure	580N
Recommended Hose Inner Diameter	5mm
Applicable Hose Size	5*8mm
Overall Length	170mm
Net Weight	0.29kg
Package Weight	0.5kg

Details

	A. overall length: 80mm
	B. thickness: 9mm
	E. working length of blade: 13mm
	F. working angle of blade: 25°
	G. V-shaped upper end: 6mm
	H. V-shaped bottom end: 3mm
	I. maximum width of knife arm: 22mm
	J. maximum thickness of knife arm: 9mm
	K. minimum thickness of knife arm: 0mm
	L. front end length of screw hole: 26mm
	width of closed shear: 21mm
	extending length: 20mm

Installation of air nipper blade

Put the blade into the air nipper body.
Align the bolt and put it in.
Tighten the nut.

Tips: Troubleshooting for rusty blades of air nipper

The surface of the cutter blade of the air nipper has accumulated dust containing other metal elements or attachments of foreign metal particles. In the humid air, the condensed water between the attachment and the steel connects the two to form a micro battery. An electrochemical reaction is triggered, the protective film of the air shear is damaged, and the blade of the pneumatic nipper produces rust stains, which is called electrochemical corrosion.
The surface of the blade of the pneumatic scissor adheres to the organic juice (such as melon, vegetable, noodle soup, sputum, etc.), which forms organic acid in the presence of water and oxygen, and the organic acid will corrode the metal surface over time.
The surface of the blade of air cutters contains acid, alkali, and salt substances (such as alkaline water and lime water splashing on the decoration wall), causing local corrosion.

Therefore, to ensure that the cutter blade surface of the pneumatic scissors is permanently bright and not rusted, we suggest:

The surface of the blade of the air scissors must be cleaned and scrubbed frequently to shave off attachments and eliminate external factors that cause rust stains.
The chemical composition of some steels on the market cannot meet the corresponding national standards and material requirements. So rust can also be caused.
Spray anti-rust oil on the blades of pneumatic shear regularly and quantitatively, and do simple maintenance.
