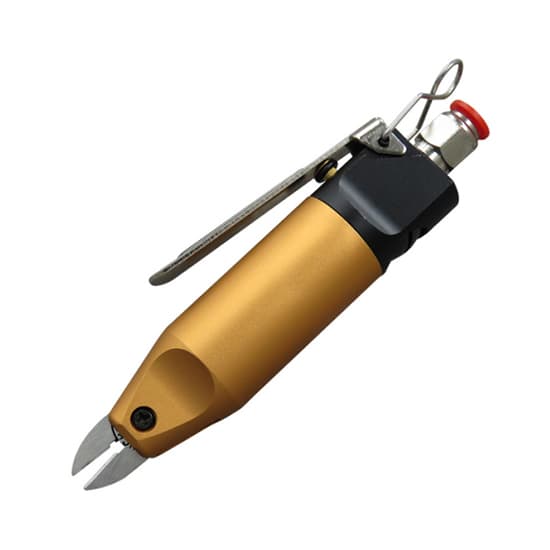

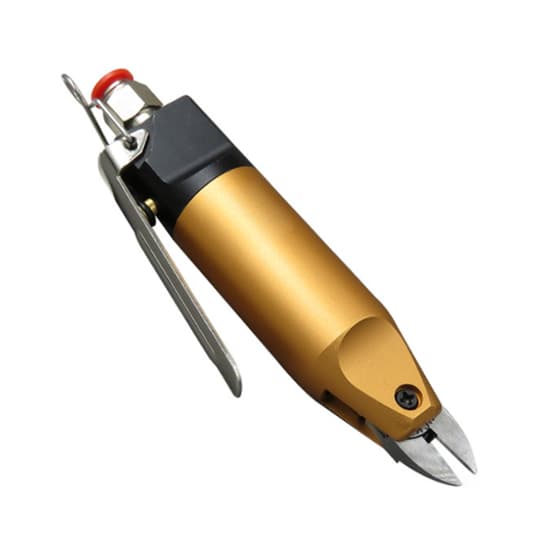

Name: Air Nipper, Cutting 2.5mm Soft Plastic
Brand: Tool
SKU: 1159
Availability: InStock

Air Nipper, Cutting 2.5mm Soft Plastic

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

55 People watching this product now!

Good quality air nipper for sale. 64cm³/ cycle air consumption, 73-87psi operating air pressure, 390N applied pressure. An air scissor cuts off plastic rapidly and effectively, which saves the time and labor reduction.

Specification

Model	T-HS5-F1
Maximum Cutting Capacity	2.5mm Soft Plastic 2.0mm Hard Plastic
Air Consumption	64cm³/ cycle
Operating Air Pressure	73-87psi
Applied Pressure	390N
Recommended Hose Inner Diameter	5mm
Applicable Hose Size	5*8mm
Overall Length	150mm
Net Weight	0.18kg
Package Weight	0.35kg

Details

	A. overall length: 65mm
	B. thickness: 7mm
	E. working length of blade: 13mm
	F. working angle of blade: 25°
	G. V-shaped upper end: 3.5mm
	H. V-shaped bottom end: 2mm
	I. maximum width of knife arm: 16.5mm
	J. maximum thickness of knife arm: 5mm
	K. minimum thickness of knife arm: 1mm
	L. front end length of screw hole: 24mm
	width of closed shear: 16mm
	extending length: 17mm

Installation of air nipper blade

Put the blade into the air nipper body.
Align the bolt and put it in.
Tighten the nut.

Tips: Safety instructions for air shears

In order to use the air shears correctly and avoid injury at work, you need to understand the safety instructions for the use of air shears before use.

The working air pressure used by the air scissor should not be too high, and it should meet the national safety standards.
When you need to use the air cutter for a long time, avoid directly using the quick air inlet connector.
When you need to replace the pneumatic scissor accessories or repair the pneumatic scissor, be sure to turn off the air source and unplug the air shear and the air source connector.
Please wear goggles or face protection device at any time when operating the air nipper tool or replacing the air scissor accessories, so as to avoid injury to the body caused by foreign objects or accidents during work.
Do not wear jewelry, neckwear (scarves, ties, etc.), or loose clothes when operating air cutters. Keep a certain distance between your body and the workbench.
Do not directly touch the rotating shaft to avoid injury to your hands or other parts of the body by air shears. Wear gloves to protect your hands during operation.
Non-professionals are not allowed to modify the pneumatic nipper structure by themselves, or replace other manufacturers’ accessories.
Don’t leave too long air pipes in the aisle or work area to avoid staff tripping.
