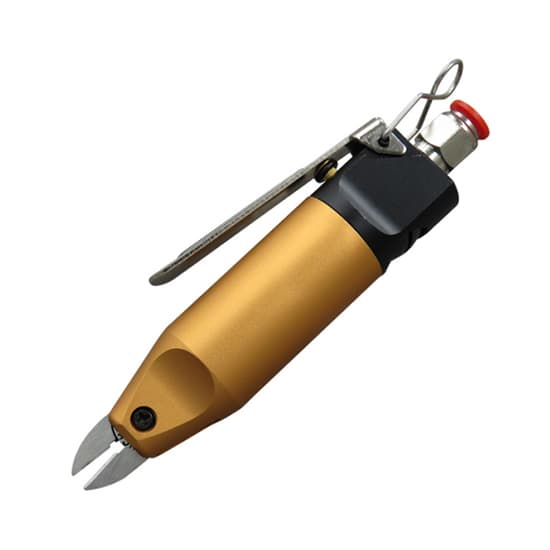

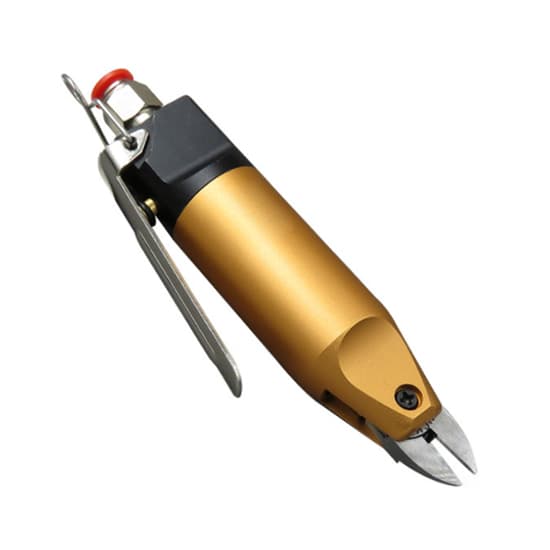

Name: Air Nipper, Cutting 4mm Soft Plastic
Brand: Tool
SKU: 1160
Availability: InStock

Air Nipper, Cutting 4mm Soft Plastic

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

48 People watching this product now!

Wholesale price pneumatic cutter online. Air shear with great advantages: The air inlet is sealed, and the air flow is strong and does not leak. Pressing plate switch, not easy to deformation, feel good.

Specification

Model	T-HS10-F3
Maximum Cutting Capacity	4mm Soft Plastic 3mm Hard Plastic
Air Consumption	116cm³/ cycle
Operating Air Pressure	59-72psi
Applied Pressure	580N
Recommended Hose Inner Diameter	5mm
Applicable Hose Size	5*8mm
Overall Length	170mm
Net Weight	0.29kg
Package Weight	0.5kg

Details

	A. overall length: 82mm
	B. thickness: 9mm
	E. working length of blade: 14mm
	F. working angle of blade: 25°
	G. V-shaped upper end: 6mm
	H. V-shaped bottom end: 3.5mm
	I. maximum width of knife arm: 22mm
	J. maximum thickness of knife arm: 6mm
	K. minimum thickness of knife arm: 1mm
	L. front end length of screw hole: 26mm
	width of closed shear: 20mm
	extending length: 19mm

Installation of air nipper blade

Put the blade into the air nipper body.
Align the bolt and put it in.
Tighten the nut.

Tips: 6 tips for operating pneumatic nipper correctly

Before installing the blade and the body device of the air nipper, confirm whether the air pressure (air compressor) has been turned off.
When working with the blade of the air shear, try to use the intermediate value of the blade working length.
Confirm the working air pressure specified by the air scissor.
When air cutter finished working, you need to turn off the air pressure (air compressor) in time and do simple maintenance on the air shear.
The performance and maintenance of pneumatic scissor are related to many elements, and the power and flow of the air source (air compressor) are the most basic elements. And a good air path attachment can effectively reduce the air source loss.
Calibration of pneumatic nipper. After a air cutter tool is used for a period of time or stops assembly, it needs to stop working and do calibration. Generally, the “static torque” inspection method is adopted, and some torque wrenches or torque simulation test instruments are used for verification.
