Name: Air Nipper, Cutting 8mm Soft Plastic
Brand: Tool
SKU: 1161
Availability: InStock

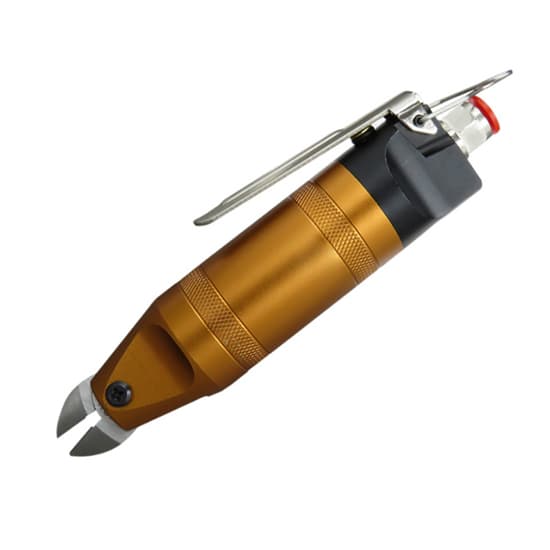

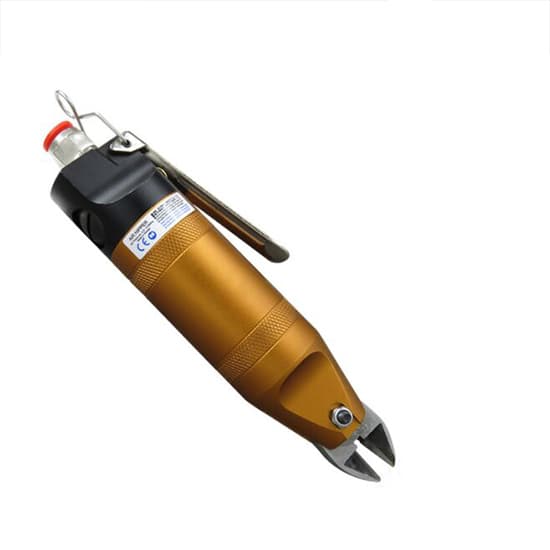

Air Nipper, Cutting 8mm Soft Plastic

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

66 People watching this product now!

Best sale pneumatic scissor with cheap price. A popular air nipper tool featured by simple operation, strong persistence and strong shearing ability. 230cm³/ cycle air consumption, 73-87psi operating air pressure, 1370N applied pressure, 3/8 Inch air inlet.

Specification

Model	T-HS20-F5
Maximum Cutting Capacity	8mm Soft Plastic 7mm Hard Plastic
Air Consumption	230cm³/ cycle
Operating Air Pressure	73-87psi
Applied Pressure	1370N
Air Inlet Size	3/8 Inch
No Load Speed	800rpm
Frequency	50Hz
Applicable Hose Size	5*8mm
Overall Length	195mm
Net Weight	0.49kg
Package Weight	0.7kg

Details

	A. overall length: 95mm
	B. thickness: 12mm
	E. working length of blade: 18mm
	F. working angle of blade: 15°
	G. V-shaped upper end: 11mm
	H. V-shaped bottom end: 5mm
	I. maximum width of knife arm: 28mm
	J. maximum thickness of knife arm: 12mm
	K. minimum thickness of knife arm: 1mm
	L. front end length of screw hole: 31mm
	width of closed shear: 24mm
	extending length: 26mm

Installation of air nipper blade

Put the blade into the air nipper body.
Align the bolt and put it in.
Tighten the nut.

Tips: Air nipper troubleshooting – Why does the pneumatic scissor not work?

If the newly-purchased pneumatic scissor cannot cut off soft plastic or hard plastic, it is usually a mistake in the selection of pneumatic scissor. The cutting capacity of the selected air nipper model does not meet the requirements, so you can only replace the air scissor with greater cutting capacity. Therefore, when purchasing air cutter, you must tell the sales staff clearly what material you need to cut with the air scissor, and how many millimeters the diameter of the material is.
The blade of the air shear cutting tool is a consumable. If it has been used for a long time, the blade will become blunt, and the cutting ability is reduced. Pay attention to maintaining the air scissor blade during use.
Note that if the cylinder is used for a long time, the O-ring is prone to aging, the air tightness becomes poor, and air leakage occurs, resulting in insufficient air pressure.
When the air nipper still cannot cut after connecting to the air source, you need to check whether the air pressure at the air pipe joint is enough 73-87psi, and then check whether the air inlet joint is excessively worn. If the air shear still does not work after replacing the new air inlet connector, there may be something wrong with the inside of the air shear. You can carefully disassemble and inspect the air scissor yourself.
