Name: Air Pop Riveter, 3/32" - 5/32"
Brand: Tool
SKU: 1179
Availability: InStock

Air Pop Riveter, 3/32″ – 5/32″

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

58 People watching this product now!

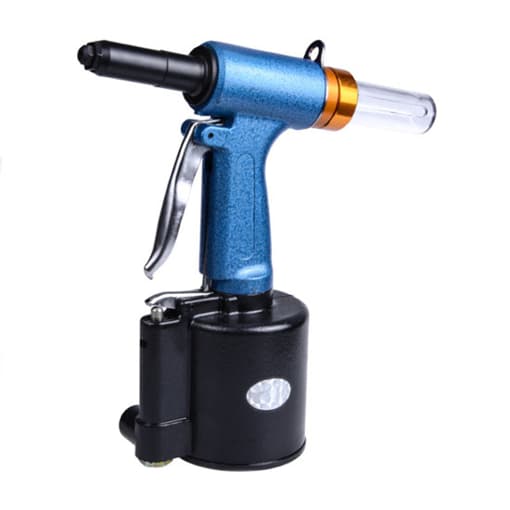

The best air pop riveter is an air powered hand rivet tool with high efficiency, which is light weight and easy to operate. The pneumatic rivet gun is widely used for home decoration, luggage production, automobile manufacture, and electrical appliance assembly.

Specification

Model	T-APR-532
Rivet Capacity	3/32″, 1/8″, 5/32″ (2.4mm, 3.2mm, 4.0mm)
Power Source	Air Powered
Working Pressure	72 – 102 PSI (0.5 – 0.7 MPa)
Air Inlet Size	1/4 inch (6.35mm)
Air Hose Diameter	3/8 inch
Air Consumption	0.04 SCFM
Maximum Stroke	18mm
Body Dimension	225m * 235mm
Weight	1.3kg
Package Included	1 PC Pneumatic Riveter 2 PCS Wrenches 3 PCS Nozzles 1 PC Air Inlet

Details

Package Included

Tips: What need to know when using an air pop riveter

1. Air consumption of air tools and capacity of air compressors
The pneumatic rivet gun as an air tool requires a certain amount of compressed air to work. The essential condition when you select an air compressor is that it has a relatively sufficient capacity. If the capacity of the air compressor is insufficient, the air riveter chances to stop work. Generally, an air powered riveter with the air consumption of 1.0m3/min can be used continuously with a 0.75 Kw air compressor.
2. Right air pressure
An air rivet gun with the air pressure of 0.6MPa (85 PSI) works efficiently. The air pressure below 0.6MPa will decrease in work efficiency. And It will lead to the fault if the air pressure is above 0.7MPa (102 PSI).
3. Remove the moisture
The moisture in air compressor and pipe must be cleaned every time.
4. Maintenance
Before and after use, be sure to drop air pressure oil to lubricate the air tool and prevent rust. Don’t place the rivet gun here and there to prevent dust or other foreign matter from entering the tool.
