Name: Automatic Rebar Tying Machine, 9V, 12-58mm
Brand: Tool
SKU: 770
Availability: InStock

Automatic Rebar Tying Machine, 9V, 12-58mm

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

32 People watching this product now!

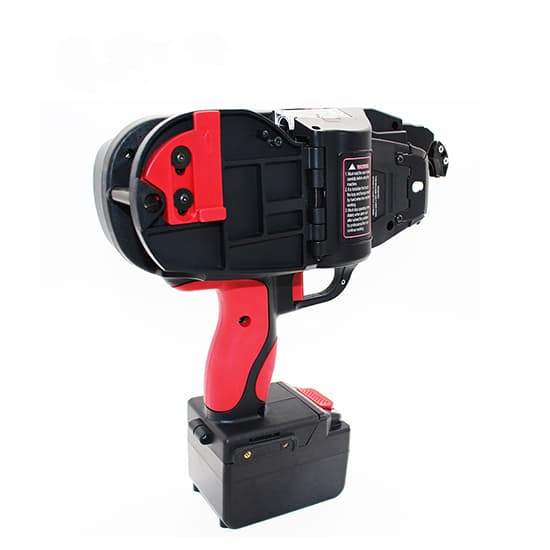

Best automatic rebar tier is powered by 9V battery, provided for the use of steel bars with a diameter of 12-58mm, has reasonable structure, advanced craft, high efficiency and convenient maintenance, widely applicable for rebar binding in construction.

Specification

Model	T-RT550
Battery voltage	9 V
Applicable rebar size	12-58mm
Ties per roll of wire	100 knots
Ties per charger	1300 knots
Wire diameter	0.8mm
Length per coil	100m
Weight per coil	0.40kg
Machine size	29.51026cm
Machine net weight	2.6kg
Battery type	NI-MH battery
Charging time	70 minutes
Package weight	6.90kg
Package size	351337cm

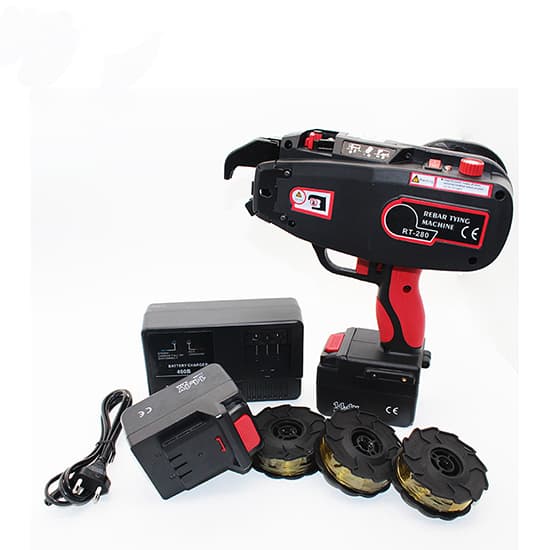

Packing included	1 * Rebar tying machine 2 * Batteries 1 * Battery charger 4 * Wire coils

Details

Tips: Automatic rebar tying machine troubleshooting

1. When the automatic rebar tier is working, the arc formed by the iron wire appears outside the jaws, and the rebar cannot be tightened.

Cause: When strapping, an object blocked the jaws, causing the wire exiting track to interfere and the exiting wire to be off-track.
Solution: Adjust the binding angle to remove foreign objects in the wire exiting track range of the jaws to ensure that there is no interference when the wire comes out.

2. Continuous wire tying.

Cause: At the end of tying, the start button was pressed without lifting the rebar machine from the rebar, resulting in continuous strapping.
Solution: Use diagonal pliers to cut the wire. If the wire is stuck at the wire outlet, pull it out. When working next time, press the button only once for each strapping.

3. The charger indicator flashes.
