Name: Automatic Rebar Tying Machine, 9V, 4-28mm
Brand: Tool
SKU: 768
Availability: InStock

Automatic Rebar Tying Machine, 9V, 4-28mm

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

27 People watching this product now!

Thanks to the 9 volt NI-MH battery technology, the construction rebar tier ties approx 1500 knots per charge. 70 minutes less charging time means more productive work on the automatic rebar binding of 4-28mm rebar diameter. Fast and convenient, 3-4 times work efficiency of labor efficiency.

Specification

Model	T-RT235
Battery voltage	9 V
Applicable rebar size	4-28mm
Ties per roll of wire	260 knots
Ties per charger	1500 knots
Wire diameter	0.8mm
Length per coil	100m
Weight per coil	0.40kg
Machine size	29.51026cm
Machine net weight	2.4kg
Battery type	NI-MH battery
Charging time	70 minutes
Package weight	6.70kg
Package size	351337cm

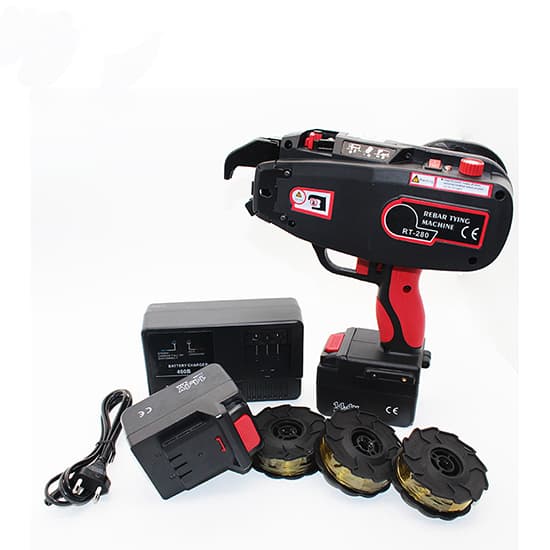

Packing included	1 * Rebar tying machine 2 * Batteries 1 * Battery charger 4 * Wire coils

Details

Tips: What to do if the tying is not tight enough?

The automatic rebar tier has been widely used in the construction works and is deeply loved by workers. However, in the actual operation, due to problems such as unskilled operation techniques, individual machine may not tie tightly enough or cannot bind rebars.

The following is the method to solve this problem.

Tighten the front screw on the iron piece and adjust the second screw up and down.
Adjust the second screw up and down to adjust the diameter of the iron wire to 47mm or 48mm.
Make the rebar tier work twice and turn off the power switch of the automatic rebar tier.
When binding, check whether there is an object blocking the jaws, causing the wire exiting track to interfere or the exiting wire to deviate.
Check and adjust the strapping angle, remove foreign matter in the wire exiting track of the jaws, and ensure that there is no interference when the wire is exited.
