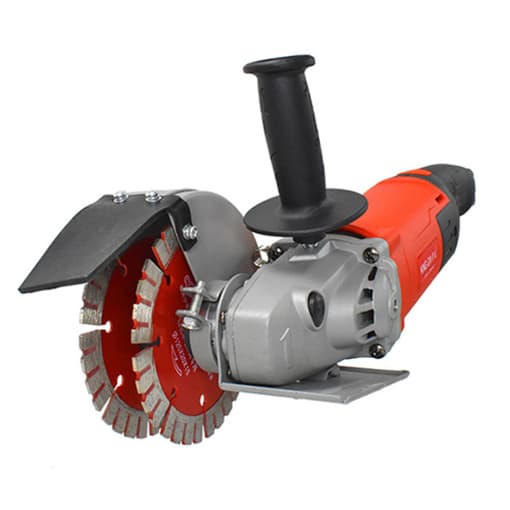

Wall Chaser Grooving Machine, 1200W, 125mm
Original price was: $235.96.$70.99Current price is: $70.99.
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
1200 watt wall chaser grooving machine is a durable construction tool with double alloy saw blades, widely used to making cuts for red brick, concrete, marble, a labor-saving and economical handle for easy operation.
Description
| Model | T-1200 |
| Saw Type | circular saw |
| Voltage | 220V AC |
| Power | 1200W |
| Saw Blade Diameter | 125mm (4.9″) |
| Saw Blade Dimension | 125 * 20 * 15mm (4.9″ * 0.8″ * 0.6″) |
| No-load Speed | 4000(rpm) |
| Max. Cutting Depth | 35mm (1.4″) |
| Cutting Depth | 35mm (1.4″) |
| Cutting Wedth | 32mm (1.3″) |
| Net Weight / Gross Weight | 6.0kg (13.22 pounds) / 8.5kg (18.74 pounds) |
| Application | red brick, concrete, marble |
Features
- Adjustable cutting depth & wedth: Cutting groove depth of wall chaser can be randomly controlled. Max. cutting depth is up to 35mm (1.4″), max. cutting width 32mm (1.3″).
- Easy to hold: Weight 6.0kg, the handle can be rotated 180°. It can also work much effort without any assistants to increase the efficiency of work.
- Safety: The slotting machine can serve for a long life with power 1.2 KW 220V 50Hz motor. The devices of water pump and rotated protection cover work at the same time to reduce the dust during work to take into account user’s health.
- Multifunction use: Widely applied and adapt to different materials, such as red brick, concrete, marble. Ideal for building workers.
Tips: Installation of wall chaser grooving machine
Step 1. Hold down the lock pin and loosen the nut.
Step 2. Remove 6 gaskets and 1 pressure plate.
Step 3. Install 1 saw blade and 6 gaskets.
Step 4. Install the other blade and the presure plate.
Step 5. Hold down the lock pin and tighten the nut.
Step 6. Install all-copper water nozzle.
Notes: User should take dustproof glasses, mask and water pump and rotate protection cover accordingly at the same time to reduce the dust during work.
