Bilateral Laser Distance Meter, 120/200m
Price range: $38.99 through $63.99
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
Favorable price bilateral laser distance meter (120/200 meters) features high accuracy and high performance, suitable for a variety of measurement needs. It supports automatic laser shutdown, screen backlighting, electronic level bubble and other functions to ensure that users can get reliable measurement results in different environments. The device supports storage of up to 100 measurements and is equipped with an 850mAh Li-ion battery for fast charging using the Type-C charging port.
Specification
| Model | T-SW-DR60 | T-SW-DR100 |
| Maximum Measurng Distance | 120m (Bidirectional), 60m (Unidirectional | 200m (Bidirectional), 100m (Unidirectional |
| Accuracy | ±(2mm+D*1/10000)* (Unidirectional) | |
| Angle Measuring Range | ±90° | |
| Continuous Measurement | Yes | |
| Area/Volume Measurement | Yes | |
| Wall Area Measurement | Yes | |
| Pythagorean Measurement | Yes | |
| Length Addition/Subtraction Measurement | Yes | |
| Max/Min Value | Yes | |
| Electronic Level Bubble | Yes | |
| Automatic Screen Rotation | Yes | |
| Magnetism | Yes | |
| Laser Level | Ⅱ | |
| Laser Type | 630-670nm, <1mW | |
| Max Storage | 100 units | |
| Auto Laser-off | 20s | |
| Auto Power-off | 180s | |
| Backlight Time | 60s | |
| Battery | 3.7V 850mAh Li-ion | |
| Charge Time | About 1.5 hours | |
| Charging Specification | DC5V 0.75A Type-C | |
| Operation Times at Full Charge | 8000 times (Unidirectional); 5000 times (Bidirectional) | |
| Storage Temperature | -20℃~60℃ | |
| Working Temperature | 0℃~40℃ | |
| Storage Humidity | 20%-80%RH | |
| Dimension | 115*50*24.5mm | |
| Net Weight | 400g | |
ATTENTION: “D” indicates the actual distance.
** In harsh environment, such as: strong sunlight, excessivelyfluctuated ambient temperature, weak reflection effect of theobject’s surface and the low battery, a large error will occur inmeasurement results, so a reflecting plate is needed.
Bilateral Laser Distance Meter Document
- Bilateral Laser Distance Meter User Manual.pdf
Bilateral Laser Distance Meter Details and Dimension (unit: mm)
Bilateral Laser Distance Meter Multiple Measurement Methods

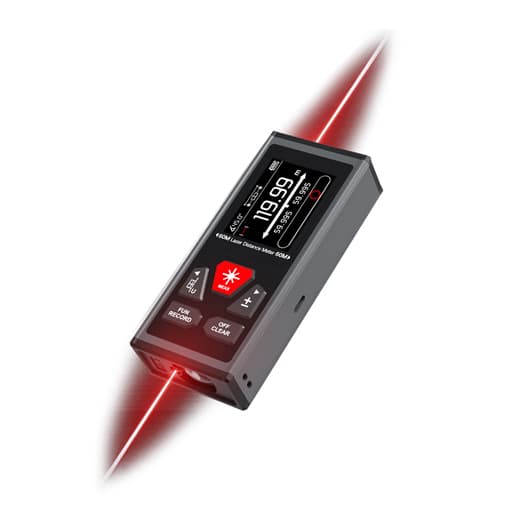

Tips: What is a bilateral laser distance meter?
Bilateral laser distance meter is a tool that measures distance through a laser beam. It can emit laser light from two directions at the same time for bi-directional distance measurement. This device utilizes the principle of laser reflection to calculate the time it takes for the light to emanate from the device, hit the target object, and reflect back again, thus accurately calculating the distance between objects. The advantage of bi-directional measurement is that it provides more comprehensive spatial data, which is especially suitable for construction, engineering and other scenarios that require high precision measurement.
