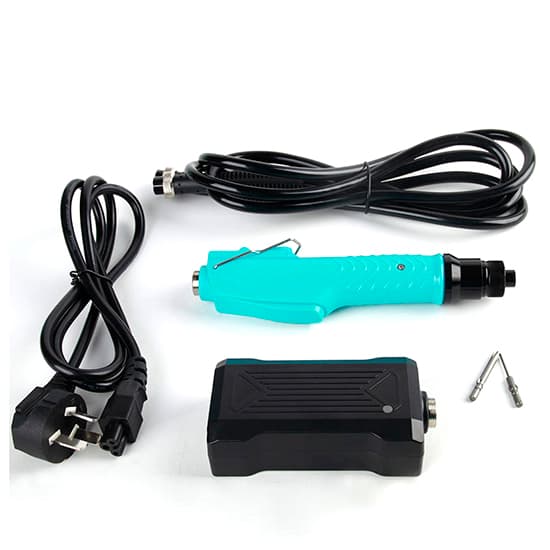

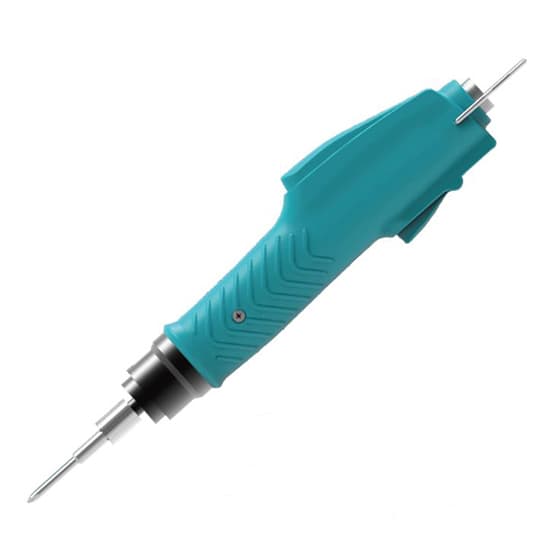

Brushless electric screwdriver has stepless torque adjustment and high precision. It is a handheld electric screwdriver with mini size. Best power screwdriver for small range torque.

Electric Screwdriver Specification

Model		T-GBX-1	T-GBX-2	T-GBX-13
Input Voltage		DC 25V
Torque Range	kgf.cm	0.1-1	0.2-2	0.3-3
	lbf.in	0.085-0.85	0.17-1.7	0.255-2.55
	N.m	0.01-0.1	0.02-0.2	0.03-0.3
Torque Accuracy		±3%
Torque Adjustment		stepless
Torque Adjustment Mode		back stop screw
Start Method		hand press type
No-load Speed		1,000rpm
No-load Current		0.3A
Weight		210g
Applicable Bit		φ4
Applicable Screw Diameter (mm)	Mechanical Tooth	1.0-1.6	1.0-1.8	1.0-2.0
	Self-tacking Tooth	1.0-1.7	1.0-2.0	1.0-2.3

Power Controller Specification

Input Voltage	AC 100V-250V
Output Voltage	25V
Output Current	2A
External Dimension	108.66033mm
Weight	133g

Features

The brushless electric screwdriver adopts brushless motor, power cord is designed with silicon wire anti-hardening three-core wire. Powerful performance, high stability and long service life.
Low vibration, low noise, low electromagnetic interference, especially suitable for dust-free working environment.
Brushless electric screwdriver has accurate torque setting, high torque accuracy, especially suitable for screw assembly work of high-precision products such as mobile phones and digital cameras.
Stop device in the brushless electric screwdriver uses a magnetic induction system, high sensitivity. Instant braking, low impact force, not easy to damage after long-term use.

Brushless Electric Screwdriver Dimension Drawing

Torque Curve Diagram

Tips: Precautions for using brushless electric screwdriver.

Before plugging in the power supply, make sure that the switch is off and check whether power supply voltage is suitable. When the brushless electric screwdriver is not used or the power is cut off, unplug the plug.
Do not set the torque adjustment of brushless electric screwdriver too large.
When replacing the head of brushless electric screwdriver, be sure to pull power plug away from socket and turn off the power of electric screwdriver.
Do not throw, drop or hit brushless electric screwdriver during use.
