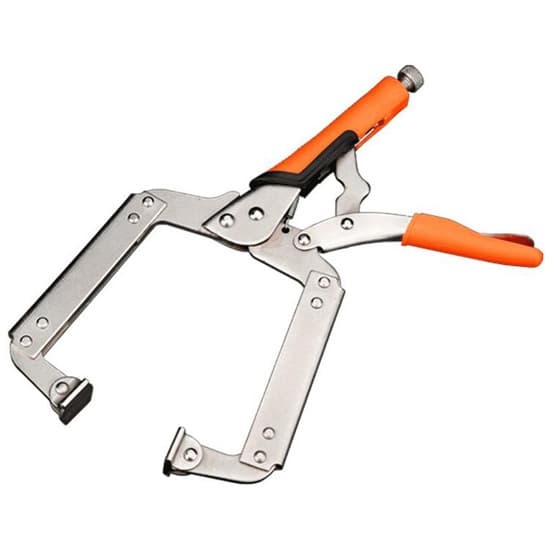

Name: C-Clamp Locking Pliers, 6 inch/11 inch/18 inch
Brand: Tool
SKU: 364
Availability: InStock

C-Clamp Locking Pliers, 6 inch/11 inch/18 inch

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

58 People watching this product now!

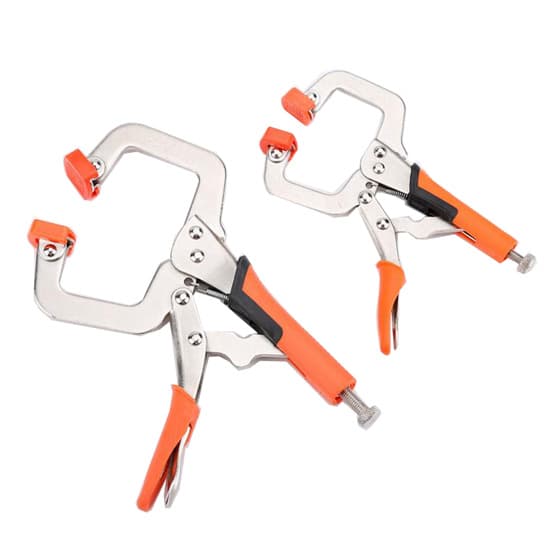

Wholesale C-clamp locking pliers at reasonable price. The locking pliers, C-clamp with swivel pads, provide great convenience for clamping in a variety of shapes, selectable 6 inch, 9 inch, 11 inch, 14 inch and 18 inch in pliers sizes. C-clamp pliers is constructed with high carbon steel with Nickel-plated finish, durable and rust resistant. The screw is easy to adjust for ideal clamping pressure and comfortable-grip handle provides you a easy work.

Specification

Model	T-DLQ-6	T-DLQ-9	T-DLQ-11	T-DLQ-14	T-DLQ-18
Size *	6 inch	9 inch	11 inch	14 inch	18 inch
Material	High-Carbon Steel Jaw
Overall Length	175mm	235mm	280mm	345mm	450mm
Overall Width	85mm	110mm	135mm	140mm	145mm
C-Jaw Length * Width	55mm * 40mm	80mm * 65mm	90mm * 70mm	90mm * 135mm	90mm * 230mm
Handle Length	110mm	140mm	170mm	170mm	170mm
Jaw Capacity	40mm	55mm	80mm	120mm	170mm
Weight	215g	454g	742g	1007g	1199g

Note: The sizes are approximate.

Dimemsion Drawing

Tips: Working principle of pliers

The basic principle of pliers is the use of two levers, connected with a rivet at a point in the middle, so that the two ends can move relative to each other. As long as one end is operated with one hand, the other end can grip the object. In order to reduce the user’s effort in operation, according to the mechanical lever principle, the handle of the pliers is usually longer than the head of the pliers. In this way, a stronger clamping force can be obtained with less force to meet the use requirements. This translates smaller external forces, such as the hand force applied to the pliers arm, into greater force, allowing the pliers to clamp or shear effectively. When the force applied to the pliers handle increases with the lever ratio, the force applied to the pliers jaw produces a force that holds and moves. To generate a large external force, the distance from the center of the pliers riveting position to the handle must be as long as possible, and the distance from the hold or shear point to the center of the riveting position must be as short as possible. But many pliers do not greatly increase hand power because they simply make it easier to operate in difficult areas, such as electronics assembly and electronics and precision engineering applications.
