Name: Hand Vice, 25mm/30mm
Brand: Tool
SKU: 274
Availability: InStock

Hand Vice, 25mm/30mm

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

58 People watching this product now!

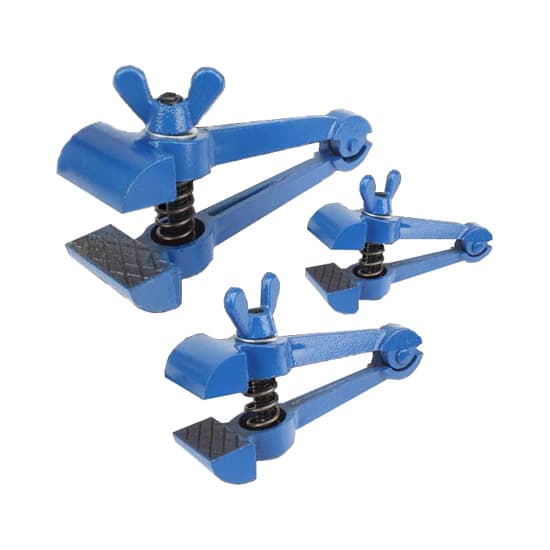

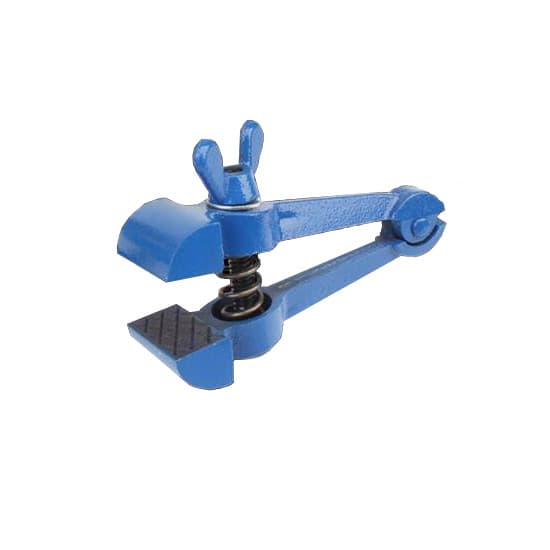

The hand vice is a hand held clamp tool that is used for clamp small-sized work pieces. It is available with jaw opening 25mm and 30mm, light weight and compact size. Ductile cast iron construction with heat treatment and surface spray treatment provides high strength and corrosion resistance, and the spring-loaded jaw with anti-slip desigh for secure holding, ideal for woodworking, workshop, home DIY, etc.

Specification

Model	T-MC03209-25	T-MC03209-40	T-MC03209-50
Material	Cast Iron
Color	Blue
Overall Length	120mm	140mm	160mm
Jaw Length	25mm	40mm	50mm
Jaw Width	20mm	24mm	25mm
Jaw Opening	25mm	25mm	30mm
Weight	310g	515g	635g

Note: The sizes are approximate.

Dimension Drawing

Tips: Hand vise structure

Hand vise or hand vice, is a hand-held tool specially designed for clamping small work pieces or thin slices for processing. For example, when filing a long and thin workpiece, you need first clamp the workpiece with a hand vise, and then place it on a bench vise for processing. It is also suitable for holding the workpiece for welding and drilling.

The hand vise has two unparallel clamping surfaces, forming the jaw. The two handles is connected together with a rivet. Between the two handles of vice is provided with a spring to enable the jaw open. A threaded rod passes through the spring and connectthe two handles, integrated with a wing nut to control the open and close of vice jaw.

The specification of hand vice is expressed by jaw length. Common specifications of hand vise are 25 mm, 40 mm, 50 mm, etc.
