Name: Car TPMS for Honda/Masida/Toyota/Nissan
Brand: Tool
SKU: 1031
Availability: InStock

Car TPMS for Honda/Masida/Toyota/Nissan

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

77 People watching this product now!

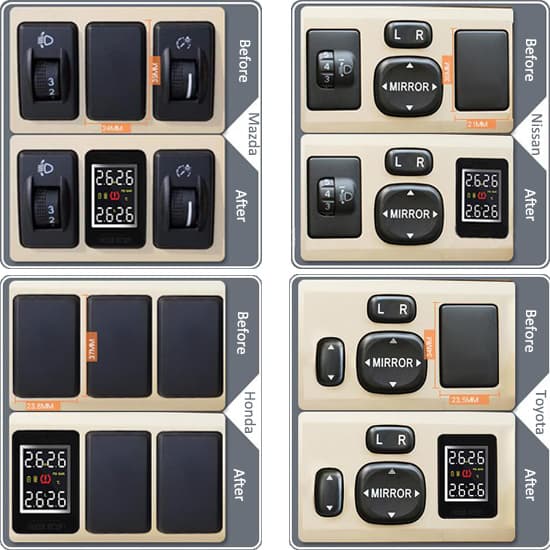

Honda car TPMS has special LED display size for dashboard blind hole embedded installation. It also can be installed in Masida, Toyota or Nissan.

Features:

TPMS can real-time monitor the tire pressure and temperature of your car and automatically update the data on the display at the same time. Once there are something abnormal, the TPMS will warn you immediately.
The car tire pressure monitoring system is special for Honda/Mazda/Toyota/Nissan. The LED display is designed for embedded installation to dashboard blind hole, small size and simple installation, perfect to fit your car.
TPMS provides five types of alarms, including high pressure alarm, low pressure alarm, high temperature alarm, fast air leak alarm and sensor low battery alarm. The user can also set the pressure and temperature alarm value in the setting range.
Adopting advanced chip, TPMS features high sensing accuracy, fast feedback speed, stable signal, long-distance transmission, low consumption and anti-interference, and the sensors adapt to all weather, anti-dust, waterproof, snow and high temperature protection, anti-drop and anti-theft.

Specification:

Basic	Model	T-U912-WF1	T-U912-WI1	T-U912-WF2	T-U912-WI2	T-U912-TL	T-U912-NF+	T-U912-TJ	T-U912-TK
	Weight	0.5kg	0.5kg	0.5kg	0.5kg	0.5kg	0.5kg	0.5kg	0.5kg
	Pressure range	0-8 bar	0-8 bar	0-8 bar	0-8 bar	0-8 bar	0-8 bar	0-8 bar	0-8 bar
	Accuracy	<0.01 bar	<0.01 bar	<0.01 bar	<0.01 bar	<0.01 bar	<0.01 bar	<0.01 bar	<0.01 bar
	Packing included	1 * LED display; 4 * silver tire sensors; 4 * theftproof nuts; 1 * hex wrench; 2 * wrenches for sensor; 1 * power cable	1 * LED display; 4 * silver tire sensors; 4 * theftproof nuts; 1 * hex wrench; 2 * wrenches for sensor; 1 * power cable	1 * LED display ; 4 * black tire sensors; 4 * theftproof nuts; 1 * hex wrench; 2 * wrenches for sensor; 1 * power cable	1 * LED display; 4 * black tire sensors; 4 * theftproof nuts; 1 * hex wrench; 2 * wrenches for sensor; 1 * power cable	1 * LED display; 4 * black tire sensors; 4 * theftproof nuts; 1 * hex wrench; 2 * wrenches for sensor; 1 * power cable	1 * LED display; 4 * black tire sensors; 4 * air taps; 1 * hex wrench; 1 * power cable; 1 * installation note; 4 * paster	1 * LED display; 4 * black tire sensors; 4 * air taps; 1 * hex key; 1 * power cable; 1 * installation note; 4 * paster	1 * LED display; 4 * black tire sensors; 4 * air taps; 1 * hex key; 1 * power cable; 1 * installation note; 4 * paster
	Function	Wireless remote sensing technology, predict air leakage, prevent tire burst, detect swelling, reduce wear, prevent running deviation, installing in original car blind hole
LED display	Size (LWH)	234934mm
	Data update frequency	1 time/3 second
	Power supply	Dashboard power
	Working temperature	0-80℃ >70℃, LED display will stop charging >80℃, LED display will stop working When LED display gets back to normal temperature, it will restore real-time monitoring status
	Function	High-pressure alarm (3 bar), low-pressure alarm (2 bar), high-temperature alarm (65℃), air leakage alarm, tire sensor low-battery alarm, dashboard embedded installation
Tire sensor	Installation mode	External	External	External	External	External	Built-in	Built-in	Built-in
	Size	Diameter: 23mm, Height: 15mm	Diameter: 18mm, Height: 13mm	Diameter: 23mm, Height: 15mm	Diameter: 18mm, Height: 13mm	Diameter: 23mm, Height: 15mm	LWH: 693215mm	LWH: 603015mm	LWH: 693215mm
	Dynamic balance detection	No need	No need	No need	No need	No need	Need	Need	Need
	Battery warranty	2-3 years	1-2 years	2-3 years	1-2 years	2-3 years	5-6 years	2-3 years	5-6 years
	Battery replacement	By user	By user	By user	By user	By user	By user	By manufacture	By user

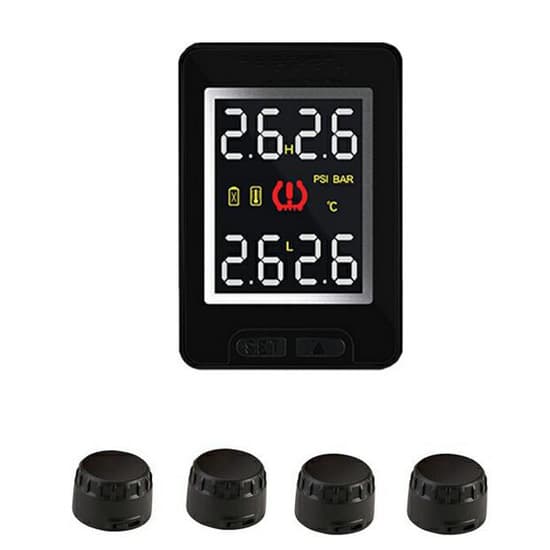

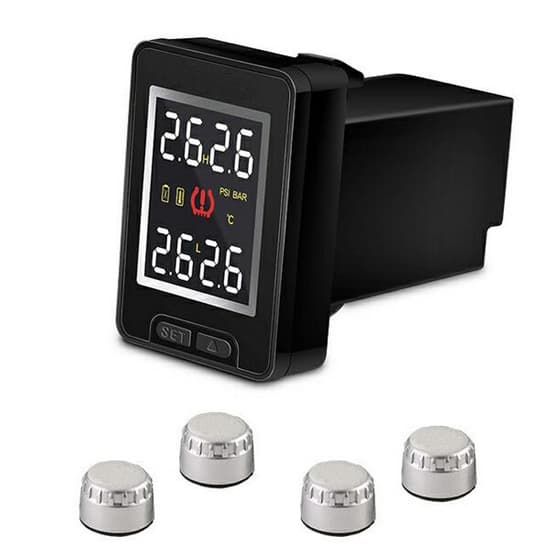

TPMS Display:

TPMS Sensors:

Mini External Sensor (WI Version) | Standard External Sensor (WF Version)

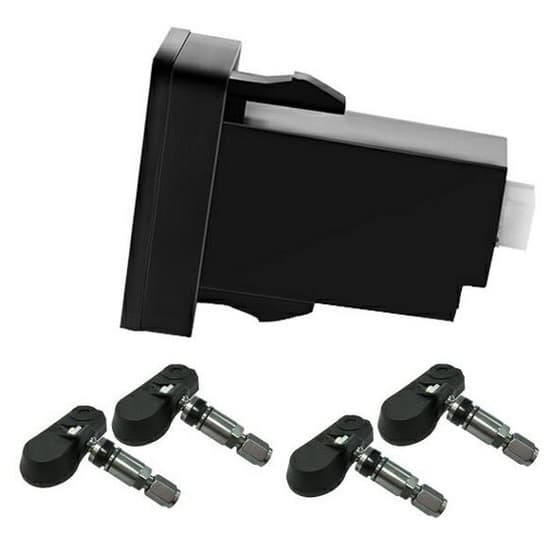

Standard Internal Sensor (TJ Version) | Upgraded Internal Sensor (NF+ Version)

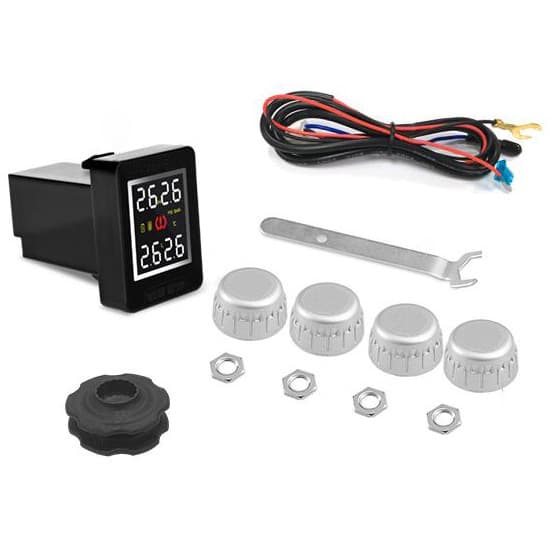

Package Included:

T-U912-WF1	T-U912-WI1

T-U912-WF2	T-U912-WI2

T-U912-TL	T-U912-NF+

T-U912-TJ	T-U912-TK

Tips: The detection method of TPMS
The indirect tire pressure monitoring system actually monitors the tire pressure by calculating the rolling radius of the tire. The direct tire pressure monitoring system directly installs on the air valve or replaces the original air valve. Its tire pressure sensor uses the internal sensor chip to perceive the slight changes in tire pressure and temperature when the tire is stationary and in motion, converts the electrical signal into a radio frequency signal, and uses an independent channel transmitter to transmit it into the receiver. So that the car owner can know the tire pressure and temperature of all the tires whatever the car is in driving or stands still.
Today’s cars are all direct tire pressure monitoring systems. The indirect tire pressure monitoring systems have basically been eliminated. Only a small number of cars produced in 2006 are equipped with indirect tire pressure monitoring systems.
The TPMS pressure sensor is generally installed on the wheel rim. The tire sensor senses the air pressure in the tire, converts the air pressure signal into an electrical signal, transmits the signal to the receiver through a wireless transmitter, displays various data changes, or alarms in the form of buzzing. The driver can inflate or deflate the tire in time based on the displayed data. If tire leaks, driver can also deal with it in time to avoid safety accidents.
