Name: Drill Press Vise, 3 in./4 in./5 in./6 in.
Brand: Tool
SKU: 276
Availability: InStock

Drill Press Vise, 3 in./4 in./5 in./6 in.

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

69 People watching this product now!

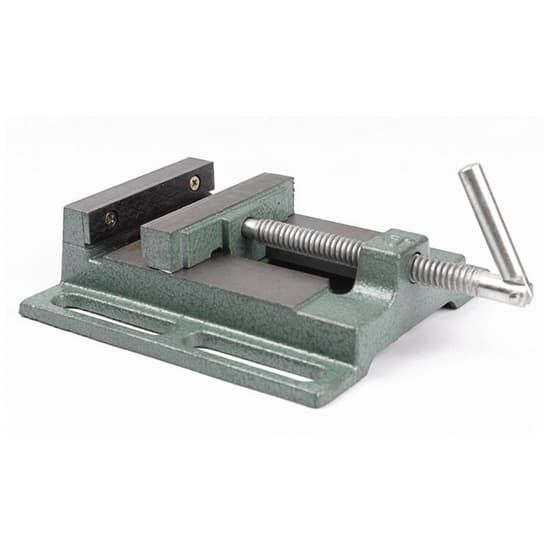

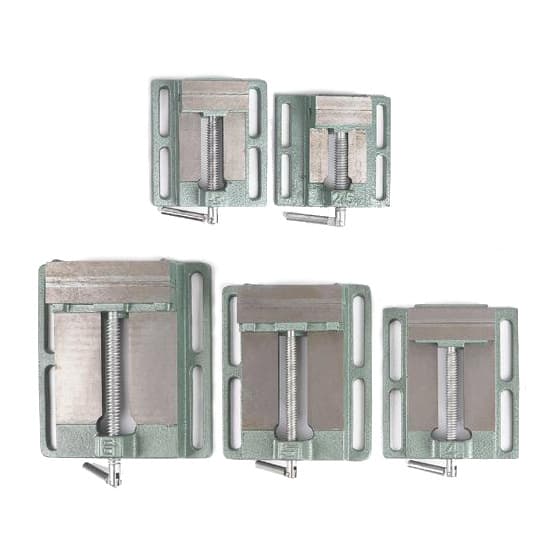

Drill press vise is a best tool to clamp any shapes of parts or pieces firmly with jaw width 2.5″, 3″, 4″, 5″ and 6″ for choice on drill press table. Made from high quality cast iron construction after heat treatment, the drill press vice features increased hardness and long use life. Designed with anti-slip carbon steel jaw, the vice resists wear and clamps workpiece tightly. With a 180 degree pivoting handle, it is also very convenient to adjust the jaw opening. Moreover, this drill press vise can work with small bench drills, electric drill stand, etc.

Specification

Model	T-PKQ-25	T-PKQ-30	T-PKQ-40	T-PKQ-50	T-PKQ-60
Material	Cast Iron
Size	2.5 inch	3 inch	4 inch	5 inch	6 inch
Jaw Width	65mm	79mm	100mm	125mm	150mm
Jaw Depth	20mm	20mm	22mm	24mm	25mm
Jaw Opening	65mm	84mm	108mm	125mm	150mm
Mounting Slot Distance	110mm	110mm	135mm	150mm	185mm
Overall Height	43mm	43mm	50mm	55mm	64mm
Weight	1.5kg	1.6kg	2.2kg	3.2kg	4.6kg

Note: The sizes are approximate.

Dimension Drawing

Tips: The use of drill press vise

Drill press vises are general-purpose fixtures that are often used to install small work pieces. It is considered as an accessory for milling machines and drill press, thus it is fixed on the workbench of the machine tool and used to clamp the workpiece for cutting.

The use of drill press vice is very simple. Rotate the lead screw with a handle, and drive the movable jaw to move through the lead screw nut to form tightening and loosening of the workpiece.

5 tips for using the drill press vise

The machined surface of the workpiece must be higher than the jaws, otherwise the workpiece must be raised with parallel pad irons.
In order to firmly clamp the workpiece and prevent the workpiece from loosening during grindign, it need to attach the smoother surface of the workpiece to the clamping surface of the jaw.
When clamping the workpiece, lightly hit the upper surface of the workpiece with a wooden hammer or a copper hammer to make the workpiece close to the clamping surface of the jaw.
When clamping a workpiece with poor hardness, in order to prevent the workpiece from deforming, some protective measures need to be taken to protect the weak part of the workpiece first.
If the workpiece is processed by scribing, the scribing disc or inner caliper can be used to correct the workpiece.
