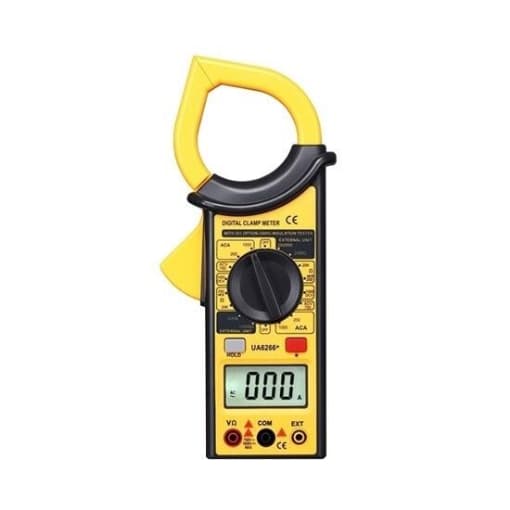

Clamp Voltage Meter, AC DC 1000A 1000V
Original price was: $74.63.$22.99Current price is: $22.99.
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
With the capability to measure up to 1000A of current and 1000V of voltage. The clamp voltage meter has versatile measurement modes, including AC/DC voltage, AC current, resistance, diode testing, and continuity checking. The power clamp meter is perfect for a variety of applications. It excels in industrial settings for measuring high currents and voltages in machinery and power systems. In residential environments, it helps electricians diagnose issues in home wiring and appliances. It’s also valuable in automotive repair for checking vehicle electrical systems, in HVAC maintenance for verifying system performance, and in renewable energy setups for monitoring solar panels and wind turbines.
Specification
| Basics | Model | T-CM-UA6266+ | |
| Weight | 310g | ||
| Size (L*W*H) | 230*70*37mm | ||
| Display | 4 digit LCD display | ||
| Maximum display value | 1999 | ||
| Power supply | DC 9V, 6F22 battery | ||
| Maximum jaw opening size | 28mm | ||
| Woring environment | Temperature: 5℃~35℃ (41℉~95℉), relative humidity:＜75% | ||
| Storage temperature | -10℃~+50℃ (14℉~122℉) | ||
| Accessories | A pair of test probes, a user manual, 6F22 battery | ||
| Functions | Item | Range | Accuracy |
| AC current | 1000A | ±(3.0%+10 digits) | |
| DC voltage | 1000V | ±(0.8%+3 digits) | |
| AC voltage | 750V | ±(1.2%+5 digits) | |
| Resistance | 2000MΩ | ±(5.0%+2 digits) | |
| Special functions | Diode test | Display forward voltage value of diode | |
| On-off buzzer | Continuity test buzzer | ||
| Data hold | Hold the reading when taking a measurement | ||
| Automatic power off | Automatic power off when 15 minutes no operation | ||
| Overload protection | Overload protection for 100% range | ||
| Range selection | Manual range selection | ||
| Backlight | Backlight for LCD display | ||
Features
- High Current and Voltage Measurement: Capable of measuring up to 1000A for current and 1000V for voltage, making it suitable for both heavy-duty industrial and general electrical applications.
- Versatile Measurement Modes: Supports multiple measurement modes, including DC voltage, AC voltage, AC current, resistance (Ω), diode testing, and continuity buzzer.
- Overload and Burnout Protection: Equipped with full-range overload protection to prevent damage to the meter and ensure user safety during high-voltage or high-current measurements.
- Ergonomic and Durable Design: Features a non-slip, drop-resistant body design, enhancing the durability of the device while providing a comfortable grip during use.
- LCD Backlight Display: Comes with a clear LCD display with a backlight feature for easy reading of measurements even in low-light conditions.
- Data Hold Function: Includes a HOLD function that allows users to lock and retain the current measurement on the display, ensuring accurate data recording.
- Precision Control Knob: The meter is equipped with a precise rotary switch, allowing users to effortlessly select and switch between different measurement functions.
Structure
Tips: Why is the diode test not displaying the correct forward voltage?
If the diode test is not displaying the correct forward voltage, the diode may be faulty, or the meter may not be set to the correct mode. Double-check that the meter is in diode test mode. Also, verify the condition of the diode by testing it in a known good circuit. If the issue persists, the diode itself might be defective, or the meter’s diode testing feature might require recalibration or repair.
