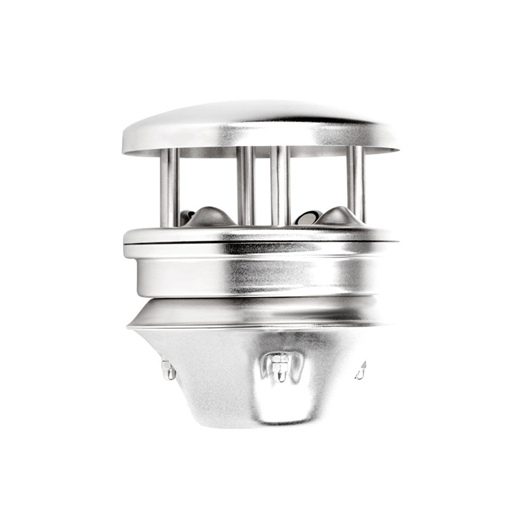

This ultrasonic anemometer is made of all stainless steel with an integrated design for greater ruggedness and durability, and is able to effectively combat salt spray and other harsh environments; it is suitable for a variety of climatic conditions, and has a lifespan of up to 5 to 10 years in field use. With an optional heating element, condensation or icing on the ultrasonic transmitter/receiver surface can be prevented, especially in high humidity or low temperature environments.

Specification

Model	BRW200-204
General Parameters
Material	Stainless steel
Output Signal	4~20 mA/RS485 (optional)
Operating Voltage	DC 9-24V
Operating Current	<35 mA (12V DC) 0.6~1A,15~25 W (with heating element)
Protection Level	IP66
Baud Rate	9600, 19200, 38400, etc. (default 9600)
Byte Format	1 start bit, 8 databits, 1 stop bit (no parity check)
Electrical Connection	Aviation plug
Operating Temperature	-20℃~+60℃
Operating Humidity	0%~95% (non-condensing)
Wind Speed Parameters
Measurement Range	0~70 m/s
Starting Wind Speed	0.1 m/s
Accuracy	±0.3 m/s or ±3% (0~30 m/s) (whichever is greater), ±5% (30~70 m/s)
Resolution	0.1 m/s
Wind Direction Parameters
Measurement Range	0~360°
Starting Wind Speed	0.1 m/s
Accuracy	±2°
Resolution	0.1 °

Stainless Ultrasonic Anemometer Features

Hidden ultrasonic probe to avoid environmental interference.

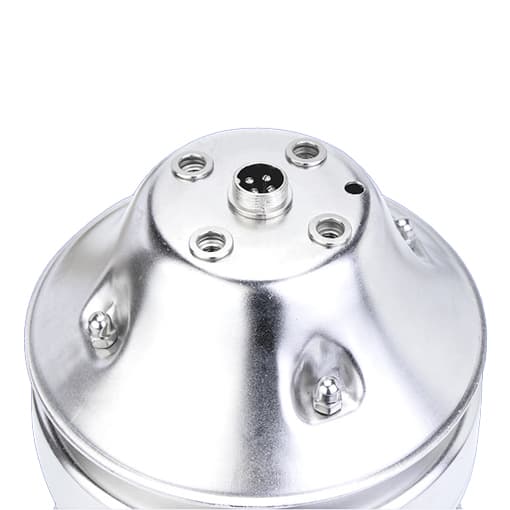

Four-core aviation plug at the bottom, excellent waterproof and easy to install simultaneously.
Almost 0 start wind speed, 360° all-round measurement of wind speed and direction.
IP66 protection level, fearless of heavy rain, wind, snow and frost.

Applications

Tips: What does 10 mph wind look like?

Wind at 10 mph typically appears as a moderate breeze. It can cause leaves and small twigs to move, and you might see a slight rustling in the trees. Flags will be extended and fluttering, and you could feel the wind on your face, making it slightly challenging to keep a hat on. It’s a common wind speed for a pleasant day outdoors but could make cycling a bit more difficult.

Output Signal *

4-20mA

RS485

Heating Element *

Yes
