Hand held electric concrete vibrator construction tool has high quality, factory price, free shipping and long service life, usually is used to build bridge, tunnel, harbor and other constructions. It operates with 1100W electric power, 1-10m long shaft at 2840VPM working speed.

Description

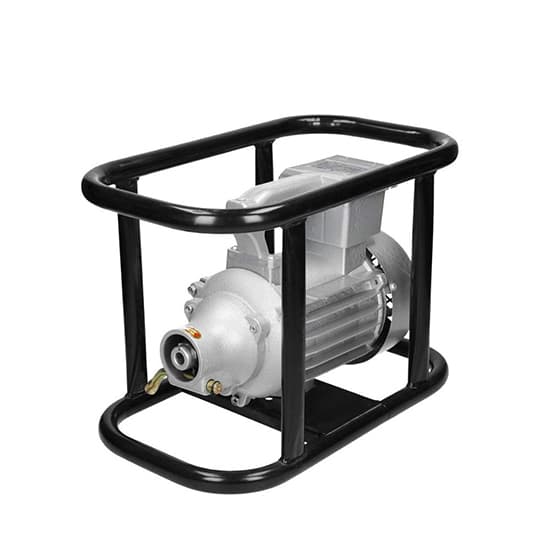

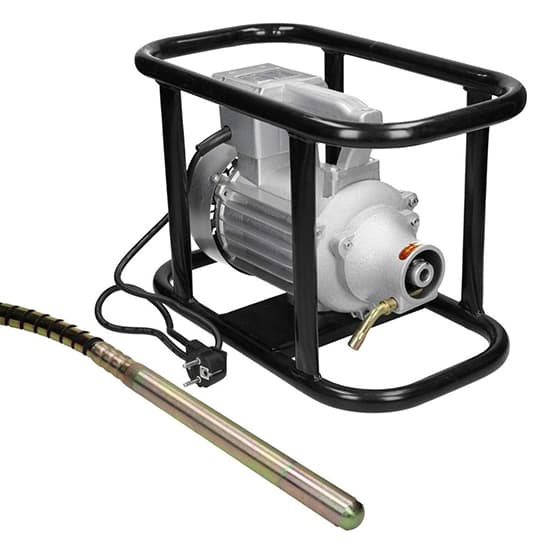

Concrete Vibrator

Model	T-ZN50FG
Type	portable concrete vibrator
Power	1.5HP
Voltage	220V
Frequency	50Hz
Vibration Frequency	2840 VPM
Packing Size	425 * 260 * 280mm
Vibrator Weight	17Kg
Certification	CE
Packing	caton
Application	construction, patching and other repair jobs

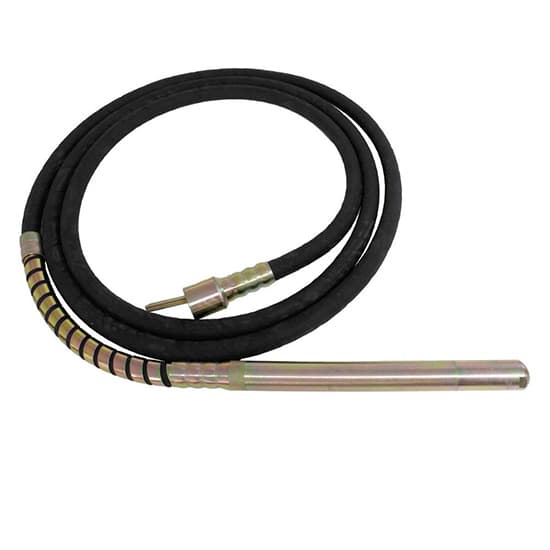

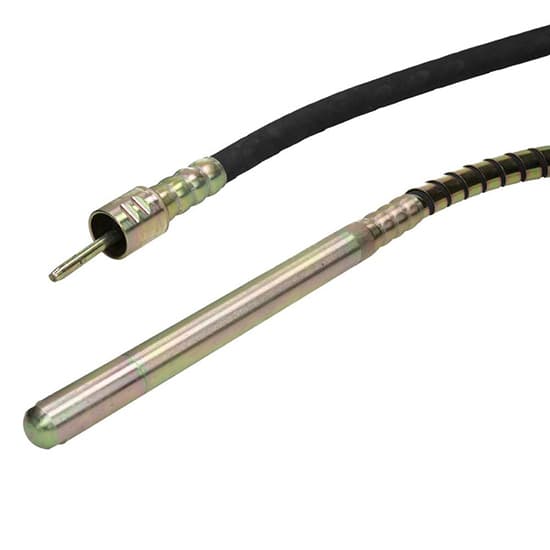

Matched vibrator shaft (optional)

Model	ZX32	ZX38	ZX45	ZX60
Diameter (mm)	32	38	45	60
Vibrating Frequency (hz)	184	185	186	187
Outside Diameter of Flexible Hose (mm)	30	30	32	36
Inner Diameter of Flexible Shaft (mm)	10	10	12	13
Max. Vibration Force (kn)	5.104	5.485	5.932	6.704
Vibrating Amplitude (mm)	1.13	1.18	1.2	1.28
Shaft Length (m)	4 / 6 / 8 / 10

Features

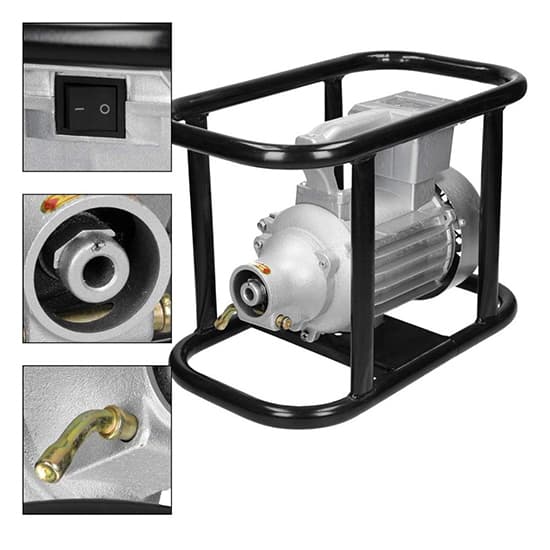

High working efficiency: The vibrator is driven by motor, transmited by flexible shaft, then gains vibration frequency of 2840 vibrations per minute to remove air bubbles and helps concrete settle faster.
Unique design: The compact design is easy to hold, it operates with high quality silicon steel sheet, provides matched vibrator shafts and the diameter of shaft is optional for user to choose.
Long service life: The electric concrete vibrator is combined with a compact, powerful and sturdy induction motor for saving energy, its full copper motor and less heat produced make its life more longer.
Application: Concrete vibrator works with concrete vibrator shaft, is suitable to the commodity concrete and widely applies to construction of bridge, tunnel, harbor, large-scale dam, water wheel power plant and architectural engineering.

Tips: Function of concrete vibrator

When construction workers use a concrete mixer to poure and mix concrete, it is necessary to remove the air bubbles within the mixture, tamp to make the concrete densely combined and eliminate cavities or honeycomb-like spaces to improve cement’s longevity and strength and ensure the quality of concrete structures.
The concrete vibrator is a device that uses power to generate frequent vibrations through a certain device as a vibration source and transmits this vibration through flexible shaft to the concrete to vibrate it so as to remove air bubbles and helps concrete settle faster, leaving the final product a more compact and level slab. Thus, using a concrete vibrator to assist concrete during its settling period has proven to be a worthwhile method that embraces long-term durability and high working efficiency.
