50 People watching this product now!

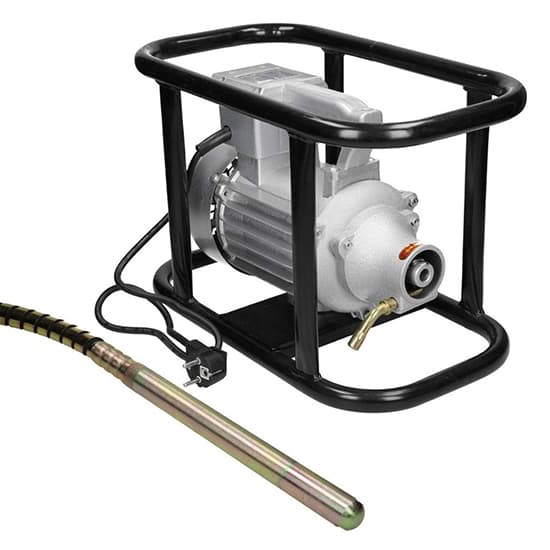

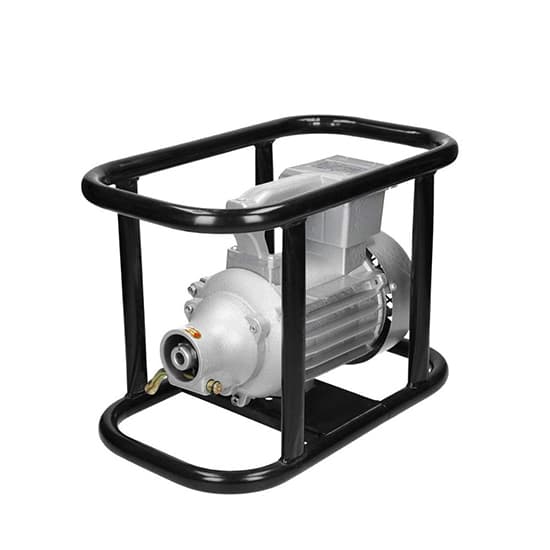

Hot sale CE portable electric concrete vibrator features 2HP (1500W) power, 50Hz frequency, 2840 vibrations per minute for maximum vibration efficiency, 1-12m long matched vibrator shaft for easy use and long reach.

Description

Concrete Vibrator

Drive Model	T-ZN70FG
Drive Type	portable concrete vibrator
Power	2HP
Voltage	220V
Frequency	50Hz
Vibration Frequency	2840 VPM
Packing Size	445×260×280mm
Vibrator Weight	17kg
Certification	CE
Packing	caton
Application	construction, patching and other repair jobs

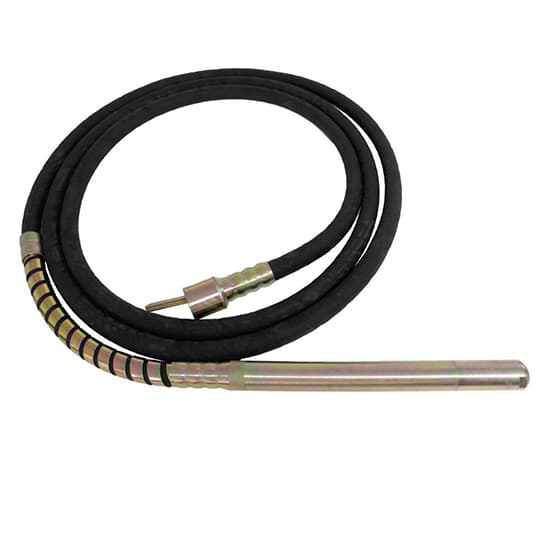

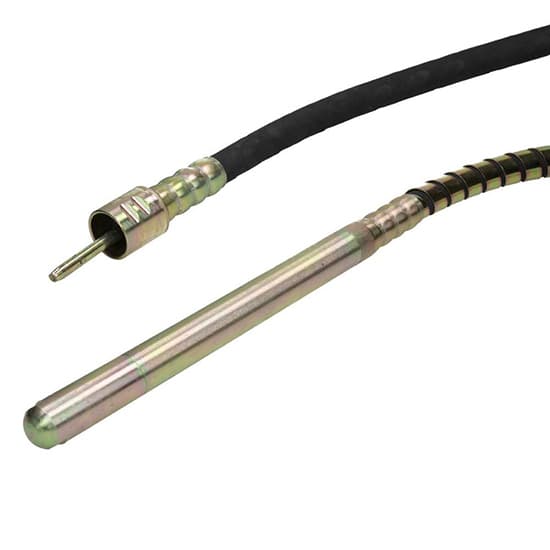

Matched vibrator shaft (optional)

Model	ZX32	ZX38	ZX45	ZX60
Diameter (mm)	32	38	45	60
Vibrating Frequency (hz)	184	185	186	187
Outside Diameter of Flexible Hose (mm)	30	30	32	36
Inner Diameter of Flexible Shaft (mm)	10	10	12	13
Max. Vibration Force (kn)	5.104	5.485	5.932	6.704
Vibrating Amplitude (mm)	1.13	1.18	1.2	1.28
Shalft Length (m)	4 / 6 / 8 / 10

Features

High working efficiency: The vibrator is driven by motor, transmited by flexible shaft, then gains vibration frequency of 2840 vibrations per minute to remove air bubbles and helps concrete settle faster.

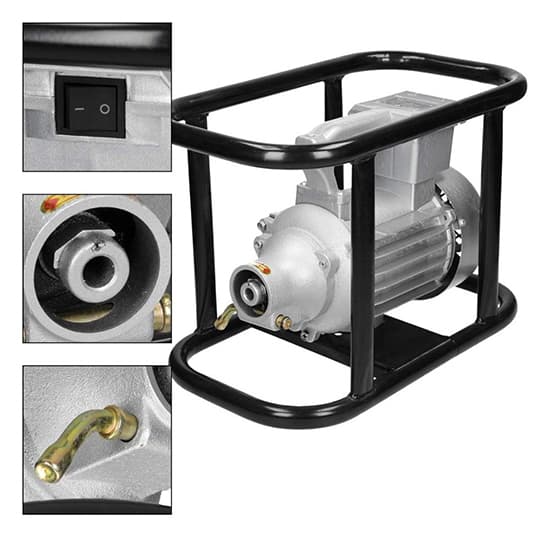

Unique design: The compact design is easy to hold, it operates with high quality silicon steel sheet, provides matched vibrator shafts and the diameter of shaft is optional for user to choose.
Long service life: The electric concrete vibrator is combined with a compact, powerful and sturdy induction motor for saving energy, its full copper motor and less heat produced make its life more longer.
Application: Concrete vibrator works with concrete vibrator shaft, is suitable to the commodity concrete and widely applies to construction of bridge, tunnel, harbor, large-scale dam, water wheel power plant and architectural engineering.

Tips: What is a concrete vibrator?

A concrete vibrator is a machine used for the purposes of construction. These machines feature several different shapes and sizes. Some are smaller and operate strictly with battery power while others are larger and driven by motor with electric power cord. It is a wise choice for users to select suitable concrete vibrator to help settle the concrete faster to achieve ideal operation effect.

Shaft Diameter *

Shaft Length (Optional) *

10m
