Description

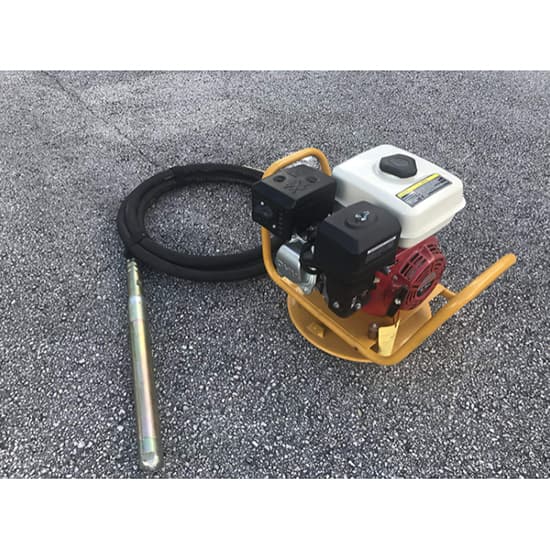

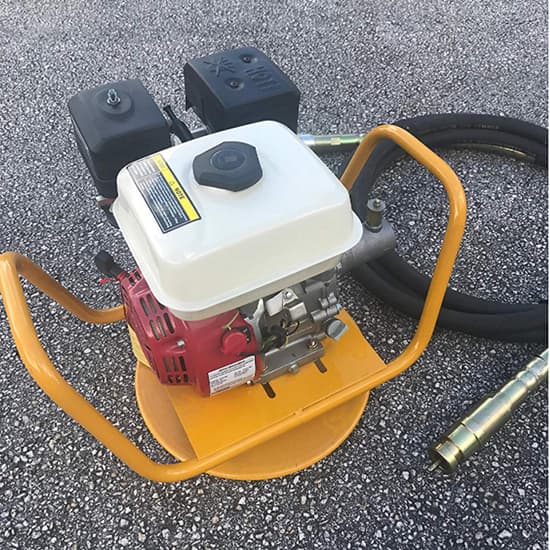

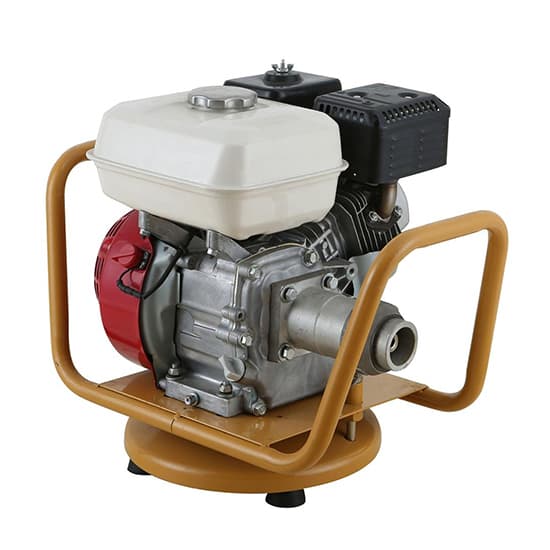

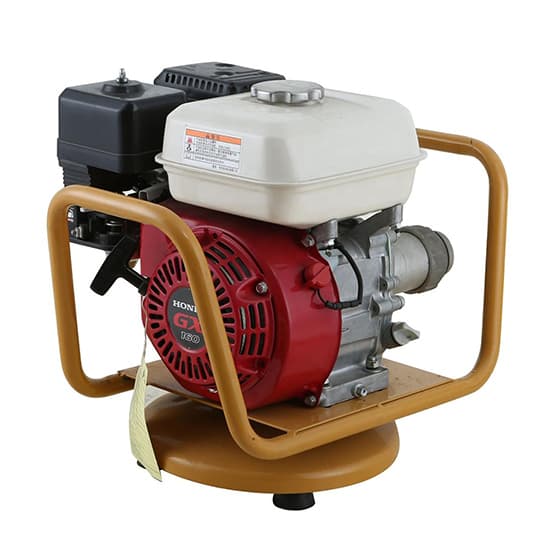

Gasoline engine driven concrete vibrator is powered by a 5/5.5/6.5HP engine, 3600VPM rotary speed. This concrete vibrator has 4-6m flexible hose with different concrete poker sizes to all types of work situations.
Description
| Model | T-ZX-HRC | ||
| Engine Type | single sylinder, 4-stroke, air cooled, gasoline engine | ||
| Engine Brand | Honda GX160 | Robin EY20 | Chinese Petrol Engine |
| Power of Engine | 5.5 HP | 5 HP | 6.5 HP |
| Frequency | 50Hz | ||
| Speed No-load | 3600VPM | ||
| Hose Diameter | 36mm | ||
| Matched Drive Flexible Hose Length | 4 / 5 / 6m (optional) | ||
| Flexible Hose Weight | 12.6kg / 14.7kg / 16.8kg | ||
| Certification | CE | ||
| Warranty | 1 year | ||
| After-sales Service | video technical support, online support, free spare parts | ||
| Net Weight / Gross Weight | 20.5Kg / 22.0Kg | ||
| Driver Shipping Size (L*W*H) | 510 * 390 * 430mm | ||
| Shaft Shipping Size (L*W*H) | 750 * 750 * 50mm | ||
| Package Including | concrete vibrator * 1 + water pump * 1 + flexible hose * 1 | ||
Features
- High working efficiency: The vibrator is driven by motor, transmited by flexible shaft, then gains vibration frequency of 3600 vibrations per minute to remove air bubbles and helps concrete settle faster.
- Air-cooled gasoline engine eqquipped: The gasoline engines of concrete vibrator ranging from 5HP to 6.5HP deliver smooth, reliable power and low fuel consumption and stable rpm range. The engines have easy starting and quiet running capabilities.
- Unique design: The compact design is easy to hold, it operates with high quality silicon steel sheet, provides matched vibrator shafts and the diameter of shaft is optional for user to choose.
- Long service life: The gasoline engine concrete vibrator is combined with a compact, powerful and sturdy induction motor for saving energy, its full copper motor and less heat produced make its life more longer.
- Application: Concrete vibrator works with concrete vibrator shaft, is suitable to the commodity concrete and widely applies to construction of bridge, tunnel, harbor, large-scale dam, water wheel power plant and architectural engineering.
Tips: The application and advantages of gasoline engine concrete vibrator
1. Application
This gasoline engine concrete vibrator is widely used in various ductility, semi-ductility and hard concrete and is suitable for concrete pour of various bridges, tunnels, floor foundations and beams in remote areas. It is an indispensable important tool in various concrete constructions in areas without electricity or power outages.
2. Advantages
- This gasoline engine concrete vibrator machine is composed of gasoline engine, flexible shaft and hose and stick head. Its high frequency vibration is obtained inside the stick head. The flexible shaft is rotating at low speed so it can reduce the wear of the flexible shaft and bearing, increase the service life and improve operating conditions.
- The concrete vibrator adopts a non-loose flexible shaft, which is convenient for replacement and repair of the flexible shaft.
- The gasoline engine has compact structure, low fuel consumption, easy operation and maintenance, stable operation, reliable work and has the characteristics of one engine with multiple functions.
