Name: Diamond Core Drill Machine, 180mm, 3380W
Brand: Tool
SKU: 713
Availability: InStock

Diamond Core Drill Machine, 180mm, 3380W

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

29 People watching this product now!

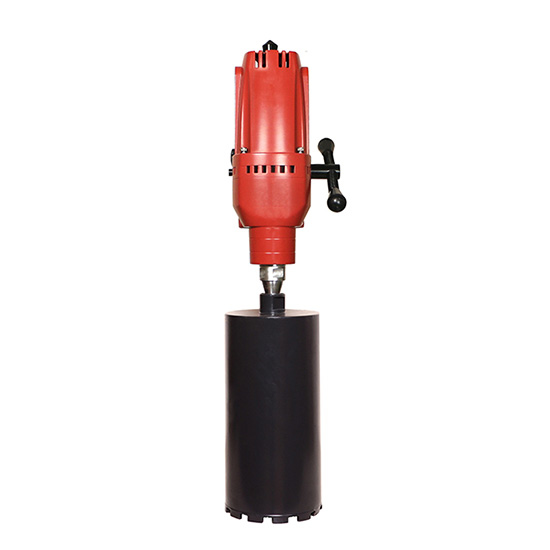

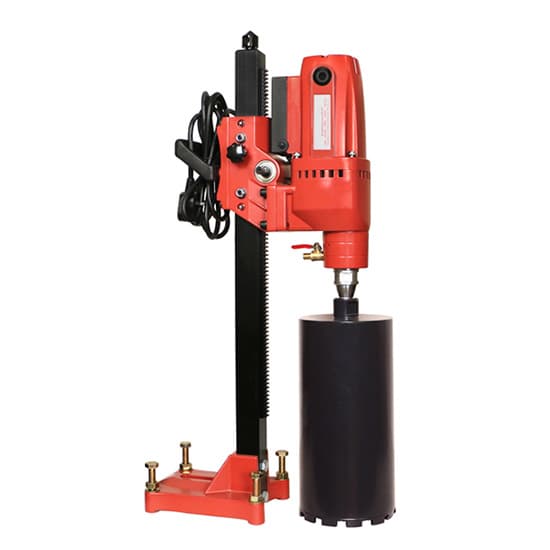

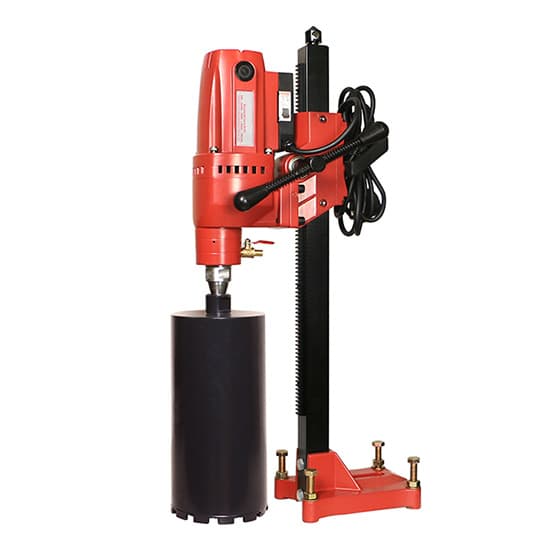

Wholesale Diamond coring rig with small stand features wet / dry dual use, 3380W electric power, 750 r/min working speed, 15-185mm drilling diameter, has fast drilling of reinforced concrete, brick, block and stone with vertical model, ideal for professional drilling applications.

Description

Model Number	T-185E
Power Source	electrical power
Drill Type	wet / dry dual use
Drilling Range	15-185mm (3/5 – 7-3/10 inch)
Max. Drilling Diameter	185mm (7-3/10 inch)
Rated Voltage	110V / 220V / 240V
Rated Frequency	50-60Hz
Rated Input Power	3380W
No-load Speed	0-750 r/min
Dimensions	335240900mm
Characteristics	vertical
Net Weight / Gross Weight	22kg / 25.8kg
Certification	CE
Package	single item
Package Size	335240900mm
Package Type	large carton box
Application	reinforced concrete, rocks, ceramics, glass and fire-proof materials

Features

Advantages: The vertical diamond core drill uses bulit-in and outside adjustable friction clutch and is designed with soft starting as well as overcurrent protection so it is characterized by flexible mobility, economy and durablity, safety and reliability.
Application: Diamond core drilling machine is a new tool which can be used to drill holes on reinforced concrete, rocks, ceramics, glass and fire-proof materials, is widely used in construction quality inspection, airport runway construction, building installation, the installation of water, electricity, heat and gas and contruction of railway, bridges and tunnel.

Details

Power Plug Selection

(Note: Power plug can be customized based on your local machine standards.)

Tips: Some inspection work that needs to be done before drilling

1. Check the safety of all core drill mechanisms and fill all lubrication parts with lubricating oil.
2. Loosen all friction clutches and remove irrelevant debris on the drilling rig.
3. Check the rotation direction of the motor. The direction of rotation should be clockwise.
4. All sorts of personal protective equipments are prepared.
5. Drilling can begin after 3-5 minutes no-load operation and everything is normal.
