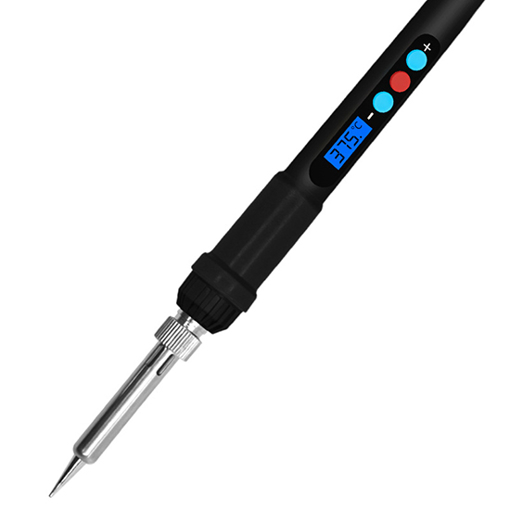

Name: Digital Electric Soldering Iron, 60W
Brand: Tool
SKU: 139
Availability: InStock

Digital Electric Soldering Iron, 60W

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

59 People watching this product now!

The electric soldering iron is the best soldering tool for large electronic equipment and small/micro components. LED digital display and temperature controlled function make the soldering process more clear and precise.

Specification

Model	T-ESI-501
Heating Type	Internal heating type
Temperature Control Method	Adjustable temperature
Rated Voltage	AC 110V/60Hz, 220V/50Hz
Rated Power	60W
Heating Core	Ceramic heating core
Total Length	205mm
Adjustable Temperature Range	180℃~500℃/356℉~932℉
Accuracy	±5℃
Temperature Correction Range	±99 unit
Wire Length	1.7m
Net Weight	120g

Features

Temperature adjustment of the digital electric soldering iron is accurate, the temperature can be quickly raised to the set value in 2 seconds.
Digital electric soldering iron uses ceramic heating core, high sensitivity, easy to replace.
Anti-oxidation soldering iron bit, anti-rust, fast soldering, effectively preventing tin climbing.

Digital Electric Soldering Iron Structure Diagram

Soldering Iron Bit Replacement


1. Unscrew the casing pipe.	2. Take out the soldering iron bit.	3. Install the new solder iron bit and screw the casing pipe.

Tips: Value compensation method for digital electric soldering iron.

After the digital electric soldering iron is tested by temperature tester, if it is found that the temperature value displayed on digital display is inconsistent with the actual measured value, the temperature can be calibrated through the compensation function.

In normal working state, press and hold the + and – buttons at the same time to enter the compensation setting state.
After entering the compensation setting state, the LCD will flash and display the compensation temperature setting value. According to the actual measured temperature value, users can input value through the H)/- two keys. The specific method is as follows:
If the set temperature is 350, but the actual tested temperature is 340, users only need to modify the set value of compensation temperature to 340. If the set temperature is 350, but the actual tested temperature is 360, users only need to modify the set value of compensation temperature to 360. After the setting is completed, it will automatically exit after 5s, and then enter normal working state.
The temperature correction range of digital electric soldering iron is ±99 units, and the specifications of this range are hidden (invisible) to users. Adjustments beyond this range will no longer be supported.
