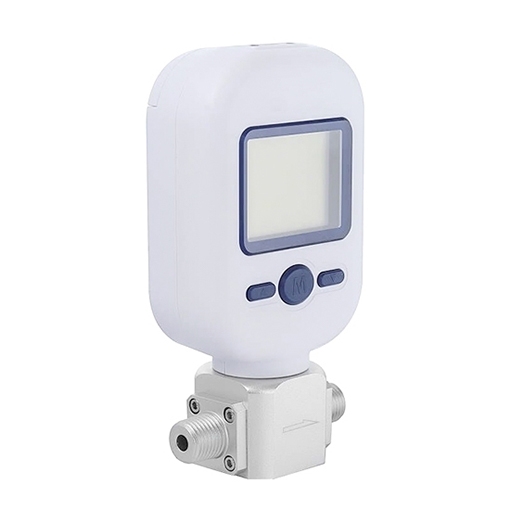

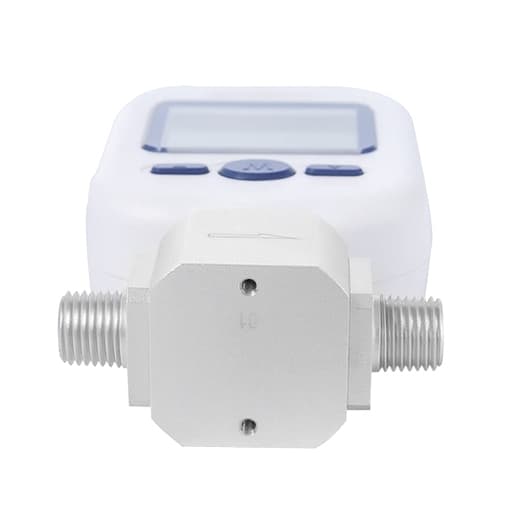

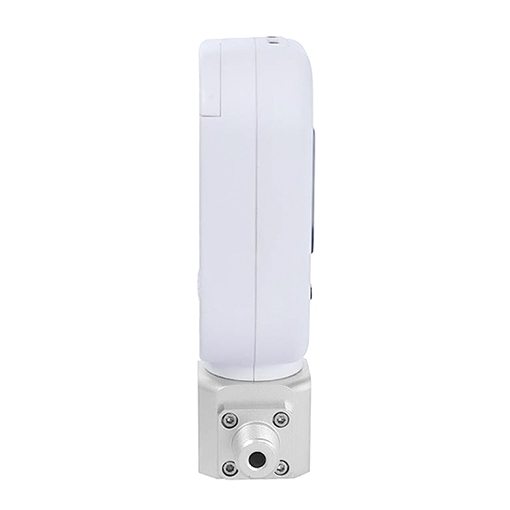

Digital Gas Mass Flow Meter, Oxygen/Carbon Dioxide/Nitrogen, 0-20L/min
Price range: $48.99 through $73.99
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
High quality suppliers offer gas flow meter, which can provide you with accurate gas flow measurement. The digital display screen provides clear readings, and the compact design makes it easy for users to take measurements on the move.With three flexible flow ranges of 0-20L/min, 0-100L/min and 0-250L/min, the gas flow meter is widely used in the measurement of air, oxygen, nitrogen, argon and carbon dioxide.
Specification
| Model | T-MF5706 | T-MF5708 | T-MF5712 | |
| Flow Range | 0~20L/min | 0~100 L/min | 0~250 L/min | |
| Power Supply | 4 AA batteries (LR6) or 5-24V DC | |||
| Power Adapter | Input: 100-240V AC, 50/60Hz, Output: 7V DC, 0.2A | |||
| Power Consumption | ≤10mW | |||
| Signal Output | RS 485 | |||
| Display | LCD | |||
| Display Unit | Instantaneous flow rate: L/min, Flow accumulation: m3 | |||
| Accuracy | ± (2.0+0.5FS)% | |||
| Instantaneous Flow Resolution | 0.01 L/min | |||
| Flow Accumulation Resolution | 0.001 m3 | |||
| Working Pressure | ≤0.8MPa | |||
| Pressure Loss | ≤600Pa | ≤1000Pa | ≤2000Pa | |
| Working Temperature | -10℃ ~ +55℃ | |||
| Humidity | 0~95%RH (non-condensing) | |||
| Keyboard | 3 keys | |||
| User Interface | Type-C USB port (This interface is connected to the power adapter for power supply, power cable is 0.5m, and it can also be used as a connection interface for 485 communication.) | |||
| Calibration | Air @20℃, 101.325kPa | |||
| DN | 6mm | 8mm | 12mm | |
| Mechanical Connection | NPT 1/4″ | NPT 3/8″ | NPT 1/2″ | |
| Weight | 185g (Copper body) | 270g (Aluminium alloy body) | 350g (Aluminium alloy body) | |
| Protection Class | IP40 | |||
| Gas * | Air, N2, O2, Ar, CO2. For other gases, please contact us. |
|||

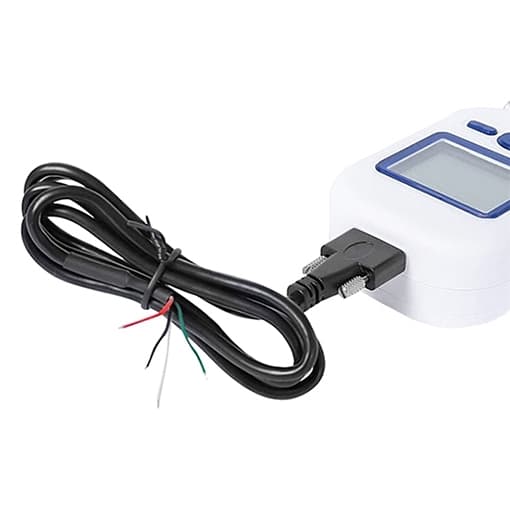

| Accessories | 1. Power adapter, Type-C USB with 0.5m cable 2. RS485 data cable, Type-C USB port |
|||
Digital Gas Mass Flow Meter Document
- Digital Gas Flow Meter User Manual.pdf
Digital Gas Mass Flow Meter Dimension: (Unit: mm)
| Model | L | W | D |
| T-MF5706 | 67 | 40 | NPT 1/4 |
| T-MF5712 | 98 | 50 | NPT 1/2 |
Digital Gas Flow Meter Accessories (Optional)
ATTENTION: The optional miniUSB cable is used to connect an external power supply to RS485 communications.
Digital Gas Mass Flow Meter Applications
Tips: How do digital gas flow meters display and record data?
Digital gas flow meters are usually equipped with an LCD display that shows the gas flow rate, cumulative flow rate and other parameters in real time. Many models also support a data logging function, which allows the measurement data to be stored in the internal memory or exported to an external device via an interface (e.g. USB, RS485, etc.). Some advanced models also support data transfer to the cloud via wireless communication for remote monitoring and data analysis.
| Gas * | , , , , , |
|---|---|
| Flow Range * | , , |
