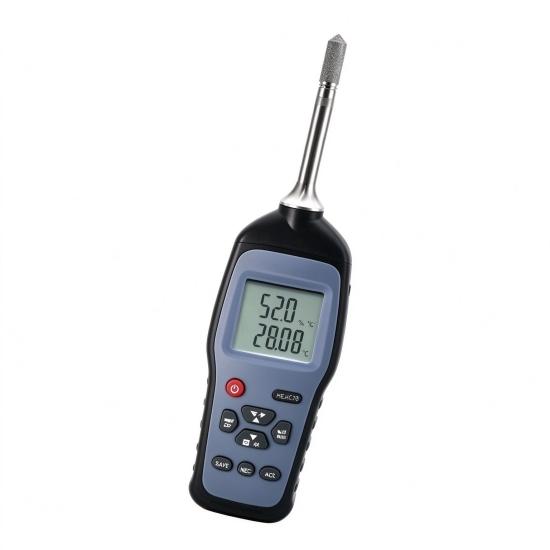

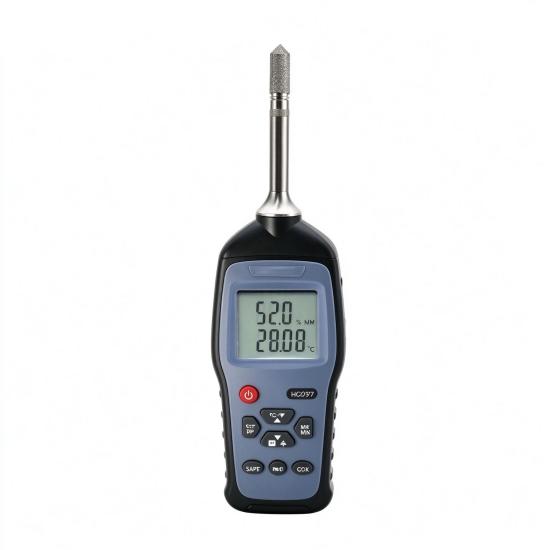

Designed for precise HVAC, cleanroom, and manufacturing audits, this handheld dew point meter operates from -30℃ to 80℃ with ±0.1℃ accuracy. Equipped with interchangeable probes and a clear electronic screen, it ensures flexible, real-time quality control in the field. Plus, built-in data logging automatically exports up to 99 datasets directly into spreadsheets, streamlining your environmental compliance and long-term facility monitoring.

Specification

Model	T-HG970
Environment temperature
Measurement Range	-30~80℃ (-22~176°F)
Accuracy	±0.1 ℃
Resolution	0.01 ℃/°F
Sampling Frequency	1 time per second
Dew point temperature
Dew point temperature range	-30 ~ 80 ℃
Dew point temperature range	(See the “Dew Point Accuracy Table” for details on accuracy)
Relative Humidity
Measurement Range	0~100%RH
Accuracy	±1.5%RH(0%RH~80%RH,25℃)
Resolution	0.1%RH
Response Time	Less 10S (90% 25℃,wind speed 1m/s)
Wet Bulb Temperature
Wet Bulb Temperature Range	-20 ~ 60 ℃
Other
Records	32000 records (Recorder function)
Store-in	99 groups (Special data can be manually saved on demand, additional saving, directly read on the display)
Power	A standard 9V 6LR61 or 6F22 battery
Battery Life	About 300 hours(use 6LR61 9V alkaline battery)
Operating Environment	0 ~ 40℃ (32 ~ 104°F), < 80% RH Non – Condensing
Storage environment	-10~ 60℃ (14 ~ 140°F), <80% RH Non – Condensing
Weight and Size	About 200g(Battery included not including the probe),215mm58mm33mm
Probe Rod Length	Stainless steel powder sintering protective cover
Probe Rod Length	Stainless steel grid protective cover

Features

Easy Maintenance & Probe Replacement: Supports software self-calibration and standalone probe swap to cut long-term maintenance costs.
32,000 Data Logging & Quick Retrieval: Stores up to 32,000 readings with rapid access to 99 key datasets for fast on-site verification.
Ultra-Portable with Backlit Display: A lightweight 200g body powered by a 9V battery, featuring a clear backlit screen for any lighting condition.
Multi-Format Data Export: Direct USB connection automatically generates spreadsheets and exports in PDF, XLS, and CSV formats.
Versatile & Practical Functions: Features ℃/℉ switching, Max/Min/Hold locking, data management, and Auto Power-Off.

Details

Applications

This handheld dew point meter is not only suitable for pharmaceutical manufacturing, indoor air Quality, industrial equipment maintenance and wine cellar storage, but can also be applied to any temperature, humidity, and dew point testing that falls within its measurement range.

FAQs

Q: Can I see temperature, humidity, and dew point all at once on the screen during field checks?

A: Yes, the electronic screen displays all three parameters simultaneously. Temperature, relative humidity, and dew point update in real time on a single view, so you don’t need to manually switch between menus while on-site.

Q: Is the built-in memory for 99 datasets enough, and what happens when it gets full?

A: 99 slots are plenty for standard inspection rounds. When you hit the limit, simply connect the unit to generate and export your spreadsheets to a computer. Once your files are backed up, clear the memory on the device to free up space for your next run.

Q: Why does the new probe feel loose or refuse to tighten properly when I try to install it?

A: That usually happens if the module isn’t pushed in far enough. Make sure to align the pins and turn the nut counterclockwise two or three times to engage the threads, then press the probe shaft firmly inward toward the main body until it seats properly before tightening the nut all the way.

Q: Why should I swap out the battery immediately as soon as the low-battery icon shows up?

A: A weak battery can cause voltage drops that compromise sensor accuracy and stability. Swapping in a fresh 9V battery as soon as the warning appears ensures your readings remain precise-just remember to latch the cover securely afterward.

Q: Can I use isopropyl alcohol or heavy-duty cleaners if the housing gets greasy in the field?

A: Avoid alcohol, harsh solvents, or abrasive chemicals, as they can degrade the protective housing. Stick to a soft cloth lightly dampened with mild soapy water to clean the body, then wipe it dry.
