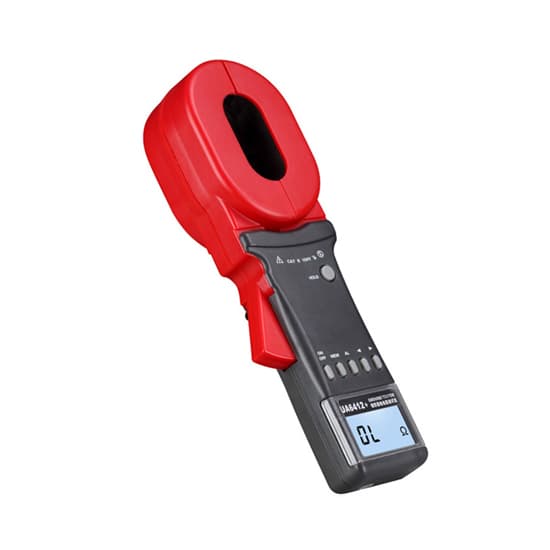

Name: Earth Clamp Meter, Resistance Test/Audible and Visual Alarms
Brand: Tool
SKU: 1350
Availability: InStock

Earth Clamp Meter, Resistance Test/Audible and Visual Alarms

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

55 People watching this product now!

4-digit LCD display, 47mm x 28.5mm ensures that readings are visible at a glance, enhancing user efficiency. The earth clamp meter is designed with fully automatic mode switching, which simplifies the operation by automatically adjusting to the appropriate measurement mode. To enhance safety and usability, the device is equipped with both audible and visual alarms. These alarms activate when a measured value exceeds a preset threshold.

Specification

Model	T-CM-UA6412+
Resistance Measurement Range	0.01 Ω-200 Ω
Resistance Resolution	0.001 Ω
Data Storage Capacity	99 groups
Audible Alarm	“Beep-Beep-Beep” sound; press AL key to turn on/off
Alarm Threshold Setting Range	Resistance: 1-199 Ω
Power Supply	6V DC (4 x AA alkaline batteries)
Operating Temperature	-20℃ to 55℃; 10% RH-90% RH
Display	4-digit LCD, dimensions: 47mm x 28.5mm
Pin Dimensions	65mm x 32mm
Pin Opening Size	32mm
Instrument Weight	116g
Instrument Dimensions	285mm x 85mm x 56mm
Protection Level	Double insulation
Structure Category	Pin-type CT
Mode	Fully automatic switching
External Magnetic Field, Electric Field	<40A/m; <1V/m
Single Measurement Time	0.5 seconds
Resistance Measurement Frequency	>1KHz

Features

High Data Storage Capacity: Stores up to 99 groups of measurement data for comprehensive record-keeping.
Precise Resistance Measurement: Measures resistance within a 0 to 200 Ω range with high accuracy, suitable for various grounding applications.
Clear LCD Display: Features a 4-digit LCD screen for easy reading of measurement results.
Automatic Mode Switching: Automatically switches between different measurement modes, enhancing ease of use.
Audible and Visual Alarms: Provides alarms for threshold breaches, ensuring timely alerts during testing.
Durable and Safe Design: Double insulation and a silicone casing offer enhanced safety and durability for prolonged use.

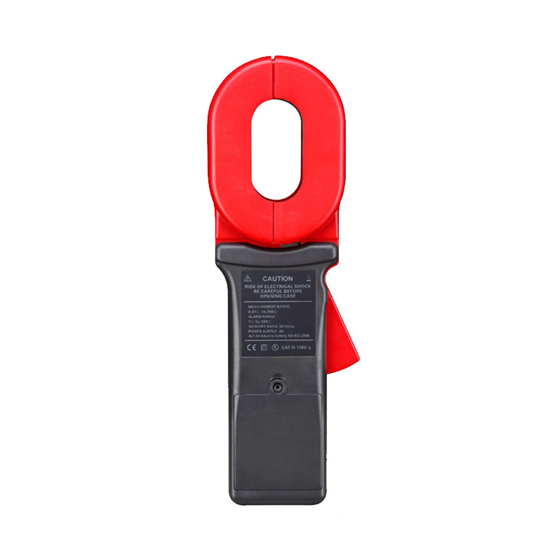

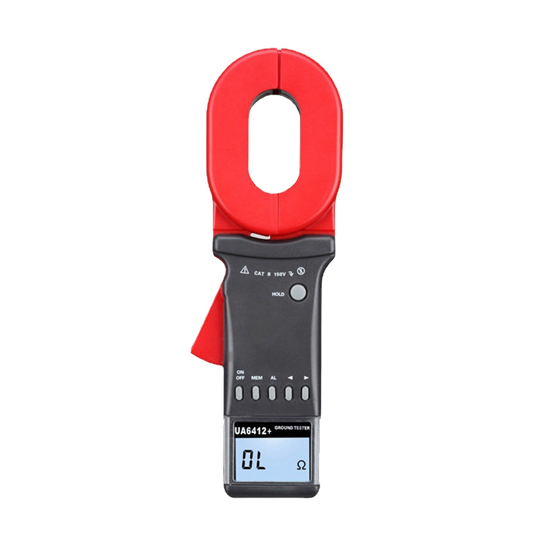

Structure

Tips: Why is there no continuity sound during a continuity test?

If you don’t hear a sound during a continuity test, it could be because the circuit has too much resistance or the test leads are not properly connected. Ensure that the circuit is closed and has minimal resistance, as high resistance can prevent the continuity sound from being triggered. Also, check that the test leads are securely connected to both the meter and the circuit. If the leads are worn or damaged, replace them with new ones. If the continuity function still doesn’t work, the meter might need to be tested or serviced.
