69 People watching this product now!

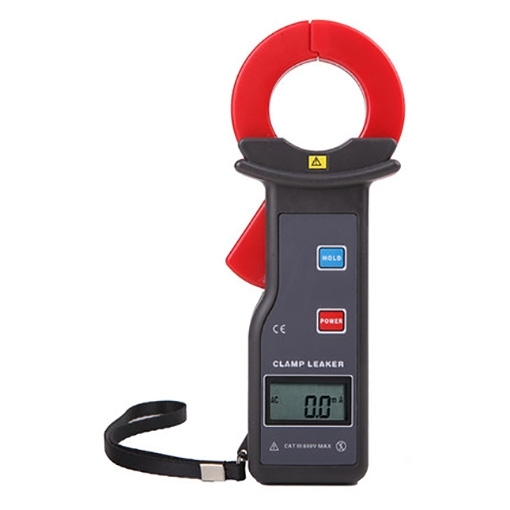

The measuring range of the clamp meter is 0.00mA-60.00A, and the jaw size is Φ25mm. The leakage clamp meter is easy to use, simple to operate, almost intuitive, and is a suitable tool even for novice users. The internal clamp of the leakage meter with a diameter of about 25mm will enable accurate measurements in hard-to-reach places.

Details of Earth Leakage Clamp Meter

Extra large diameter, more practical

Jaw size 25 * 35mm
Opening 25mm, capable of clamping wires with a diameter of 25

Backlit HD screen design

Logo displayed in the upper left corner
Directional current is negative and displays “-“

Specifications

Model	T-ETCR6300
Current Range	0.00mA-60A
Resolution	1uA
Accuracy	±1.5%rdg±5dgt (23℃ ± 3℃ , below 70%RH)
CT Size	25*35mm
Meter Dimensions	175mm×70mm×38mm
Weight	210g
Power Supply	Alkaline battery 6LR61 9V
Working Current	10mA
LCD Size	35mm×21.5mm; display area: 32mm×15mm
Sampling Rate	2 times/second
Communication Interface	Storage data can be uploaded to the computer, and software monitoring.
Data Storage	99 groups, flash display “FULL” symbol indicates storage full
Peak Hold	Peak value capture and hold function, long press HOLD key display peak value.
>Data Hold	Data hold function: “DH” symbol display
Overflow Display	Exceed measure range overflow function: “OL A” symbol display
Polarity Indication	In DC current test auto-identified and display the “-” symbol
Auto Shut Down	5 minutes after powering on, it will power off automatically without any operation to reduce the power consumption.
Battery Voltage	Battery voltage lower than 7.2V will display a low battery voltage symbol, and remind to replace the battery
Working Current	5mA
Line Voltage	Below AC 600V circuit test
Shift	Automatically
Accessories	Meter: 1PCS; Communication cable: 1PCS; Cloth bag: 1PCS

Applications

The earth leakage clamp meter is available with a measuring range of 0.00mA-60A. The clamp ammeter is especially suitable for places with dense wiring (power metering systems, high-speed rail systems, automotive circuit maintenance, etc.), and non-contact current measurements to ensure safe operation. The instrument is small in size, high in precision, stable in performance and perfect in function, and is one of the necessary tools for electrical safety inspection and maintenance.

Tips: How to use a earth leakage clamp meter?
When using a earth leakage clamp meter to detect the current, be sure to clamp a measured wire (wire). If two (parallel wires) are clamped, the current cannot be detected. In addition, when the center (core) of the clamp ammeter is used for detection, the detection error is small. When checking the power consumption of home appliances, it is more convenient to use a line splitter. Some line splitters can amplify the detection current by 10 times, so the current below 1A can be amplified before detection. Use a DC clamp ammeter to detect the DC current (DCA), if the current flows in the opposite direction, it will display a negative number. This function can be used to detect whether the car’s battery is in a charging state or a discharging state.
