Name: Earth Leakage Clamp Tester, 0.00mA-2000.00A
Brand: Tool
SKU: 1357
Availability: InStock

Earth Leakage Clamp Tester, 0.00mA-2000.00A

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

45 People watching this product now!

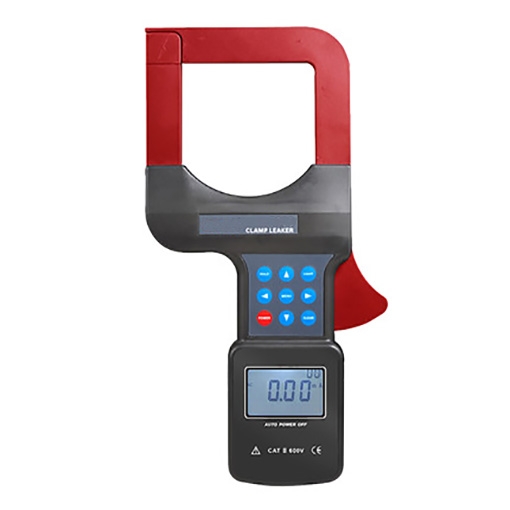

The earth leakage clamp tester equipped with USB interface, communication cable and monitoring software. It can real time monitoring and query history online via the computer, and display dynamically, has the maximum, the minimum and the average value indication, with the alarm value setting and the alarm indication function, has the historical data reading, saves, prints and other functions. The tester also with peak hold, data hold and data storage and other functions, convenient to use, which is an essential tool for electrical safety inspection.

Details:

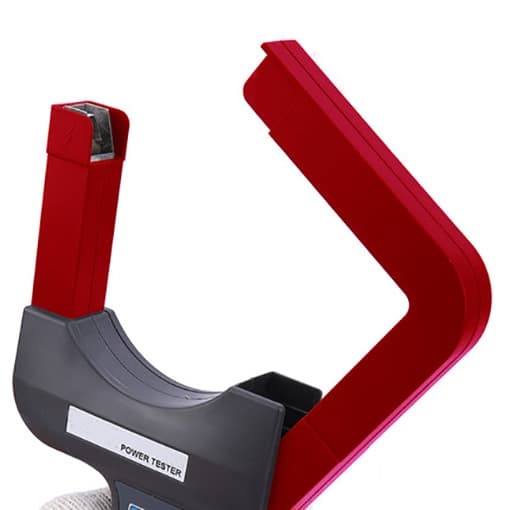

Super large diameter, more practical

Large diameter 80mm×80mm, can clamp 96mm flat wire or flat steel ground wire.
Especially suitable for cable and transformer grounding flat steel leakage detection.

Large display design

Current value display
Data save group number display
AC current identification

Specifications:

Model	T-ETCR6600
Current Range	0.00mA-600A
Resolution	0.1mA
Accuracy	±1.5%rdg±5dgt (23℃ ± 3℃ , below 70%RH)
CT Size	35*40mm
Meter Dimensions	184mm×70mm×38mm
Weight	250g
Power Supply	Alkaline battery 6LR61 9V
LCD Size	35mm×21.5mm; display area: 32mm×15mm
Sampling Rate	2 times/second
Communication Interface	Storage data can be uploaded to the computer, and software monitoring.
Data Storage	99 groups, flash display “FULL” symbol indicates storage full
Peak Hold	Peak value capture and hold function, long press HOLD key display peak value.
Data Hold	Data hold function: “DH” symbol display
Overflow Display	Exceed measure range overflow function: “OL A” symbol display
Polarity Indication	In DC current test auto-identified and display the “-” symbol
Auto Shut Down	5 minutes after powering on, it will power off automatically without any operation to reduce the power consumption.
Battery Voltage	Battery voltage lower than 7.2V will display a low battery voltage symbol, and remind to replace the battery
Working Current	5mA
Line Voltage	Below AC 600V circuit test
Shift	Automatically
Accessories	Meter: 1PCS; Communication cable: 1PCS; Cloth bag: 1PCS

Tisps: What is a clamp current meter?

A clamp meter, often known as a current clamp or clamp-on ammeter, is a specialized electrical test instrument with several key features:

Primary purpose: Its main goal is to measure electrical current in a conductor without requiring physical contact or circuit disconnection. This is particularly useful for quick diagnostics and troubleshooting in both industrial and household settings.
Clamp mechanism: The meter comes with a hinged clamp that can open and close around a wire or conductor. The clamp uses the principle of electromagnetic induction to detect and measure the current.
Display: Once the clamp is in place, the reading appears on a digital or analog display. This gives you immediate insight into the current flowing through the circuit.
Measurement buttons: These buttons allow you to choose between different types of measurements, such as:
- Alternating current (AC)
- Direct current (DC)
- Resistance
- Sometimes even voltage
