Name: Electric Rebar Cutter, 1", 1050W
Brand: Tool
SKU: 209
Availability: InStock

Electric Rebar Cutter, 1″, 1050W

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

56 People watching this product now!

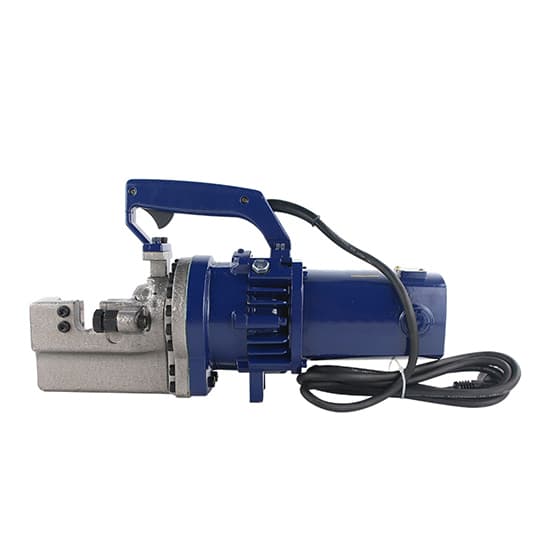

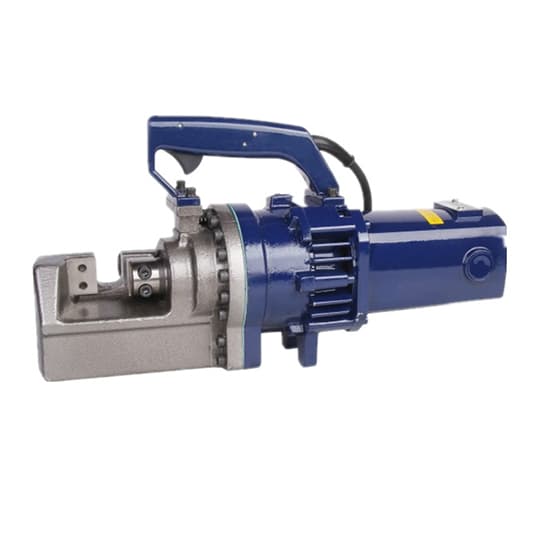

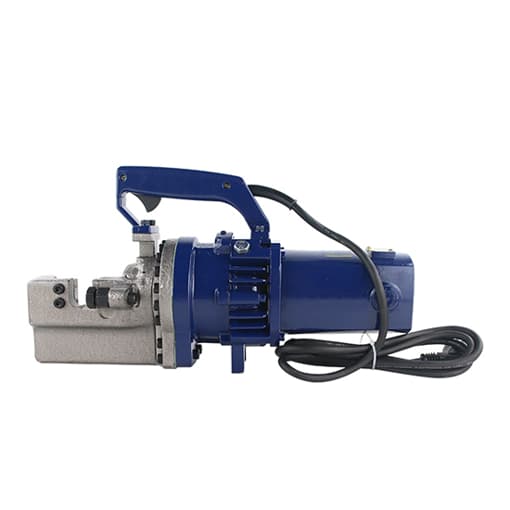

Electric rebar cutter is the best way to cut steel bars such as rebar, round bar, steel rod, iron rod, screw, etc. The portable hand-held rebar cutter is operated by hydraulic system and motor. No sparks, no dust and no odor during the cutting process.

Specification

Model	T-ERCT-RC25
Cutting Range	Ф4-Ф25mm (1/6.35″~1″)
Voltage	110V/60Hz, 220V/50Hz
Output Power	1050W
Machine Length	460mm
Weight	32kg

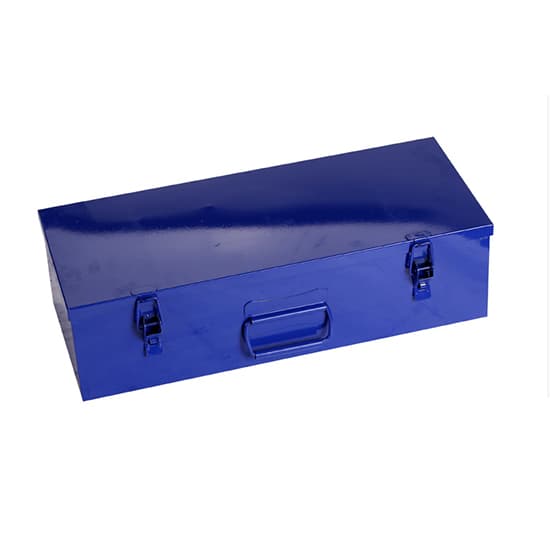

Package	steel case

Inapplicable materials: anchor chain, high hardness round steel, alloy with unknown composition, flat iron, stainless steel, various U-shaped locks.

Electric Rebar Cutter Structure Diagram

Electric Rebar Cutter Standard Configuration

① electric rebar cutter

② hydraulic oil

③ a pair of spare carbon brushes

④ 22-24 open end wrench

⑤ 17-19 open end wrench

⑥ slotted screwdriver

⑦ Allen wrench*3

Tips: How to ensure safety when using electric rebar cutter?

Do not use the electric rebar cutter to cut rebar with diameter and strength exceeding nameplate and red-hot rebar. When cutting multiple rebars at one time, the total cross-sectional area should be within the specified range.
When cutting low-alloy steel bars, replace a high-hardness cutter.
When cutting short steel bars, the distance between hand and cutter should be kept above 150mm. If the part of rebar held by hand is less than 400mm, press the short end of rebar with a sleeve or clamp it with a clamp.
When the electric rebar cutter is running, it is strictly forbidden to directly remove broken ends and debris near the cutter by hand. Non-operators are not allowed to stay around the rebar swing area and the cutter.
If it is found that the electric rebar cutter is running abnormally, there is abnormal noise or cutter is skewed, it should be shut down immediately for maintenance.
