Name: Electric Rebar Cutter, 7/8", 1.6kW
Brand: Tool
SKU: 208
Availability: InStock

Electric Rebar Cutter, 7/8″, 1.6kW

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

36 People watching this product now!

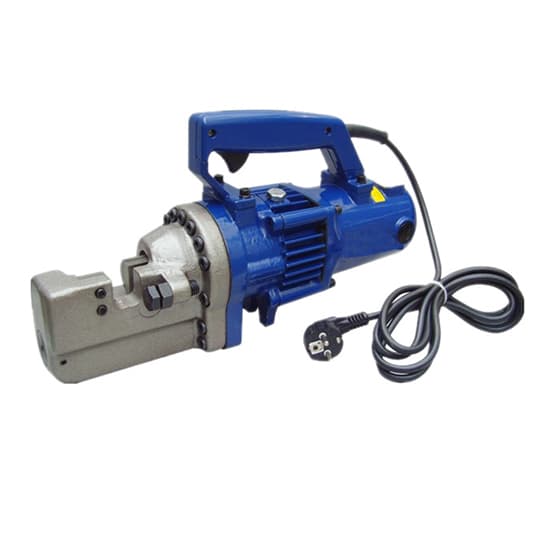

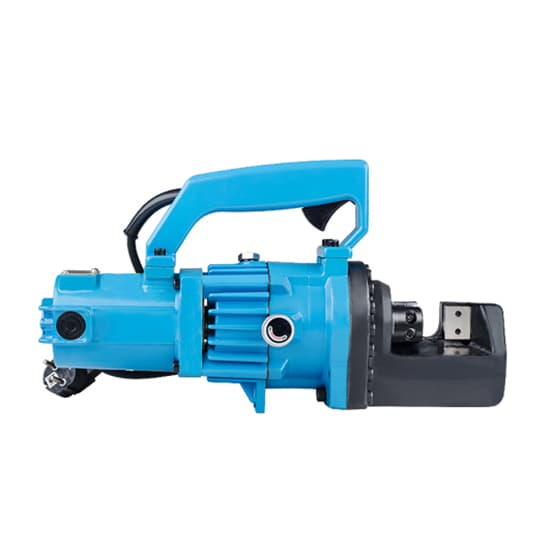

The electric rebar cutter provides the best way to cut rebar, steel bar, round bar, steel rod, iron rod, screw, etc. The portable rebar cutting machine is driven by hydraulic system and 1600W motor. No sparks and dust.

Specification

Model	T-ERCT-RC22
Cutting Range	Ф4-Ф22mm (1/6.35″~7/8″)
Voltage	110V/60Hz, 220V/50Hz
Output Power	1.6kW
Machine Length	550mm
Weight	21.5kg

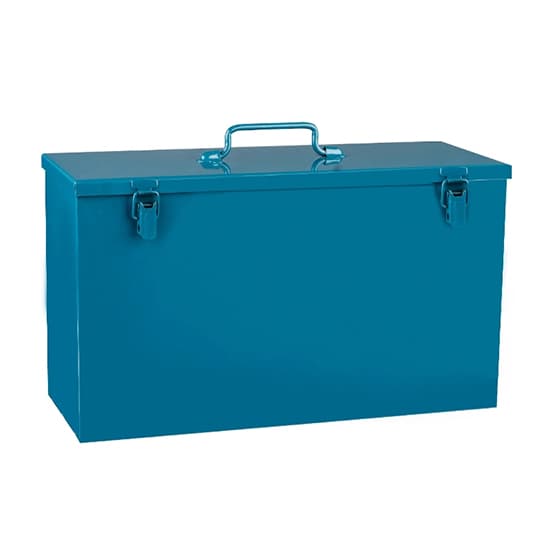

Package	steel case

Inapplicable Materials: anchor chain, high hardness round steel, alloy with unknown composition, flat iron, stainless steel, various U-shaped locks.

Electric Rebar Cutter Structure Diagram

Electric Rebar Cutter Standard Configuration

① electric rebar cutter

② hydraulic oil

③ open end wrench

④spare screw for blade

⑤ Allen wrench

Tips: Electric rebar cutter usage guide.

Surface of rebar workbench should be kept level with the lower part of cutter. The length of the workbench can be determined according to the length of the processed rebar.
Before starting the electric rebar cutter, check and confirm that the cutter has no cracks, tool holder bolts are fastened, and protective cover is firm. Then check the gear meshing gap and adjust cutter gap.
After starting the electric rebar cutter, make rebar cutter to operate without load for a period of time. After confirming that all transmission parts and bearings are operating normally, start cutting off.
When the electric rebar cutter does not reach the normal speed, it must not start to cut. When cutting, use the middle and lower parts of cutter, hold rebar firmly, align the cutting edge, and cut quickly. Operator should stand on the side of the fixed blade and press rebar strongly to prevent the end of rebar from popping out and hurting people. It is strictly forbidden to hold rebar on both sides of the blade with both hands and leaning over to feed material.
