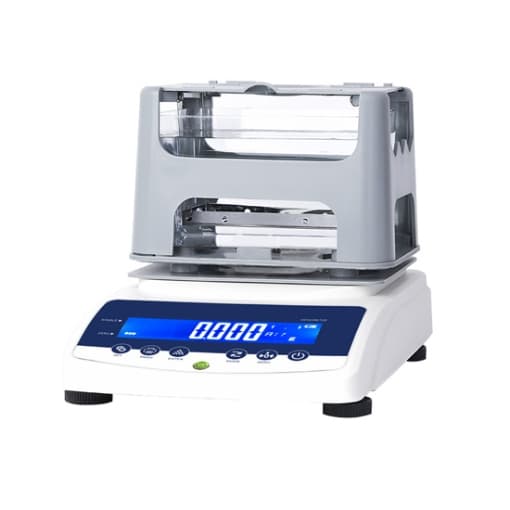

Name: Electronic Solid Density Meter for Plastic/Rubber Testing
Brand: Tool
SKU: 1377
Availability: InStock

Electronic Solid Density Meter for Plastic/Rubber Testing

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

41 People watching this product now!

The electronic solid density meter is widely used in the rubber and plastic, wire and cable, oil-impregnated bearings, composite materials, cosmetics, shoe materials, glass, hardware, and powder metallurgy industries.

Feature

Capable of measuring irregular solid materials, such as blocks, granules, films, and floating objects.
Four compensation settings: Water temperature adjustment, measurement medium density, waterproof medium handling, and density upper/lower limit settings.
Solid densities >1 or <1 can be tested.
Offers two parameter settings: Solid density and density upper/lower limits.
Equipped with an RS-232 interface for connection to a printer or PC.

Specification

Model	T-SDM-300G	T-SDM-600G
Weighing Range	0.01-300g	0.01-600g
Density Accuracy	0.001g/cm3
Measuring Time	5 seconds
Display Value	Non-Absorbent Products: Density, volume, volume percentage.
	Absorbent Products: Apparent density, bulk density, wet density, total porosity, effective porosity, open pore volume, total volume, water absorption rate.
Measuring Principle	Archimedean Principle
Output Port	RS-232 Interface
Sensor	German HBM Sensor
Power Supply	Internal Battery

Electronic Solid Density Meter User Manual

Electronic Solid Density Meter for Plastic/Rubber Testing User Manual.pdf

Product Details

Accessories

Tips: How to Use a Solid Density Meter

Set Up the Device
- Connect the density meter to a power source and calibrate it using the standard weights provided.
- Adjust the parameters such as water temperature, measurement medium density, and density limits if needed.
Measure the Solid in Air
- Place the solid sample on the measurement platform.
- Record its weight in air by following the device instructions.
Measure the Solid in Liquid
- Fully submerge the sample in the liquid (e.g., water) using the hanging accessory or holder.
- Record its weight in liquid as instructed by the meter.
View and Save Results
- The meter calculates and displays the density automatically.
- Use the RS-232 interface to connect to a printer or PC for data recording if needed.
