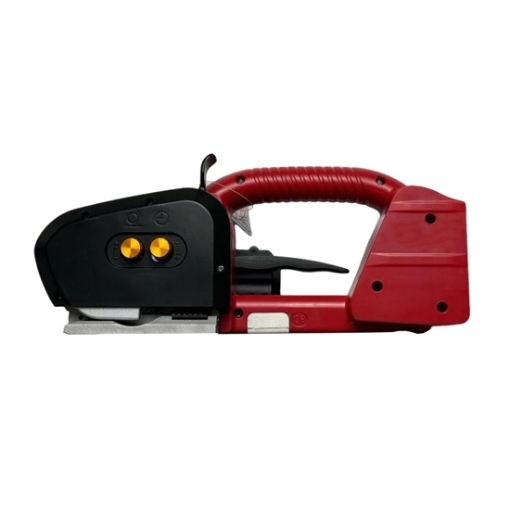

Electronic banding tool available for online purchase. This semi-automatic tool offers a tension range of 0-2800N, efficiently handling the tensioning, welding, and cutting of plastic (PP/PET) straps. The battery-powered banding tool can secure 800-1000 straps on a full charge, providing reliable performance for various strapping needs.
Specifications
- Model: T-BT-PSE16
- Working Mode: Semi-auto
- Power: Lithium Battery (DC14.4V, 6000mAh)
- Strap Tension: 0-2800N
- Joint: Friction Welding
- Strapping Width: 9-16mm
- Strapping Thickness: 0.5mm-1.5mm
- Strap Material: PP/PET
- Battery life: 2000 times
- Battery Charging Time: about 45min
- Weight: 3.44kg (Incl. Battery)
- Dimension: 370mmx140mmx120mm
Dimension (Unit: mm)
Applications
Tips: What is Friction Welding in a Banding Tool?
Friction welding in a banding tool is a technique used to fuse strap ends by generating heat through friction. Commonly found in battery-powered or pneumatic banding tools, this process works by rapidly rubbing the strap ends together, creating heat that softens and melts the material. Once sufficiently heated, the tool applies pressure to join the ends, forming a secure, durable bond as the material cools and solidifies. This efficient method provides a consistent, reliable seal without needing extra fasteners or seals.
