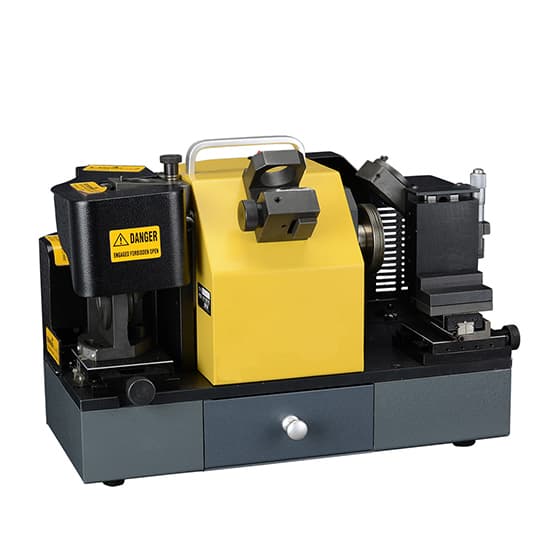

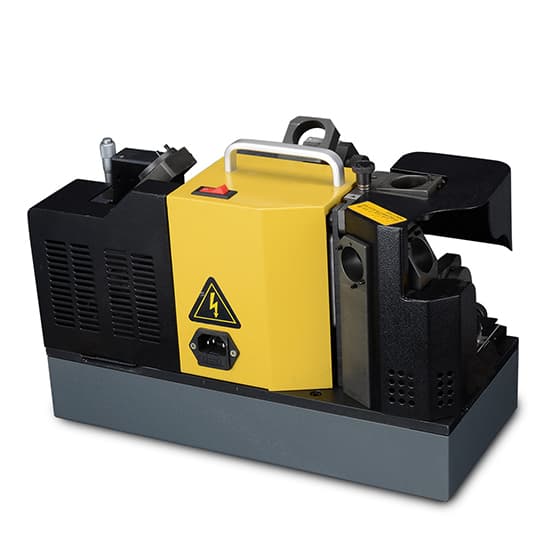

The end mill sharpener is a portable machine for grinding and sharpening end mill cutters. It is also a tool used in resharpening and regrinding. End mill sharpener has a front grinding shelf and R round angle grinding shelf, equipped with fixture attachment.

Specification

Model	T-MCG-X6R
Grinding Range	Ф4mm-Ф14mm (Ф20mm)
Grinding Radius	R0.5, R1 or R1.5, R2 or R0.3, R0.5, R0.8, R1
Rated Voltage	220V 50/60Hz
Motor Power	160W
Rotation Speed	4,400 rpm
Grinding Wheel	CBN (for high speed steel), SDC (for tungsten steel)
Fixture Attachments	6 collets (Φ4, Φ6, Φ8, Φ10, Φ12, Φ14)
Certification	CE
Warranty	1 year
Overall Dimension	412430cm
Weight	22kg

Features

The end mill sharpener is designed for grinding the R-angle of corner radius mill cutter, as well as end mill. Also can open cutting edge of tungsten bar directly.
The front grinding shelf is used to grind 2-flute, 3-flute and 4-flute end mill, point angle is adjustable, and grinding amount is adjustable.
R round angle grinding shelf is used to grind special angle of corner radius mill cutter, the effect is remarkable.

End Mill Sharpener Structure Diagram

End Mill Sharpener Effect Diagram

End Mill Sharpener Packing List

End mill sharpener grinder T-MCG-X6R*1

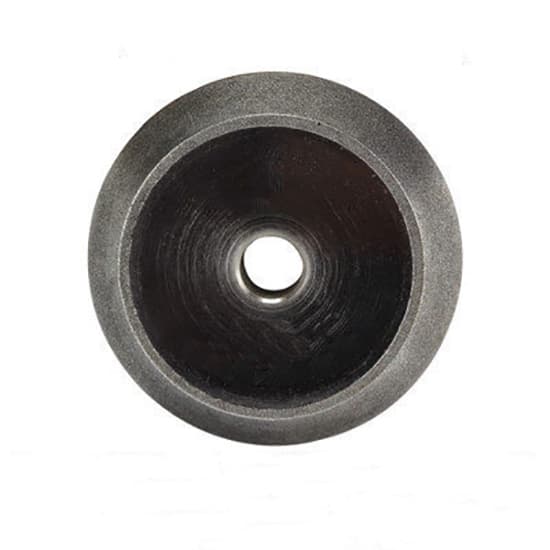

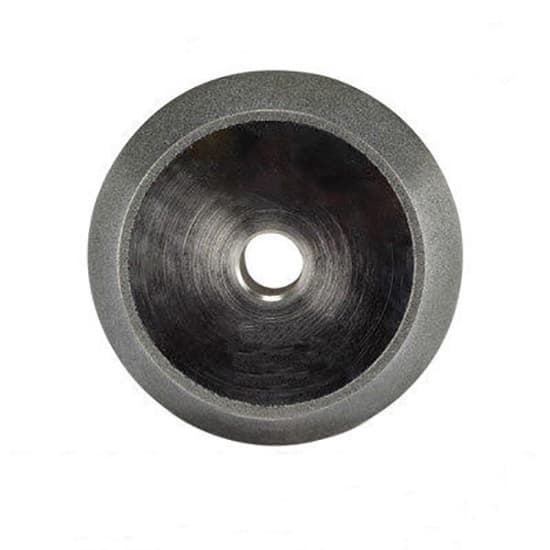

SDC/CBN grinding wheel*2
Fixture ER20 collet*6
Small Allen wrench*3 (3, 4, 5mm)
Fixture Chuck set*2

Tips: End mill sharpener functions.

Generally, end mill sharpener can grind generic end mills such as 2-flute, 3- flute, 4- flute, 6- flute (above φ12mm), etc. Tungsten rods can also be used to cut the edge directly.
End mill sharpener has the characteristics of precise and fast grinding. Simple operation, and easy grinding without skills.
If the end mill sharpener is equipped with a diamond grinding wheel, it only need one grinding wheel can complete all the processes.
Select different grinding wheels according to milling cutter materials to achieve perfect repairing. CBN grinding high-speed steel material, SDC grinding alloy tungsten steel material, remember not to select a wrong one.
According to the milling cutter to be ground, choose the collet suitable for different milling cutter standard diameters. With a suitable chuck set, put it into milling cutter grinding seat to start grinding.
